Barco MDSC-2326 MNA 26" Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Delivery in 4-12 weeks time

  • SW10299
Full HD surgical display with a built-in MNA For the best hand-eye... more
Product information "Barco MDSC-2326 MNA 26" Surgical Monitor"

Full HD surgical display with a built-in MNA

  • For the best hand-eye coordination
  • Allows for easy cleaning and disinfection
  • Works with Nexxis for video-over-IP integration
  • Built-in MNA

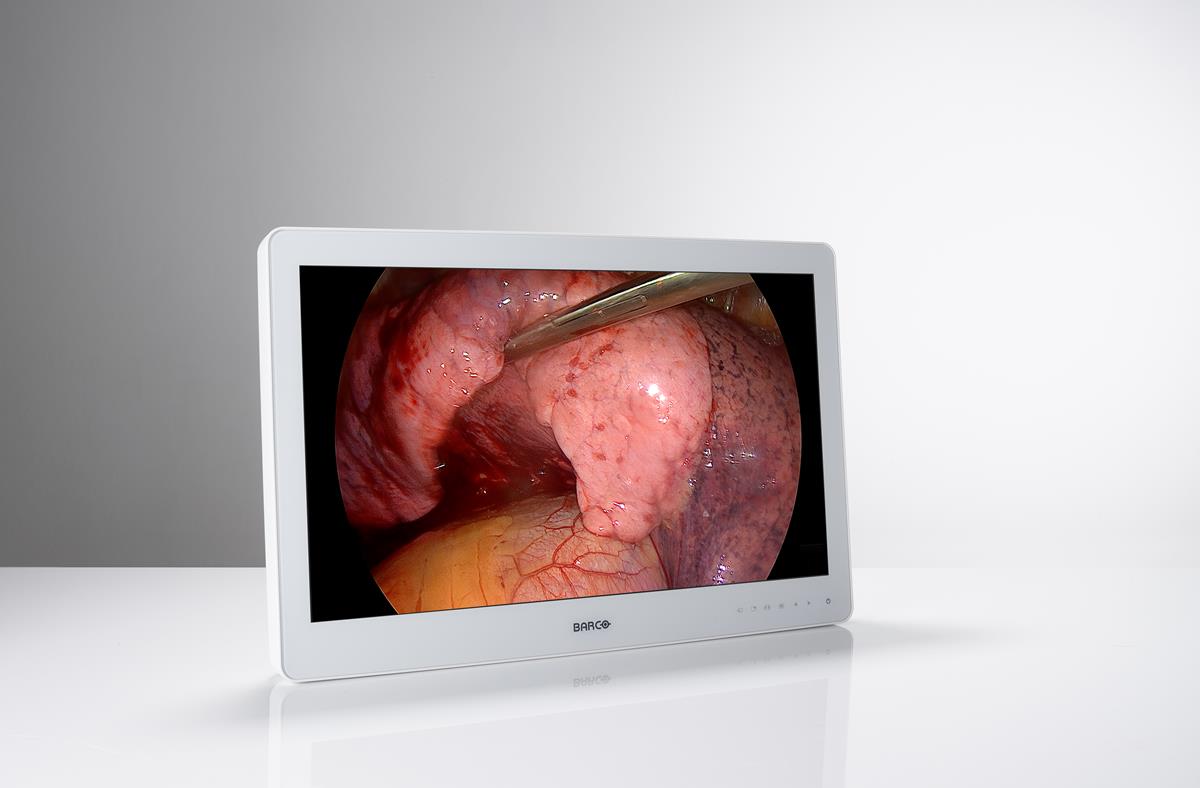

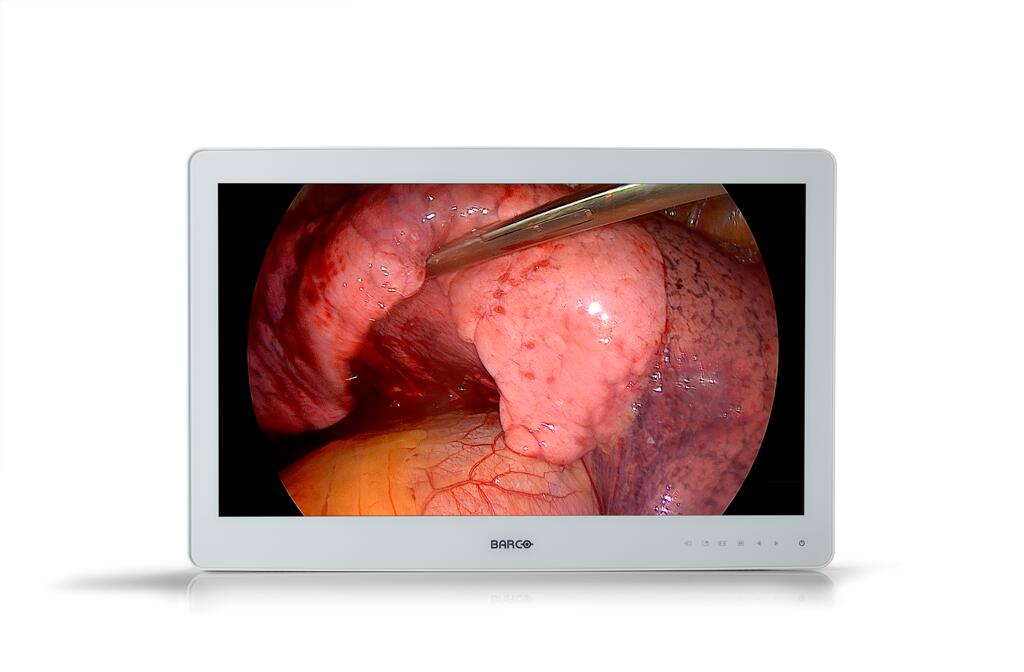

Barco’s MDSC-2326 is a 26-inch, near-patient surgical display with LED backlight. Next to the renowned image quality of the MDSC-2226, the new scratch-resistant, high quality optical glass offers durable protection throughout the display's lifetime.

Ease of mind

Calibrated, artifact-free images

The display’s stabilized brightness, high contrast and calibrated colors provide surgeons with excellent depth perception and the most accurate images from FHD endoscopy camera systems.

Multi-source, multi-display imaging

With its broad input connectivity, the MDSC-2326 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms. Featuring an integrated Barco Nexxis decoder (optional) it offers the most convenient visualization solution for uncompressed video-over-IP without delay.

Safety, stability and redundancy

Thanks to its LED backlight with light output stabilization, the display ensures lifetime-long performances and image consistency. It also offers a unique, automated failover feature so a backup signal is always available to ensure safe surgery

Ease of installation

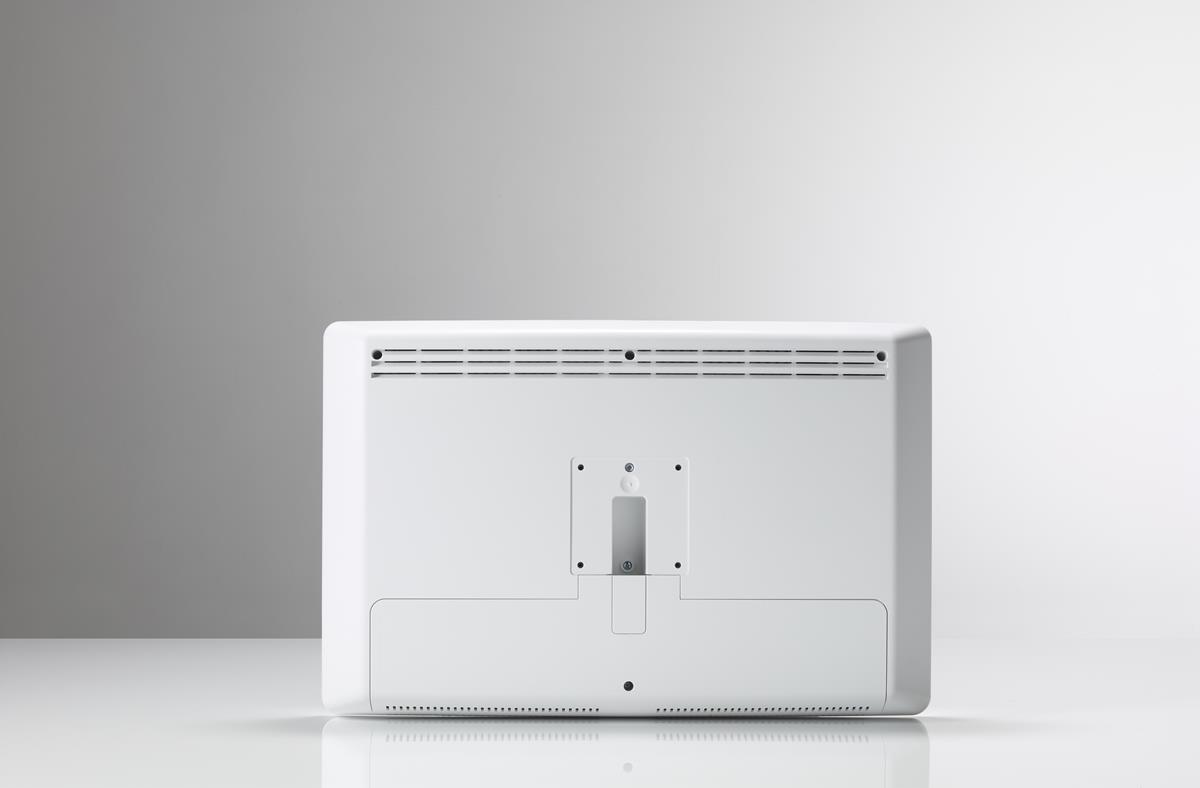

The MDSC-2326 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.

Ease of use

Barco’s MDSC-2326 allows for easy cleaning and disinfection thanks to its smooth surface, splash-proof housing (front protection level IP45). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance.


Barco's MDSC-2326 features:

  • 26” wide-screen LCD
  • Full HD resolution (1,920 x 1,080)
  • High-bright LED backlight with output stabilization
  • Wide viewing angle thanks to IPS-Pro LCD technology
  • 10-bit image processing
  • Artifact-free images
  • Calibrated, consistent colors and grayscales
  • Easy-clean design with sealed front (IPX5)
  • Smart cable management system
Related links to "Barco MDSC-2326 MNA 26" Surgical Monitor"
Available downloads:
Screen technology TFT AM LCD Active screen size (diagonal) 661 mm (26.0")... more
Specifications "Barco MDSC-2326 MNA 26" Surgical Monitor"
Screen technology TFT AM LCD
Active screen size (diagonal) 661 mm (26.0")
Active screen size (H x V) 576 x 324 mm (22.7” x 12.8")
Aspect ratio 16:9
Resolution 2MP (1920 x 1080)
Pixel pitch 0.300 mm
Color support 1073 million (10-bit)
Viewing angle 178° (panel typical)
Maximum luminance 500 cd/m² (panel typical)
400 cd/m² 'stabilized @6500K & ITU-709
Contrast ratio 1400:1 (panel typical)
Response time (Tr + Tf) 18 ms (typical)
Housing color White RAL 9003
Video inputs

DVI-I (Digital & Analog – HDMI support)
3G-SDI(1x BNC)
DisplayPort 1.1a
Component Video RGBS / YPbPr (4xBNC)
S-video (4-pin Mini DIN)
Composite video / SOG (1xBNC)
1x Fiber Optic SFP+ (for uncompressed video over IP)

Video outputs DVI-D
S-video (4-pin Mini DIN)
Composite video (1x BNC)
Power requirements (nominal) Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch
Power source for display power input: +24 VDC / 2.5A
Power consumption 75W max (MNA version)
Power management DVI-DMPM states supported
Power On state
Active-Off state
Dot clock 165 MHz max (DVI)
Gamma curve Native, 1.8, 2.0, 2.2, 2.4, DICOM
OSD languages English, French, German, Spanish, Italian
Dimensions w/o stand (W x H x D) 640 x 419 x 87 mm (25.2 x 16.5 x 3.4”)
Dimensions power supply (W x H x D) 210 x 103 x 52 mm (8.27 x 4.06 x 2.05")
Net weight w/o stand 9.8 kg (21.6 lbs! (MNA version)
Net weight power supply 1.5 kg (3.31 lbs)
Net weight packaged w/o stand 12.9 kg (28.4 lbs) (MNA version)
Power supply DC output cable length 2.5 m (8.2 ft)
Mounting standard VESA (100 x 100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities Endoscopy, Laparoscopy, PACS, PM, US, CT, MR
Certifications CE (Medical Device Class I)
ANSI/AAMI ES 60601-1:2005; A1:2012 – Med. El. Equip., Part 1: general req. for basic safety and essential performance
CAN/CSA-C22.2 No. 60601-1: 2014 Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance (Adopted IEC 60601-1:2005, third edition, 2005-12)
IEC 60601-1: 2005 + CORR. 1:2006 + CORR. 2:2007 + A1:2012 (Medical electrical equipment – Part 1: General requirements for basic safety and essential performance)
EN 60601-1: 2006 + A1:2013 + A12:2014 (Medical electrical equipment”. Part 1: General requirements for safety)
Supplied accessories 1x DVI-D video cable
1x printed User Guide (English)
1x documentation disc, containing all translations of the User Guide
1x external power supply
4 screws, 4 dented washers and an Allen key
Mains cables
Warranty 3 years
Operating temperature 10 ~ 35°C for performance / 0 ~ 40°C for safety
Storage temperature -20 ~ +60°C
Operating humidity 10 ~ 90% (non-condensing)
Storage humidity 10 ~ 90% (non-condensing)
Operating altitude 3000 m max
Storage altitude 12000 m max
