MDSC-8527 SSTF

Price on request. Please sign up here first.

Ready to ship today,
Delivery time appr. 1-3 workdays

  • SW10342
New Item in Shop! Sale Price £2495 £2000 off the list price. Limited Quantity. 7 Day... more
Product information "MDSC-8527 SSTF"

New Item in Shop! Sale Price £2495

£2000 off the list price. Limited Quantity. 7 Day lead time for delivery.

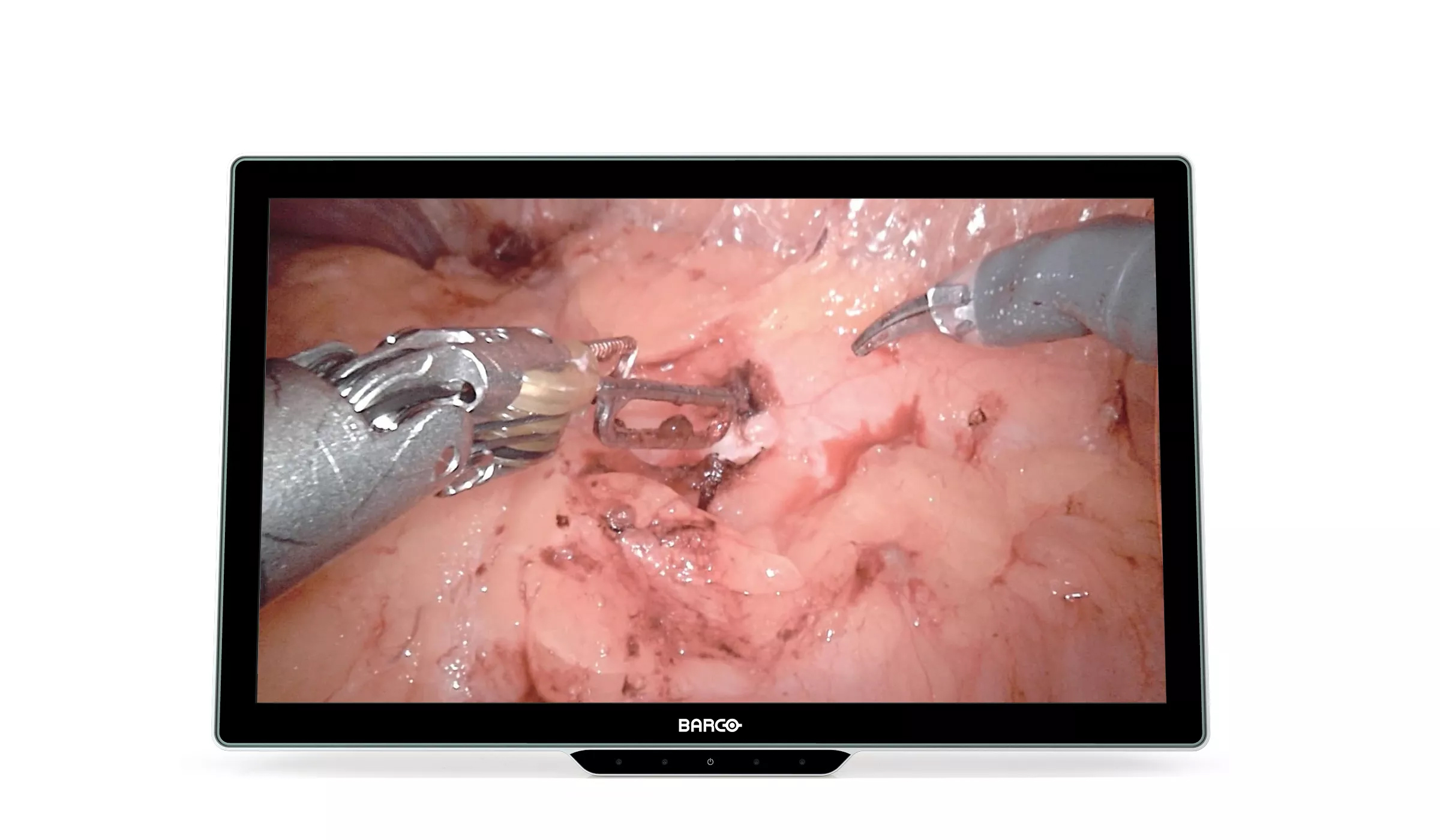

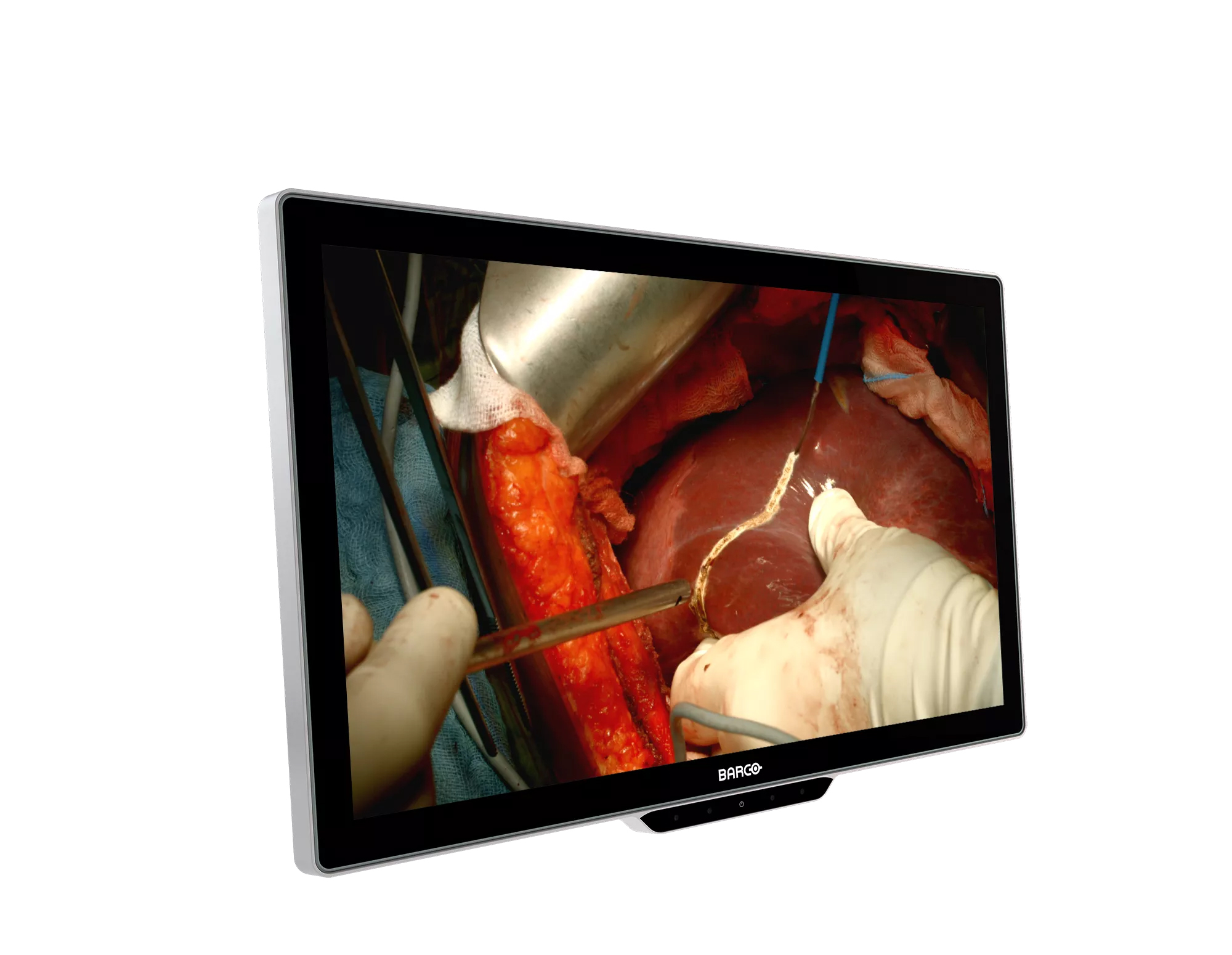

MDSC‑8527 SSTF

4K UHD surgical display

See more with surgical 4K precision, with our 27”, A-ecolabel endoscopic and surgical display. This 4K UHD display offers exceptional brightness, crisp contrast, and vivid color video images, important where morphology is inconspicuous or recessed.

  • Optimized for endoscopy and surgical imaging
  • Bright and crisp color video images
  • Billions of true-to-life colors
  • Accurate color-calibration
  • Fast power on and automatic failover
  • ‘A’ ecolabel for a sustainable choice

Uncompromising image quality

See more subtle differences with the MDSC-8527’s 4K resolution. The wide color gamut and Barco’s industry-leading calibration provide a full range of true-to-life colors. And ultra-low latency ensures real-time feedback for perfect hand-eye coordination.

Fast and efficient

The MDSC-8527 is low in weight and slim in design. Its dual user interface – there is one at the front and one at the back – accommodates individual user preferences. The display is fast to power-up, low in energy consumption, and features an automatic failover.

Easily set up and change the display's layout configurations to fit your procedure. And increase efficiency with customizable shortcut buttons.

User centric design

The slim lightweight modern design features an optimized full-front glass design with bezel protection on all sides safeguards against damage by surgical lights and IV poles. It also protects the display from surgical fluids and contaminants.

The fanless design (SSTF version) and intelligent cable cover support infection control, disinfection, and cleaning.

It is fast to power-up and features an automatic failover. A dual interface design (front and back) accomodates individuals user preference while customizable shortcuts enable faster user interactions.

The MDSC-8527 is approved for use in the vicinity of patients and includes an automated failover method.

The MDSC-8527 comes with a 3-year warranty and the possibility to extend this to 5, with our EssentialCare package.

'A' ecolabel for MDSC-8527

The MDSC-8527 has been subjected to Barco’s ecoscoring protocol and has received the A label. To the score contributed the display's energy efficiency and its optimized packaging design, which includes a high degree of recycled content, uses no non-recyclable materials and is in itself recyclable.

Related links to "MDSC-8527 SSTF"
Technical Specifications Screen Technology TFT AM LCD / LED backlight Active... more
Specifications "MDSC-8527 SSTF"

Technical Specifications

Screen Technology TFT AM LCD / LED backlight
Active Screen Size (diagonal) 27” (684 mm)
Active screen size (H x V) 596 x 335 mm
Aspect Ratio 16:9
Brightness

Native: 800 cd/m² (typical) Default setting: 550 cd/ m² stabilized @6500K & Native color space

Resolution 3840 x 2160 pixels
Pixel Pitch 0.155 mm

Colour Support

1 billion (10 bit color depth)
Colout Gamut Native: 88% NTSC
Colour Calibration ITU-709, DCI-P3, BT.2020 (BT.2020 reproducible colors are within the limit of the LCD panel)
Viewing Angle 178° Hor / 178° Ver
Contrast Ratio 1000:1 (Typical)
Response Time Ton + Toff = 16 msec (typical)
White Point Calibrated: 5600K, 6500K, 7600K, 9300K
Electro-Optical Transfer Function (ETOF) Native, 1.8, 2.0, 2.2, 2.4, Video1, Video2, DICOM (review level)
Front Protection Screen 2-side anti-reflective alkali-aluminosilicate glass with anti-fingerprint coating
Keyboard

Front: 5-key capacitive touch -user programmable Rear: 5-key membrane

Video Inputs

4K-UHD input:

  • 1x DP 1.2 SST / MST up to 3840 x 2160 @ 50/60 Hz (user configurable)
  • 2x HDMI 2.0 up to 3840 x 2160 @ 50/60 Hz

FHD input (upscaled to UHD):

  • 1x DVI
  • 1x 3G-SDI;
  • Note: DP, HDMI and DVI all support HDCP 1.4
Video Outputs 1x DP 1.2 SST (main input copy), 1x 3G-SDI (loop-through)
Other Connectivity

USB-A (Field FW update with USB stick)
USB-B (remote control serial protocol)

Features

User-programmable function keys, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation,
Zoom, Pan, Failover mode, User profiles, High quality upscaling from SD / FHD input to UHD, FW
upload from memory stick

 Power Consumption

Max. 90W / 25V ± 10%

External Power Supply

AC input: 100 – 240 VAC / 47-63 Hz auto-switch
DC output: +25 VDC / 8 A
Dimensions: 204 x 81 x 43 mm (8.0 x 3.2 x 1.7”)
Weight: 1.15 kg (2.54 lbs)

 DC Power Output  DP connector: +3.3 V / 500 mA, USB connector: +5 V / 1 A
 Operating Temperature  0°C to 35 °C for performance, 0 °C to 40 °C for safety
 Protection Rating  IP21 (IP45 front side only)
 Warranty  3 Years
 Certifications

Approvals/Marking:

  • CE (Medical Device Class I), c-UL-us, DEMKO, CCC, BIS, INMETRO
  • Green compliance: ROHS-3, REACH, WEEE
  • ANSI/AAMI ES 60601-1:2005/(R)2012
  • CAN/CSA-C22.2 No. 60601-1: 14
  • IEC 60601-1: 2012 Edition 3.1
  • EN 60601-1: 2006 + A1:2013 + A12:2014
  • IEC 60601-1-2: 2014 + A1:2020
  • EN 60601-1-2: 2015 + A1:2021
  • FCC CFR 47 Part 15 Subpart B (Class B)
  • ICES-003 (Class B)
  • GB17625.1-2012; GB4943.1-2011; GB/T9254-2008
  • IS 13252(Part 1):2010/ IEC 60950-1 : 2005
  • UL 60950-1, 2nd Edition (to make the equivalence with NOM-019)
  • ABNT NBR IEC 60601-1:2010 + Emenda 1:2016
  • ABNT NBR IEC 60601-1-2:2017
  • ABNT NBR IEC 60601-1-6:2011 + Emenda 1:2020
  • ABNT NBR IEC 60601-1-9:2010 + Emenda 1:2014
