- Order number: SW10357

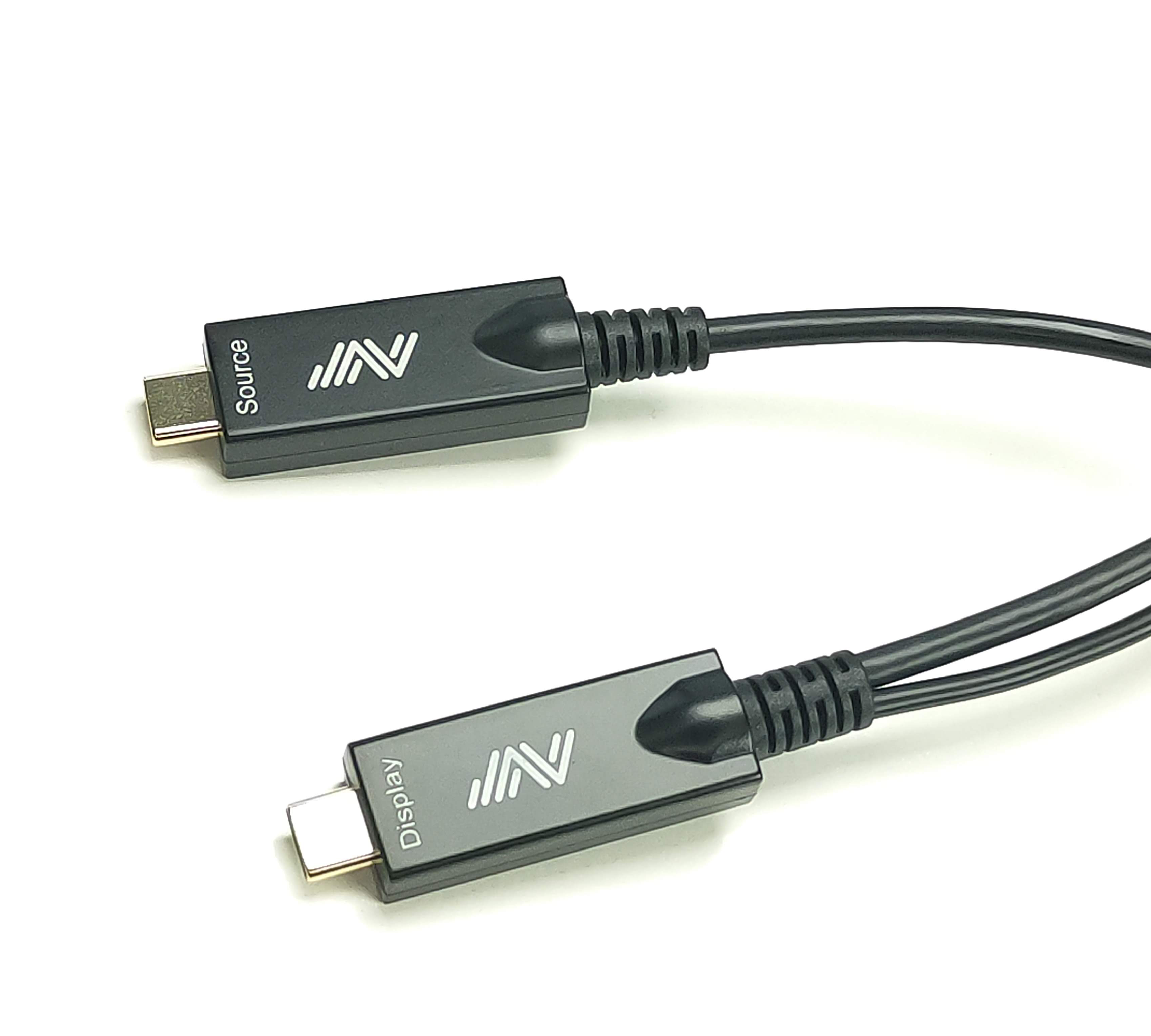

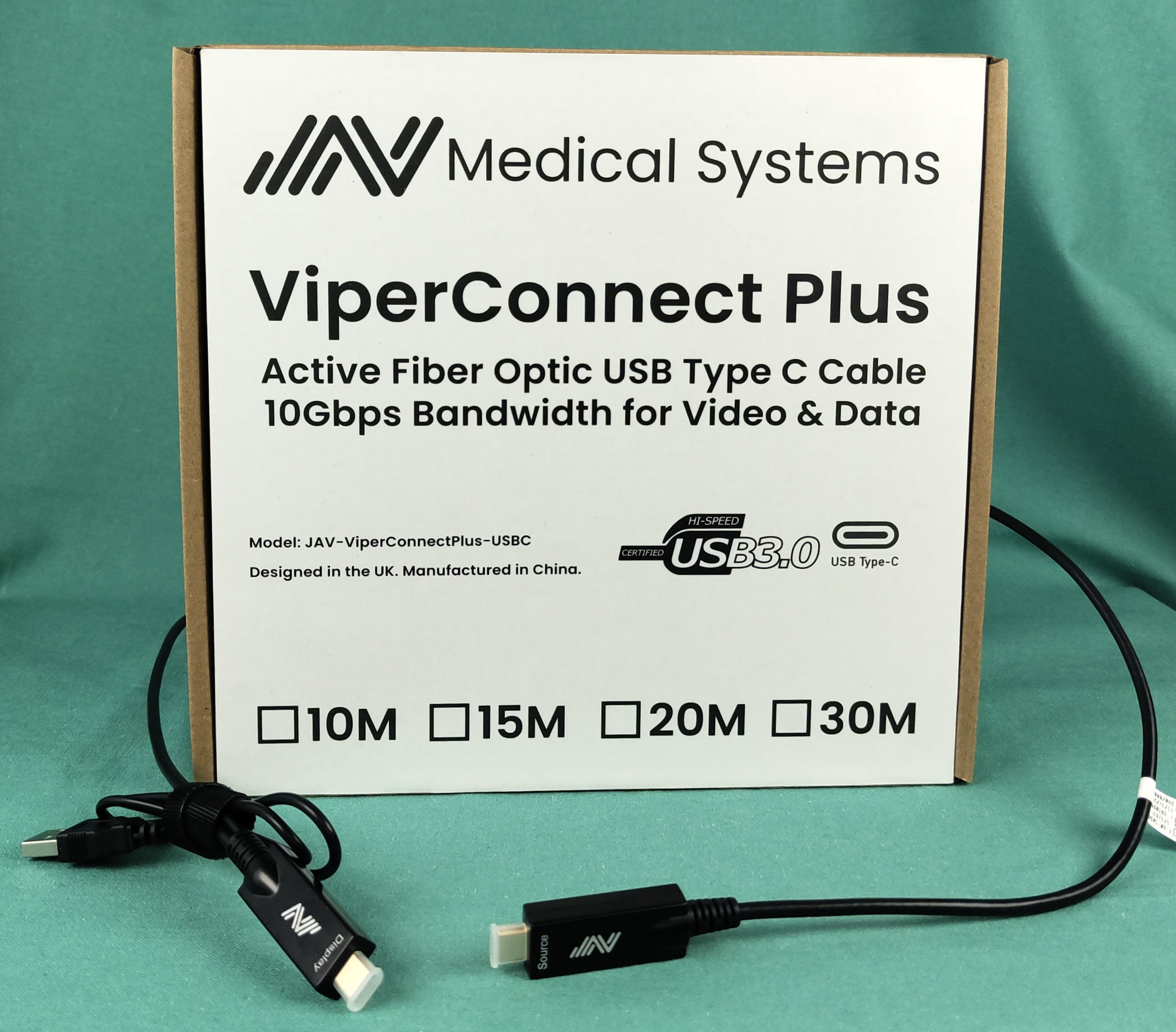

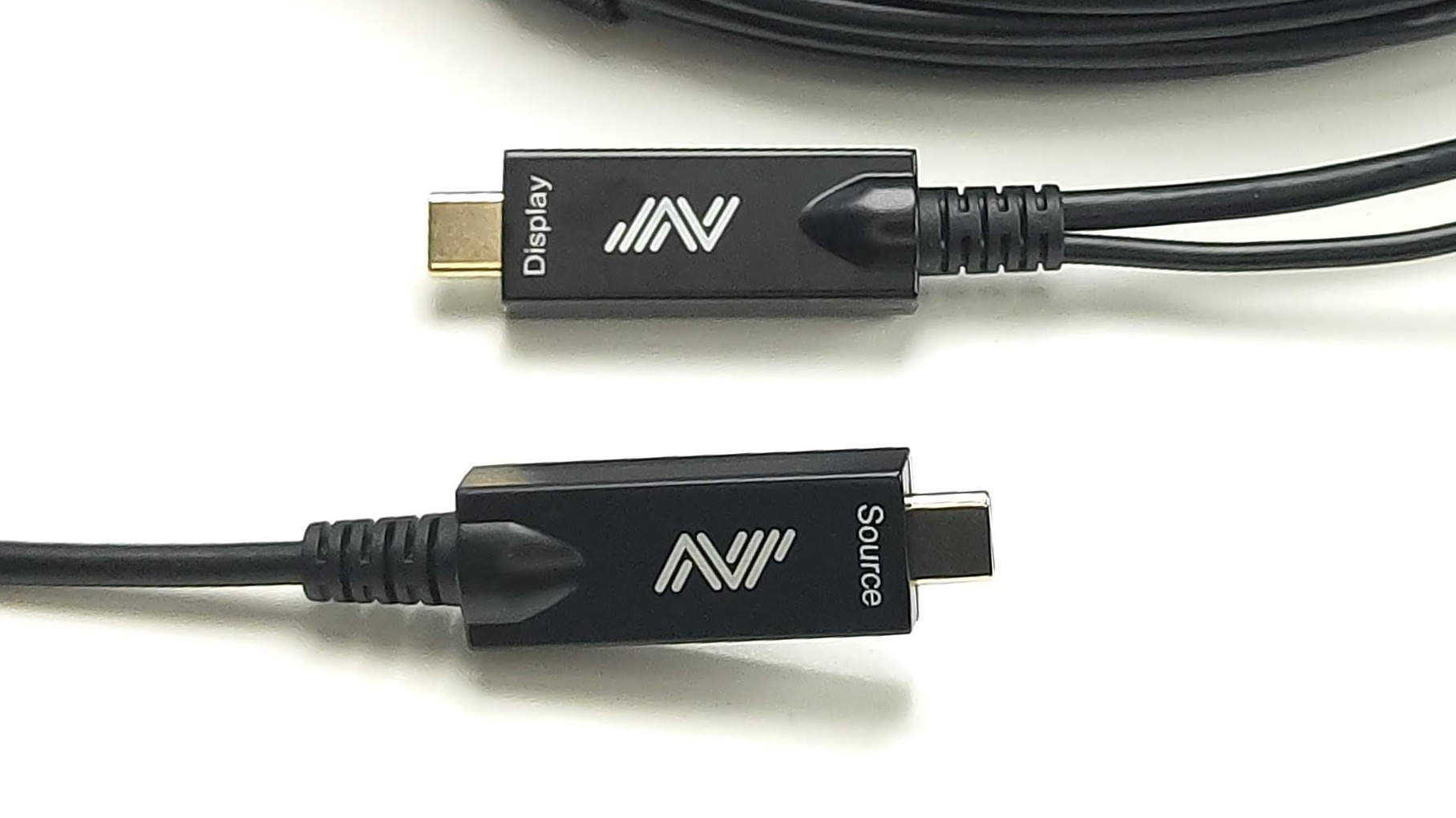

JAV ViperConnect Plus Active Optical USB-C Cable 30m
USB type-C active optical cable (AOC) using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit USB3.2 Gen2 and 2-lane DP1.4 with excellent signal quality. Compared with the traditional copper wire, it is softer, slimmer, lighter and with perfect EMI/EMC feature. And it also has better reliability performance than copper wire.
- Supports USB 3.2 Gen2x1 10Gbps
- Does Not support USB 2.0/1.1
- Supports DP 1.4 2-lane at 4K@30Hz and 16.2Gbps
- Plug and play without driver dependency
- High reliability
- Thinner, lighter and softer than conventional copper cable
- Highly resistant to EMI and RFI
- Does Not support PD (Power Delivery)
- Supports maximum length up to 30m
| Item | Description |
| Cable Length | Up to 30m |
| Interface | USB type-C plug – USB type-C plug |
| Bandwidth | U3:10Gbps; DP1.4 16.2Gbps |
| Power Delivery | Not available |
| Power Supply | By Vconn (3.0 V to 5.5V) |
| Power Consumption (TYP.) | 1100mW (5V input) |
| Cable Outer Diameter | 4.5mm |
| Jacket Outer Material | TPE |
| Cable Filler | Kevlar |
| Cable Weight | See packing details sheet |
| Cable Color | Black or custom |
| Bend Radius | 10OD |
| Tensile Strength | 200N |
