- Order number: SW10332

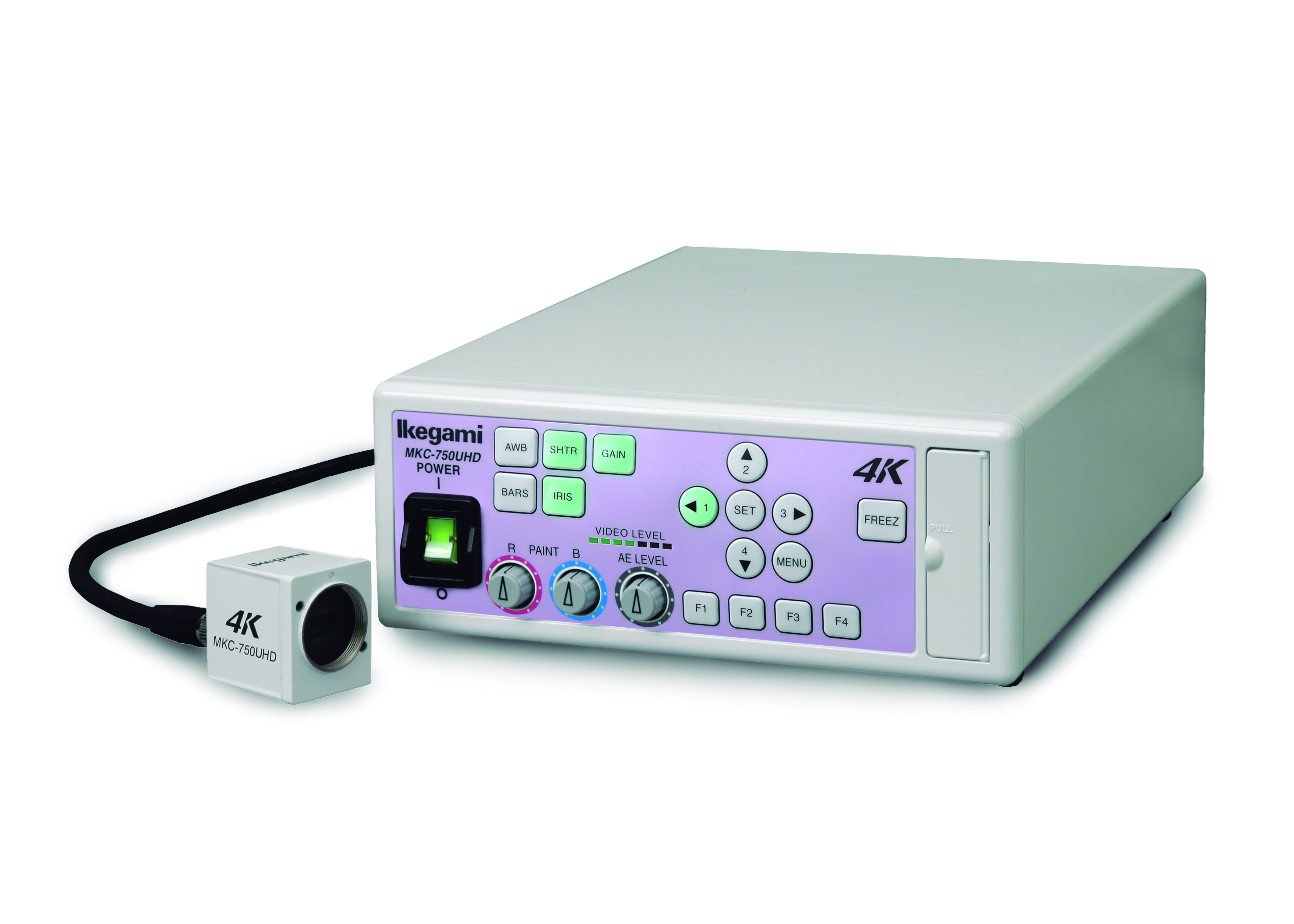

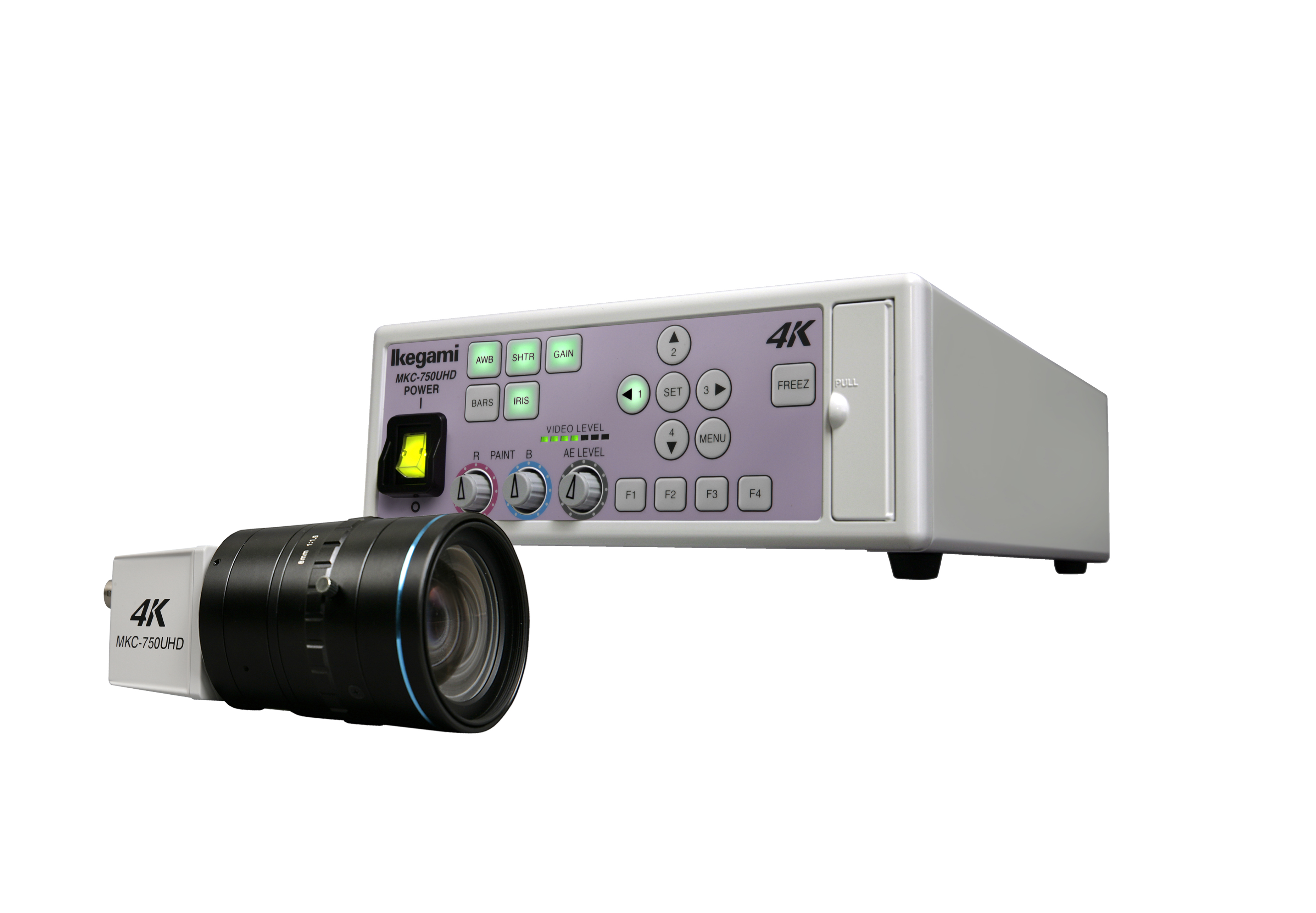

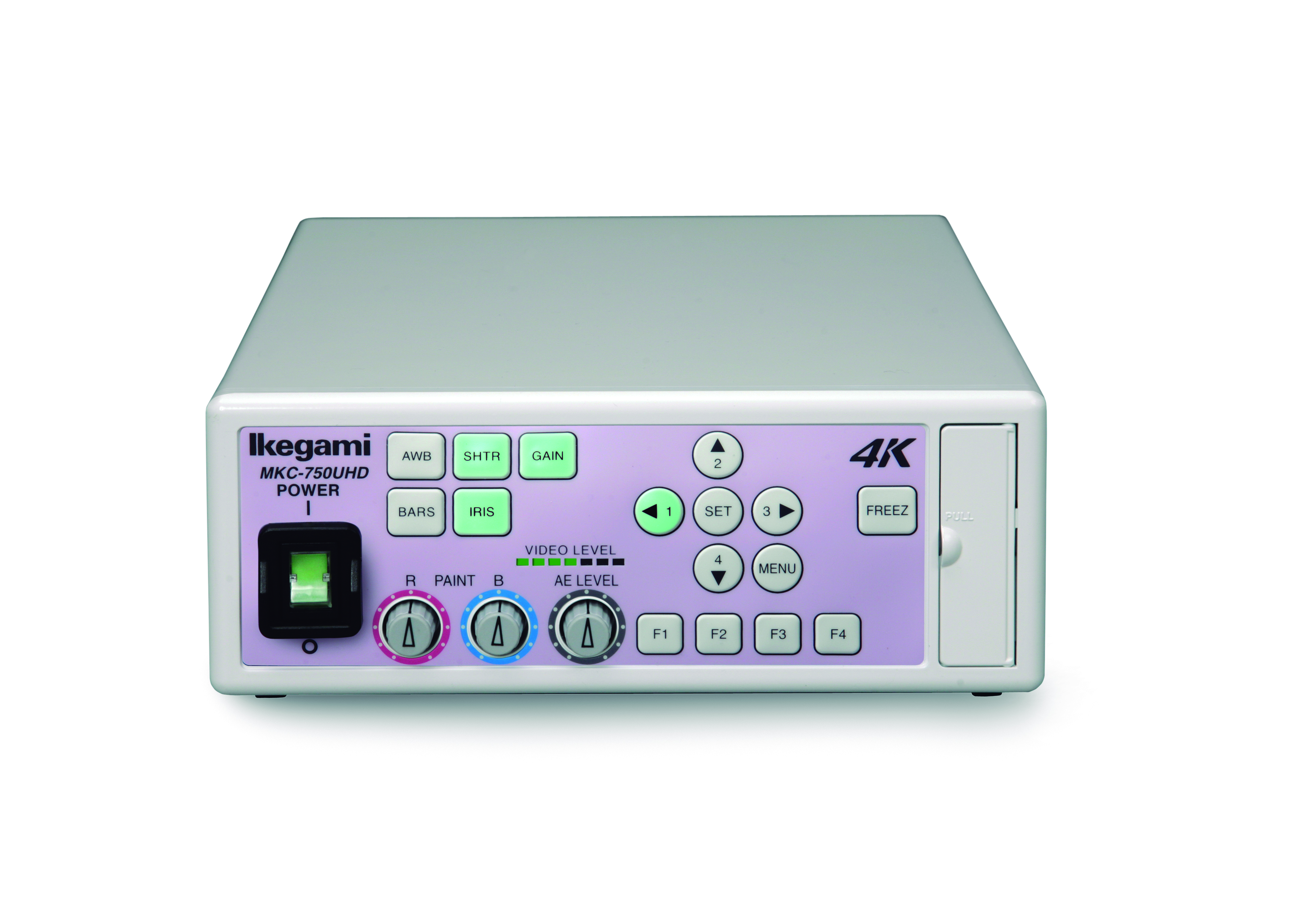

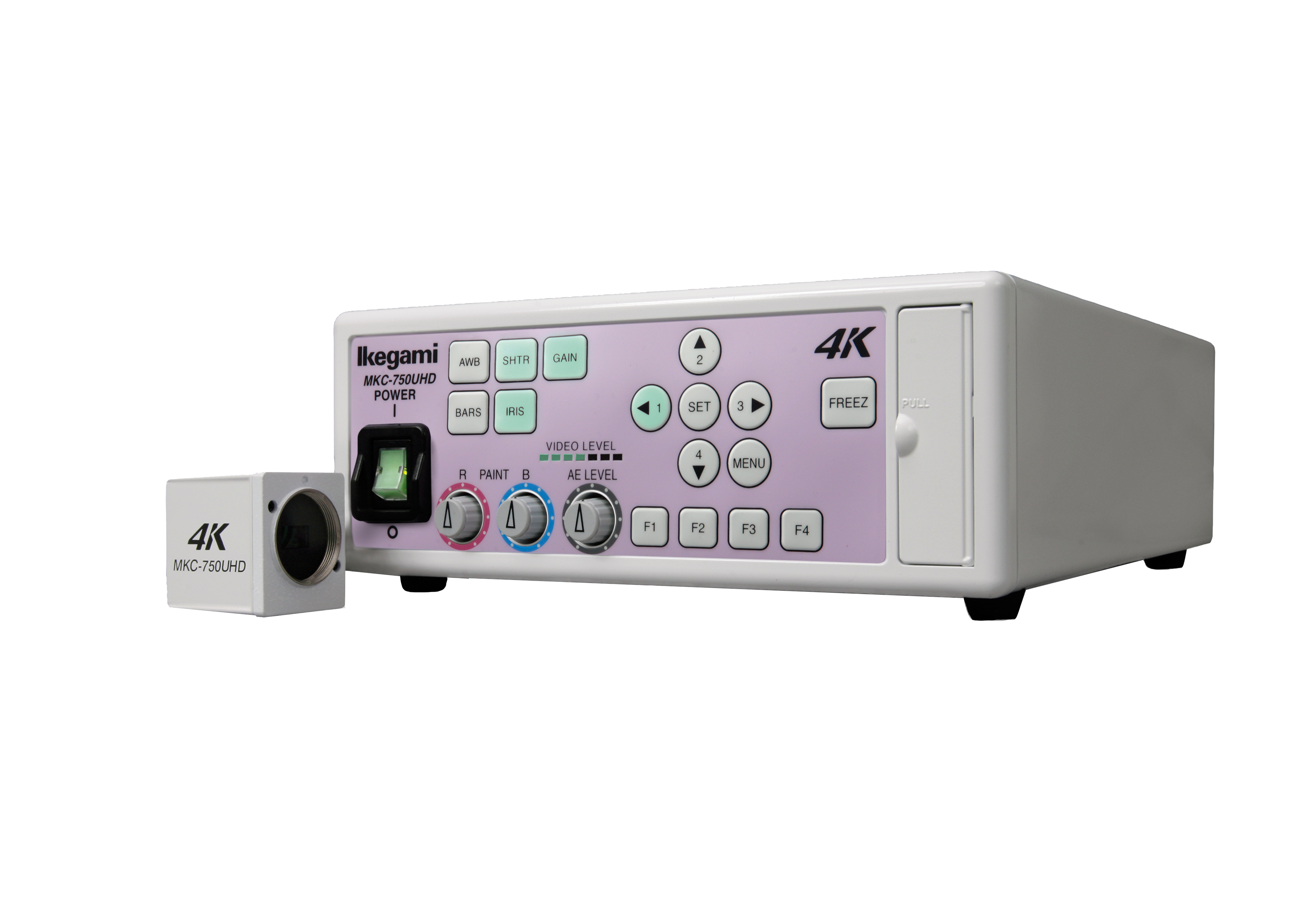

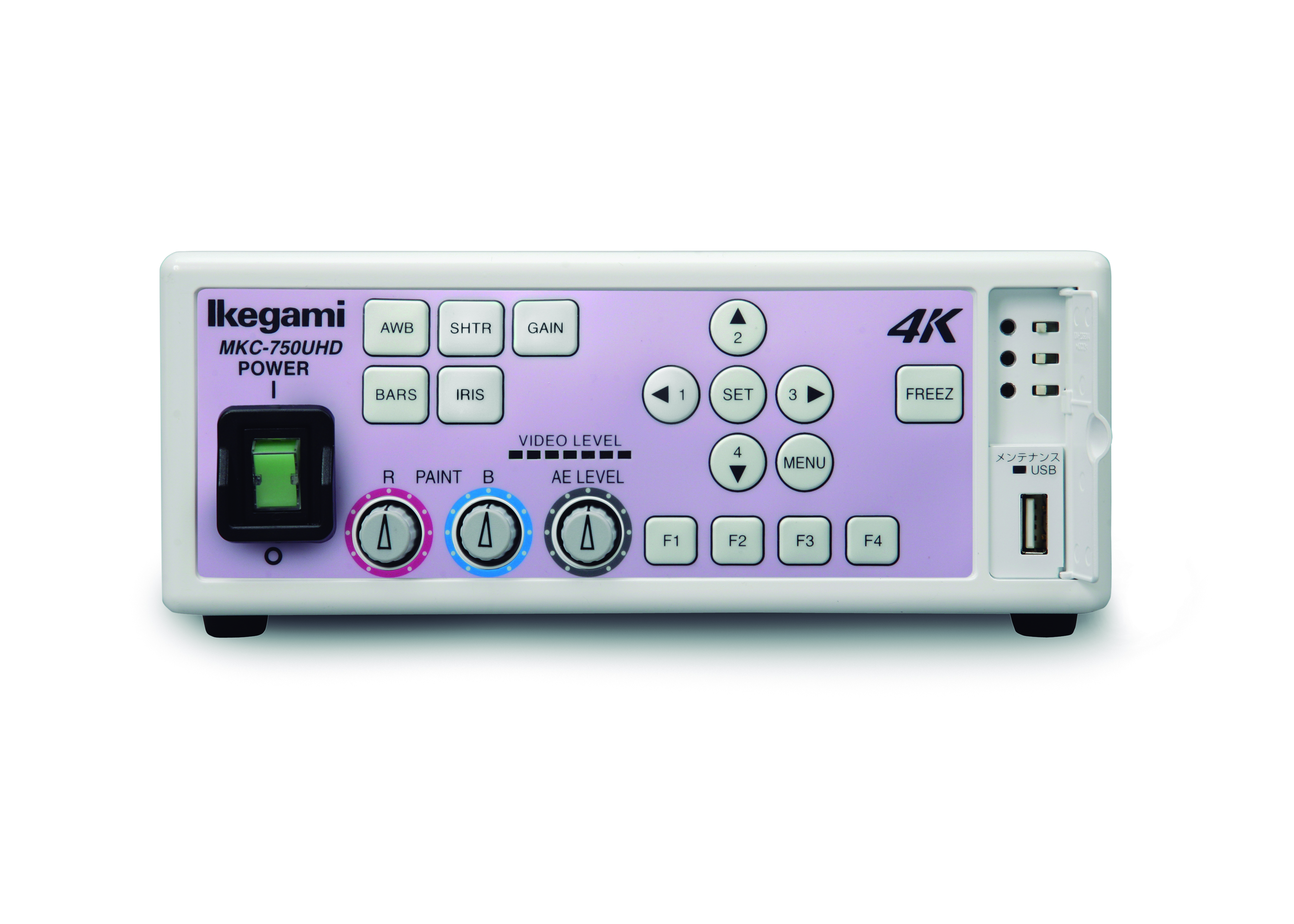

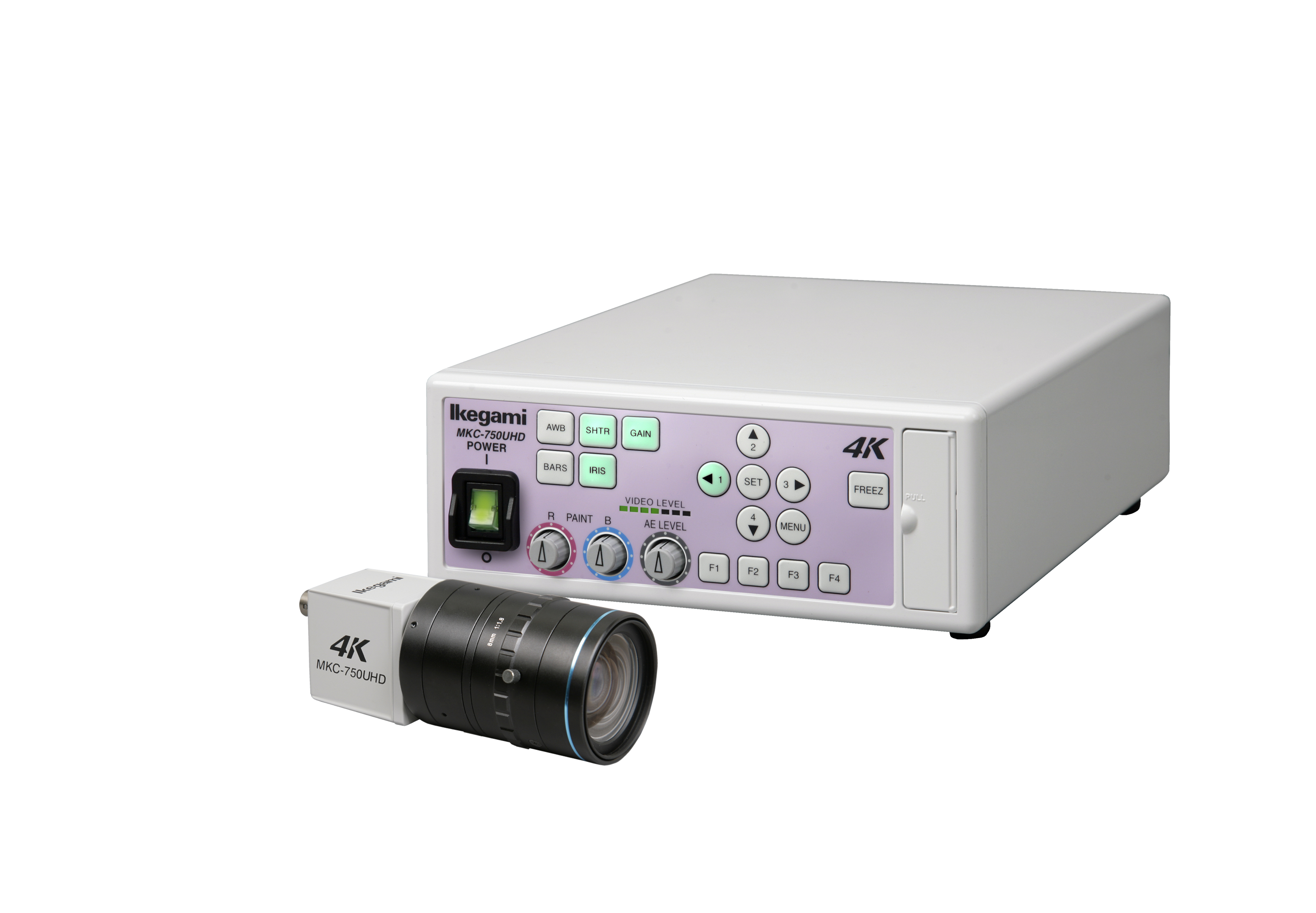

Ikegami has developed Medical Grade 4K Camera MKC-750UHD to be suitable for surgical video operations, Microscopes o Endoscopes. MKC-750UHD is the first developed medical 4K 3 sensors camera from Ikegami. With the latest 3-CMOS and Ultra HD resolution (3840x2160pixels), the MKC-750UHD gives the superb high picture quality. The camera will be avilable for OEM, the camera head, Camera Control Unit and Medical grade cable will be offered as per customer's requierd specifications.
- 3 Chip CMOS progressive Image Sensor
- High Quality 4K image (3840 x 2160 pixels)
- Various Video Outputs
- Ultra Compact Camera Head: W34 x H40 x D40 mm
HIGH QUALITY IMAGE OUTPUT
Employs a 1/3-inch 3 CMOS sensor ,Ultra HD resolution (3840x2160pixels) 4K.
NEW DIGITAL PROCESSOR
Progressive processing with newly developed digital engine delivering improved resolution in detail and dynamic resolution.
MIRROR, FLIP AND ROTATE FUNCTION
Digital capture allows a captured image to be flipped horizontally and vertically. Remote controllable via an external optional unit such as a foot switch.
Max. 4x zoom is available.
Each correction/function setting (four positions) can be saved and loaded easily.
Video level can be checked and adjusted using a level indicator.
ANTI-BIOTIC COATING (ANTIBACTERIAL COATING MATERIAL)
The camera-head and CCU (camera control unit) use an antibiotic to help to improve infection control.
|RATINGS / PERFORMANCE MKC-750UHD|
|Image Sensor||1/3-inch 3CMOS|
|Sensitivity||2000 lx F8 / 3200 K or better|
|S/N||58 dB (Gamma / * Detail OFF)|
|Output signal 4K||3G-SDI 4 ch|
|HDTV||HD-SDI (1920 x 1080 i/p) BNC 2 ch |
DVI (1920 x 1080 i/p) 1 ch
|External Synchronization||HDTV Tri-Level SYNC 1 ch|
|Auto Shutter||1/100 - 1/10000|
|Digital Zoom||Max. 4 position|
|DC Iris Control||Available (from CCU)|
|External Control||RS-232C 1 ch|
|Operating Temperature||0 to 40 °C|
|Power Requirement||AC 100 - 120, 200 - 240 V ± 10 % 50/60 Hz|
|Weight||Camera Head: less than 100 g; CCU: less than 3 kg|
|Dimensions||Camera Head: W 34 x H 40 x D 40 mm; CCU: W 210 x H 80 x D 270 mm|
