MDR-600HD Image & Video Recorder
Free of shipping costs!
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: SW10333

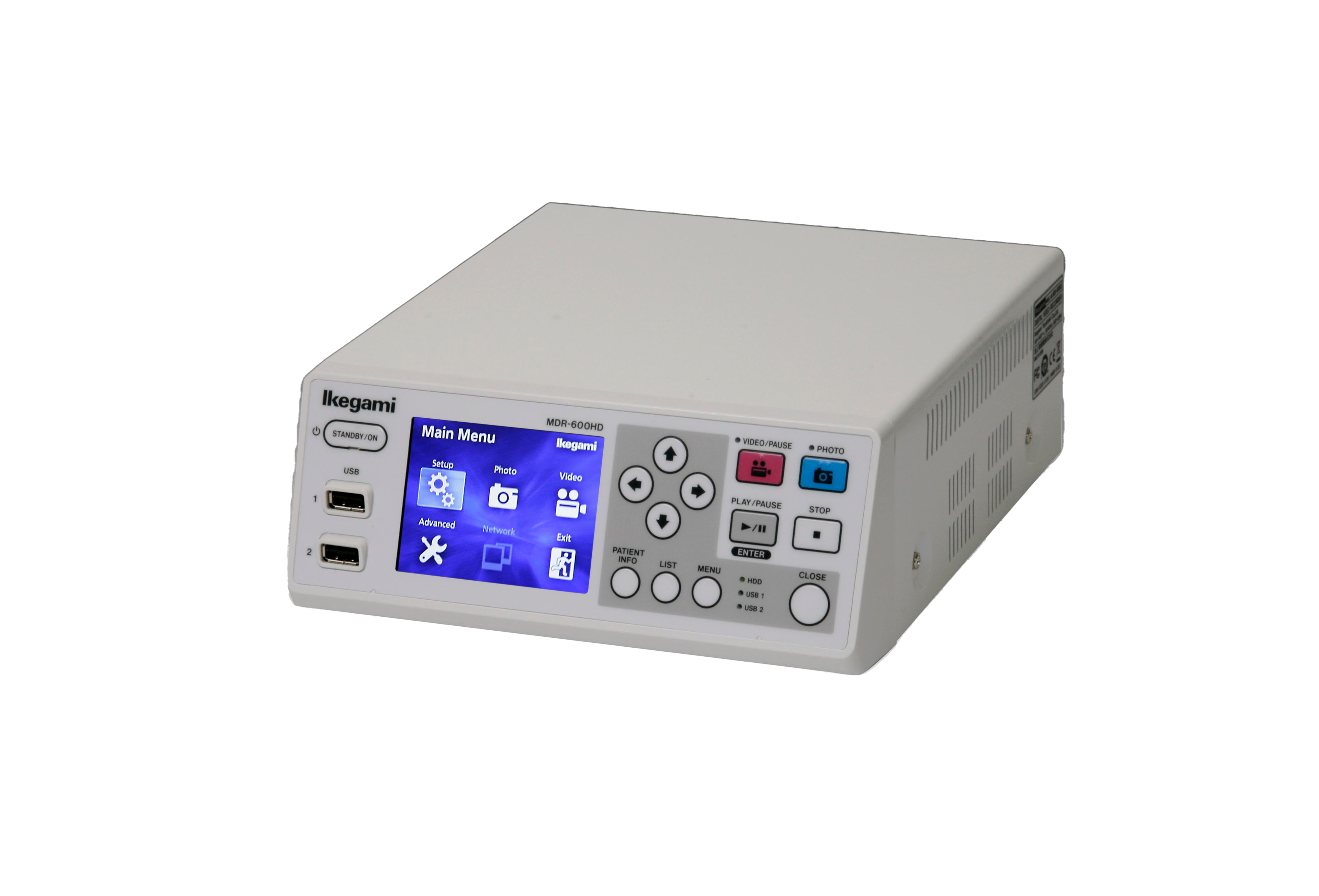

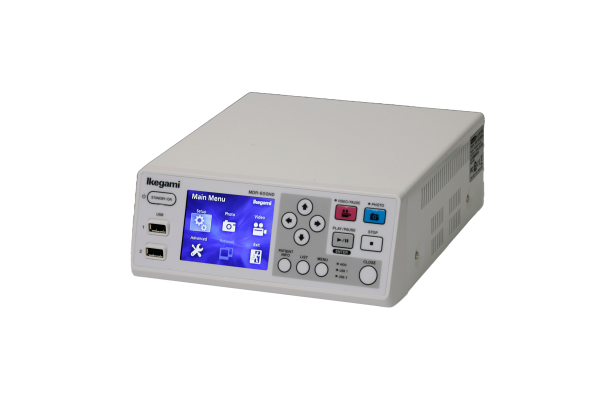

HIGH DEFINITION MEDICAL IMAGE AND VIDEO RECORDER
Ikegami's medical grade digital video recorder MDR-600HD brings high quality and convenience
Various types of video signals(SD & HD)can be recorded by simple operation. Reliable simultaneous recording and playback feature on Internal HDD or External USB-device are also available.
HIGH QUALITY VIDEO AND IMAGE
High quality SD/HD video and still image (640x480to 1920x1080) can be recorded and played back simultaneously.
DUAL RECORDING FEATURE
Simultaneous recording feature on Internal HDD and External USB device secure data reliability. "Maximum 3-way recording (Internal HDD and 2x USB devices) is available."
AUTO-SIGNAL DETECTION & AUTO-RESOLUTION FOLLOWING
Simply connect with video input device, it enables the auto-signal detection and the auto-resolution following feature and quick start.
IMAGE-DATA TRANSFER FEATURE (OPTION)
"Transferring data using LAN and retrieving data from internal HDD or mass storage device using USB cable, and auto forwarding to FTP/CIFS server are available."
VARIOUS SEARCH FEATURE
Patient data (Date, ID, Name, DOB, Sex) can be searched and reproduced quickly.
SIMULTANEOUS RECORDING AND PLAYBACK FEATURE
Still image can be saved during video recording, also video or still image can be play backed during video recording period.
SIMPLE OPERATION
Just one button "Video" enable start recording video, also just "Photo" button enable start recording still image.
BUILT-IN LCD MONITOR
Recording or Play backing video can be checked on LCD monitor. Also unit status and remaining data space can be displayed.
EXTERNAL CONTACT SWITCH
External contact (foot) switch can control recording start, stop and hold.
APPLICABLE SAFETY REGULATION
IEC60601-1, CSA60601-1, EN60601-1, CE
EMC REQUIREMENT
IEC60601-1-2, CSA60601-1-2, EN60601-1-2, FCC classB

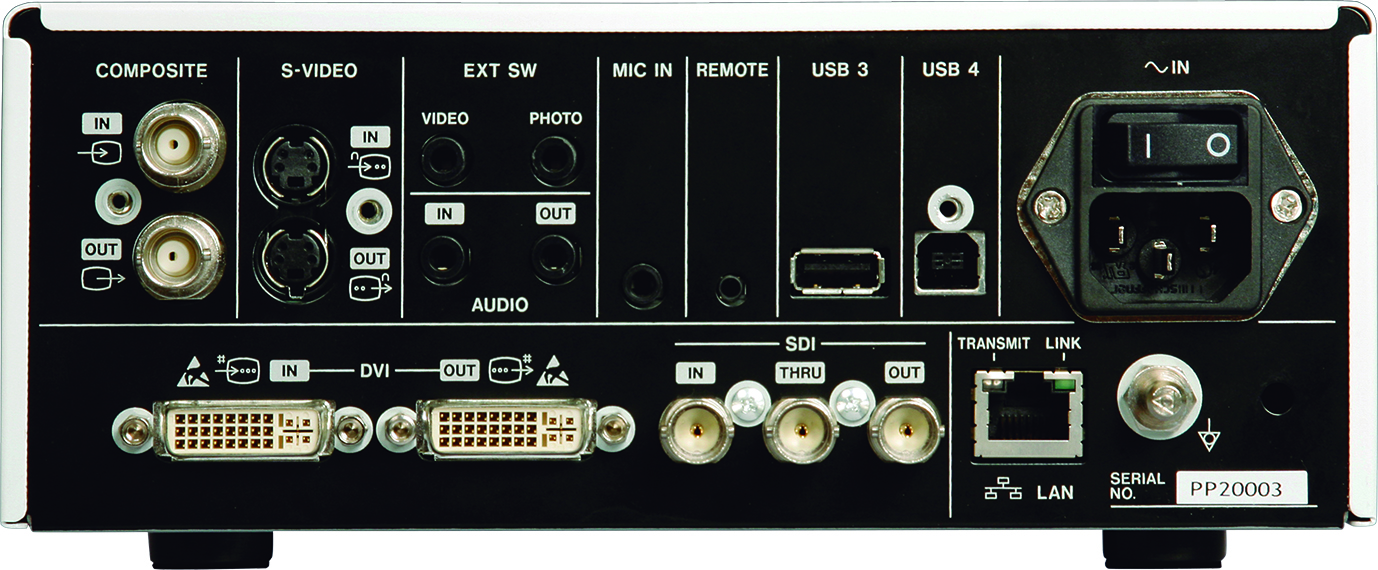

| RATINGS / PERFORMANCE MDR-600HD | |
|---|---|
| Internal | 2.5-inch HDD (Data Capacity 450 GByte) |
| External | USB Drive (Flash Memory or HDD) |
| Display | 3.5-inch, Full Colour LCD |
| Video Composite | 1.0 Vp-p 75 Ω |
| S-Video | 1.0 Vp-p 75 Ω luminance Signal |
| NTSC | 0.286 Vp-p 75 Ω chrominance Signal |
| PAL | 0.3 Vp-p 75 Ω chrominance Signal |
| SD | SD-SDI NTSC (480 i), PAL (576 i) |
| HD-SDI | 1080 p, 1080 i, 720 p |
| DVI-D | 640 x 480 - 1920 x 1200 (1920 x 1200 will be reduced to 1728 x 1080) |
| Audio | - 8 dBs 10 k Ω or more, unbalance SDI Video Input Terminal |
| LAN | RJ45 (100 Base-TX/1000 Base-T) |
| USB-A | Recording x 2 (Front USB 2.0) |
| USB-B | For PC Connection x 1 (Rear USB 2.0) |
| Remote | 2.5-inch Mini-Jack |
| Contact Switch | 3.5-inch Mini-Jack, Video x 1, Photo x 1 |
| USB Drive | Flash Memory or HDD |
| Format | FAT32 |
| Still Image | JPEG |
| Video Compression | MPEG-4 AVC / H.264 |
| File Format | mov |
| Recording Time | 90 hours. Internal HDD: 500GB, EQ: Economy Quality |
| Compression | LPCM |
| Sampling Freq. | 48 KHz |
| Quantifying Bit Number | 16-Bit |
| Operating Temperature | 5 °F to 40 °F (32 °F to 104 °F) |
| Humidity | 5 % to 80 % RH (non-condensing) |
| Dimension | 210.5 W x 88.5 H x 235 D mm (incl. rubber foot) |
| Weight | 2.6 kg (5.7 lbs) |
| Accessories | Power Cord x 1 Instruction Manual (with Warranty) |
