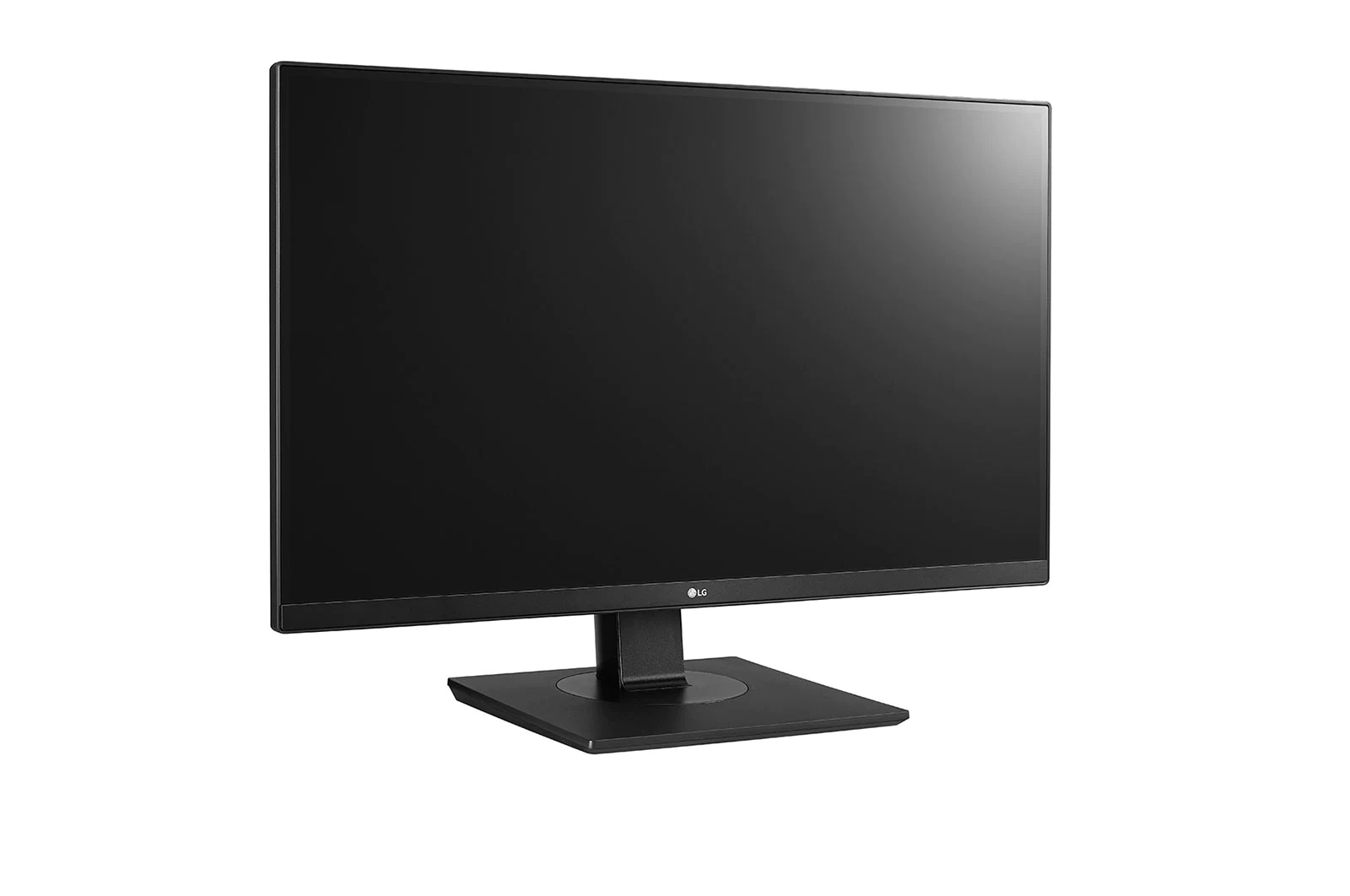

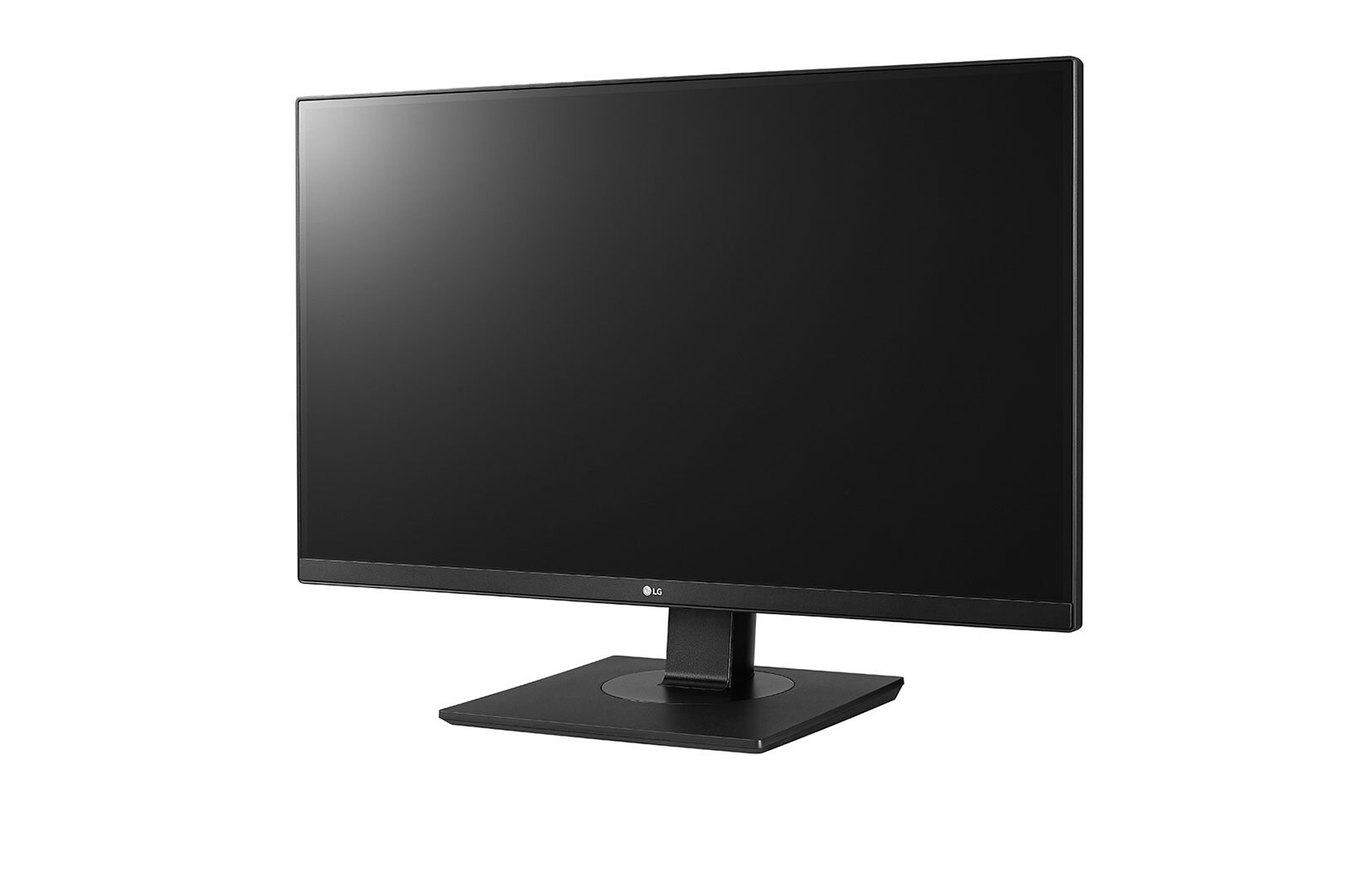

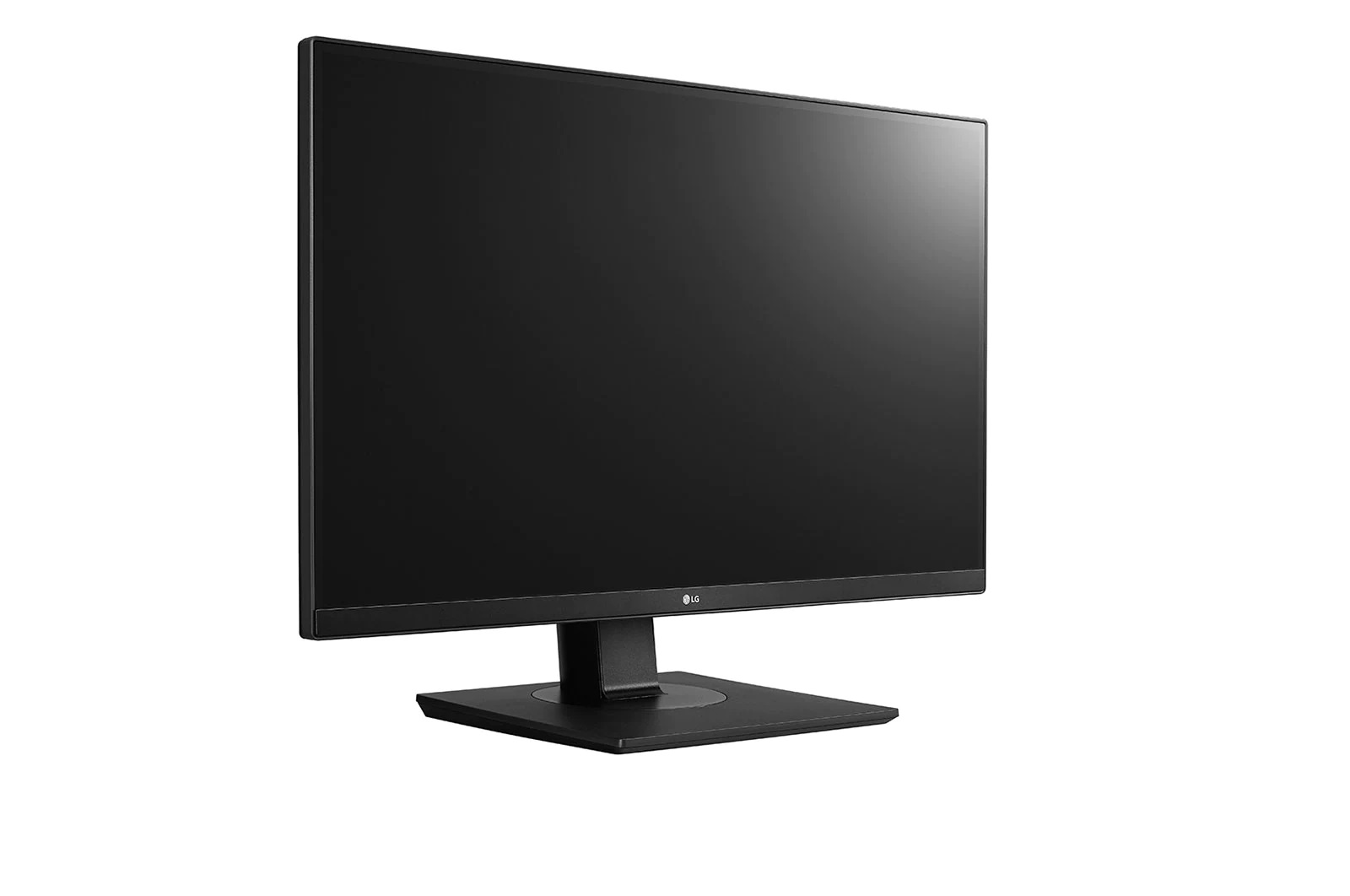

LG 27HJ713C 27'' 8MP Clinical Review Monitor
- Order number: SW10323
Superior Image Quality The 27-inch 8MP IPS display provides the ideal brightness for... more
Product information "LG 27HJ713C 27'' 8MP Clinical Review Monitor"

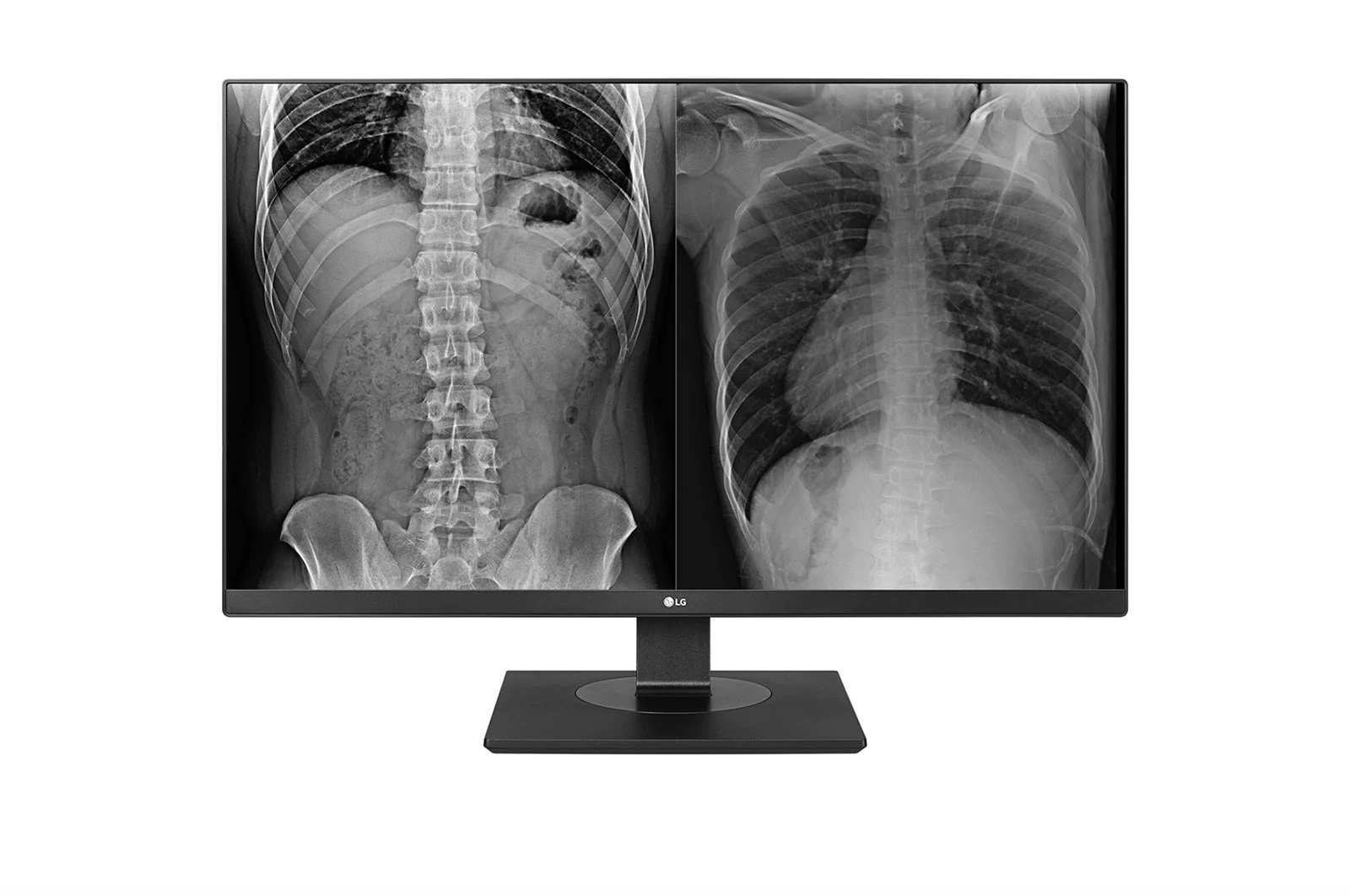

Superior Image Quality
The 27-inch 8MP IPS display provides the ideal brightness for secondary review. The 178°-wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
Brighter and More Precise
350nits (Typ.) brightness and sRGB 99% of the color space guarantee brighter, more vivid color expression and better resolution for greater image accuracy.
Compliance with Medical Standards
The DICOM Part 14 Gamma adjusts the greyscale levels of medical images from various medical imaging modalities, helping more accurate review. Also, it ensures a 250 nit brightness compliant to the ACR-AAPM-SIIM secondary review brightness guideline*.
*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).
Consistently Stable Display
A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.
Related links to "LG 27HJ713C 27'' 8MP Clinical Review Monitor"
DISPLAY Aspect Ratio 16:9 Backlight Dimming Technology Global... more
Specifications "LG 27HJ713C 27'' 8MP Clinical Review Monitor"
DISPLAY
| Aspect Ratio | 16:9 |
| Backlight Dimming Technology | Global Dimming |
| Backlight Technology | LED |
| Backlight Type | Edge |
| Brightness (Typ.) | 350cd/m² |
| Brightness (Stabilization) | 250 cd/m2 |
| Colour Bit | 10 bit |
| Colour Depth (Number of Colours) | 1.07 B |
| Colour Gamut (Typ.) | sRGB over 99%(Coverage) |
| Contrast Ratio (Typ.) | 1000:1 |
| Contrast Ratio with DFC | Mega |
| Panel Type | IPS |
| Pixel Pitch (H x V) | 0.1554mm x 0.1554mm |
| Resolution | 3840 x 2160 |
| Response Time (GTG) | 14ms (Off-setting), 5ms (Faster-setting) |
| Size (Inch) | 27 |
| Size (cm) | 68.58 |
| Surface Treatment | Anti-glare, 3H |
| Viewing Angle (CR≥10) | 178°(Right/Left), 178°(Up/Down) |
Feature
| Brightness stabilization | Yes |
| Factory Calibration | Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve) |
| HW Calibration | Yes (True Color Pro) |
| DICOM Compliant | Yes |
| Colour Temperature | 6500K/8500K/9300K Manual (5000K ~ 10000K) |
| Colour Weakness | Yes |
| Flicker safe | Yes |
| OSD Language | 17 Language |
| PBP | Yes (2PBP) |
| Picture Mode | (SDR) Custom, Mono, Reader, sRGB, Color Weakness, EBU, REC709, SMPTE-C, DICOM, Calibration 1, Calibration 2 |
| Reader Mode | Yes |
| Smart Energy Saving | Yes |
| Super Resolution+ | Yes |
| Uniformity | Yes |
SW Application
| Dual Controller | Yes |
| True Colour Pro | Yes |
Connectivity
| DisplayPort | Yes (1ea) |
| DP (HDCP Version) | 2.2 |
| DP (Max. Resolution at Hz) | 3840 x 2160 at 60Hz |
| DP (H-Frequency) | 30~135 kHz |
| DP (V Frequency) | 56~61 Hz |
| DP Version | 1.2 |
| HDMI | Yes (2ea) |
| HDMI (HDCP Version) | 2.2 |
| HDMI (Max. Resolution at Hz) | 3840 x 2160 @60Hz |
| HDMI (H Frequency) | 30~135 kHz |
| HDMI (V Frequency) | 56~61 Hz |
| HDMI Version | 2.0 |
| Composite | Yes |
| S-Video | Yes |
| Component | Yes |
| Headphone out | Yes |
| USB Downstream Port | Yes (2ea/ver3.0) |
| USB Upstream Port | Yes (1ea/ver3.0) |

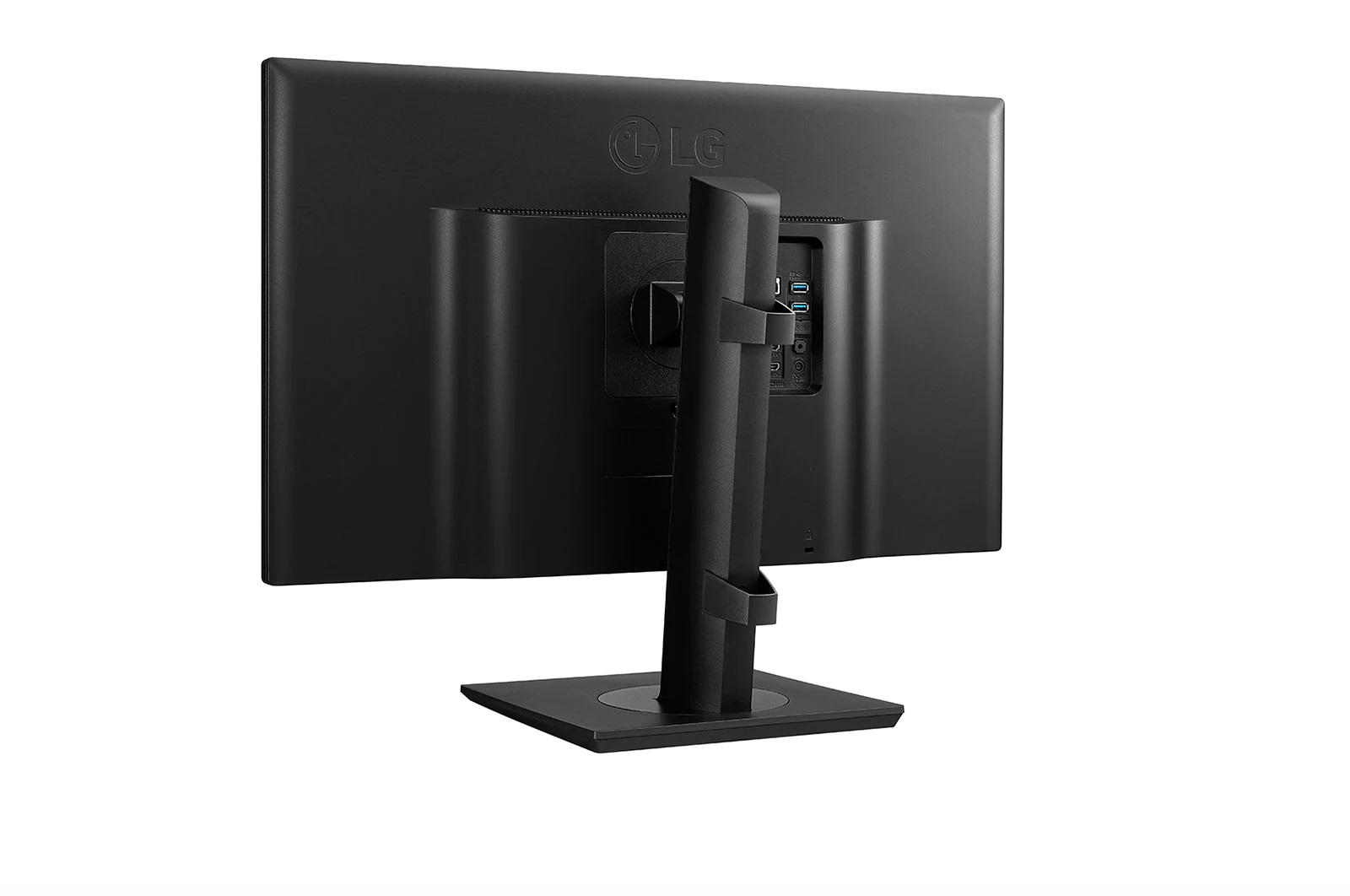

| [Location] | Rear |
Power
| AC Input | 100-240Vac, 50/60Hz |
| DC Output | 19V, 3.42A |
| Power Consumption (DC Off) | Less than 0.3W |
| Power Consumption (Max.) | 65W |
| Power Consumption (Sleep Mode) | Less than 0.5W |
| Type | External Power (Adapter) |
Mechanical
| Base Detchable | Yes |
| Borderless Design | 3-Side Virtually Borderless Design |
| Colour (Back Cover) | Black |
| Colour (Midtre Cabinet) | Black |
| Colour (Stand Base) | Black |
| Colour (Stand Body) | Black |

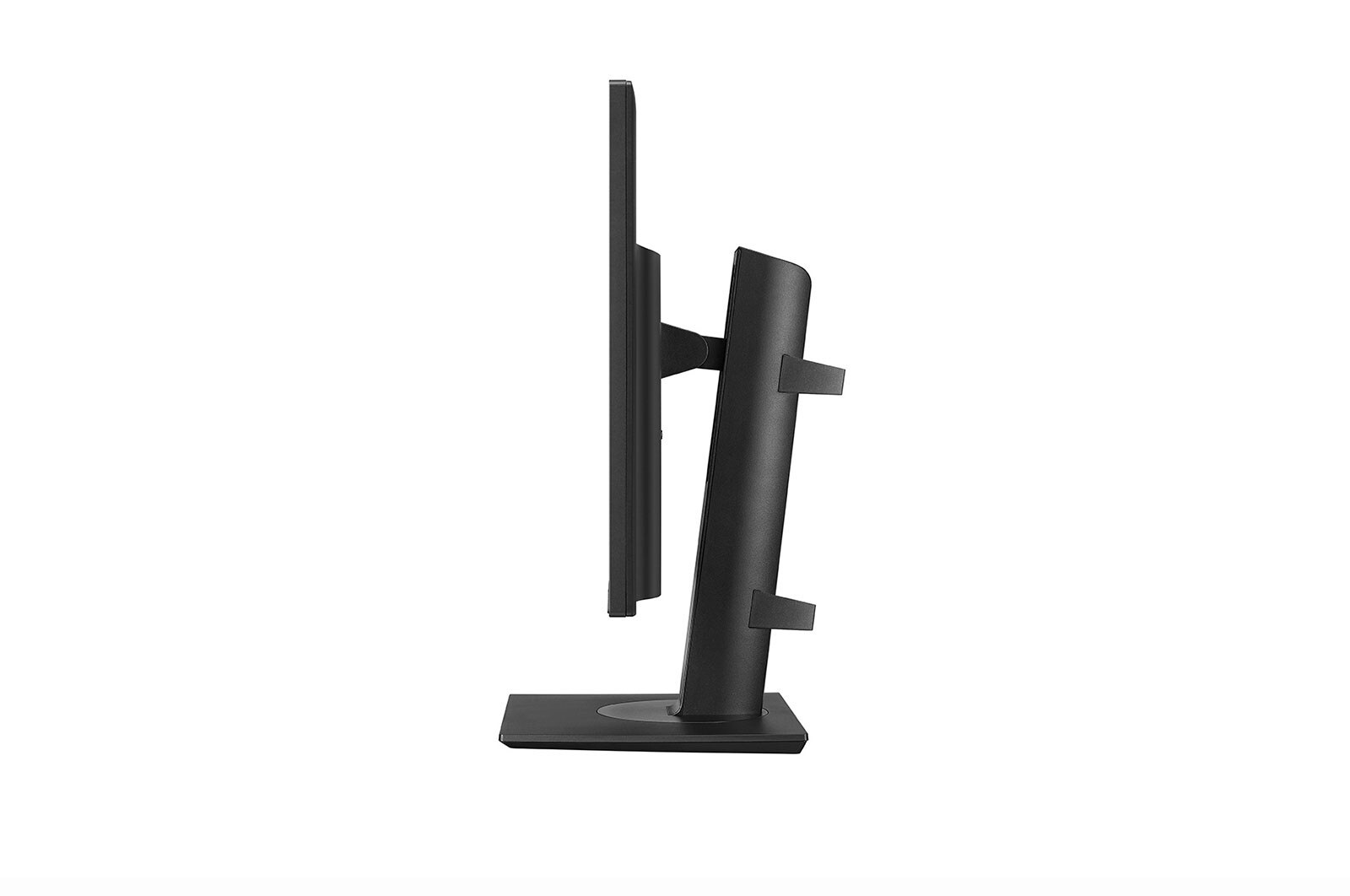

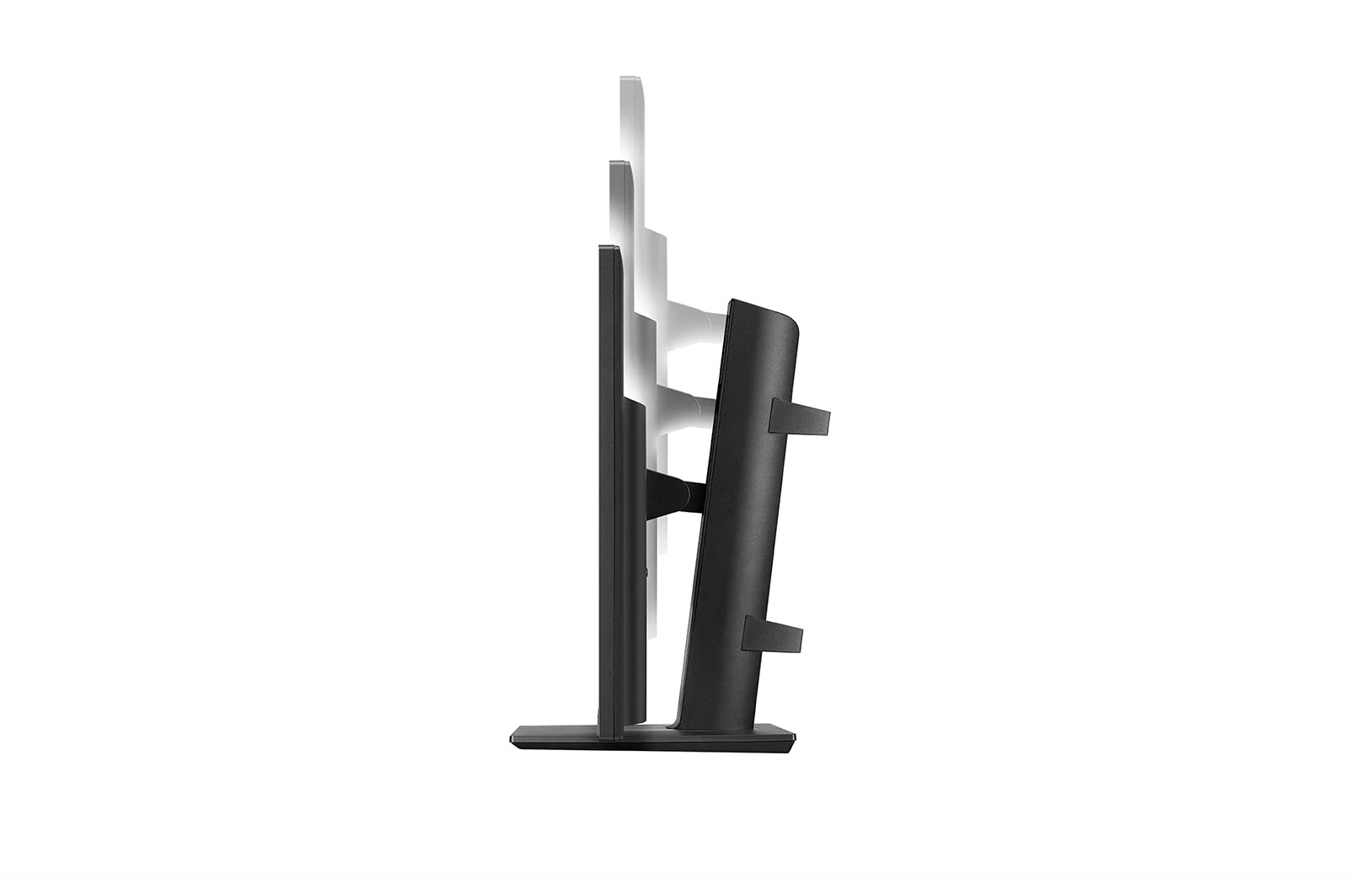

| Display Position Adjustments | Tilt/Height/Pivot/swivel |
| Down Height | 49mm |
| Height Range | 150mm |
| OneClick Stand | Yes |

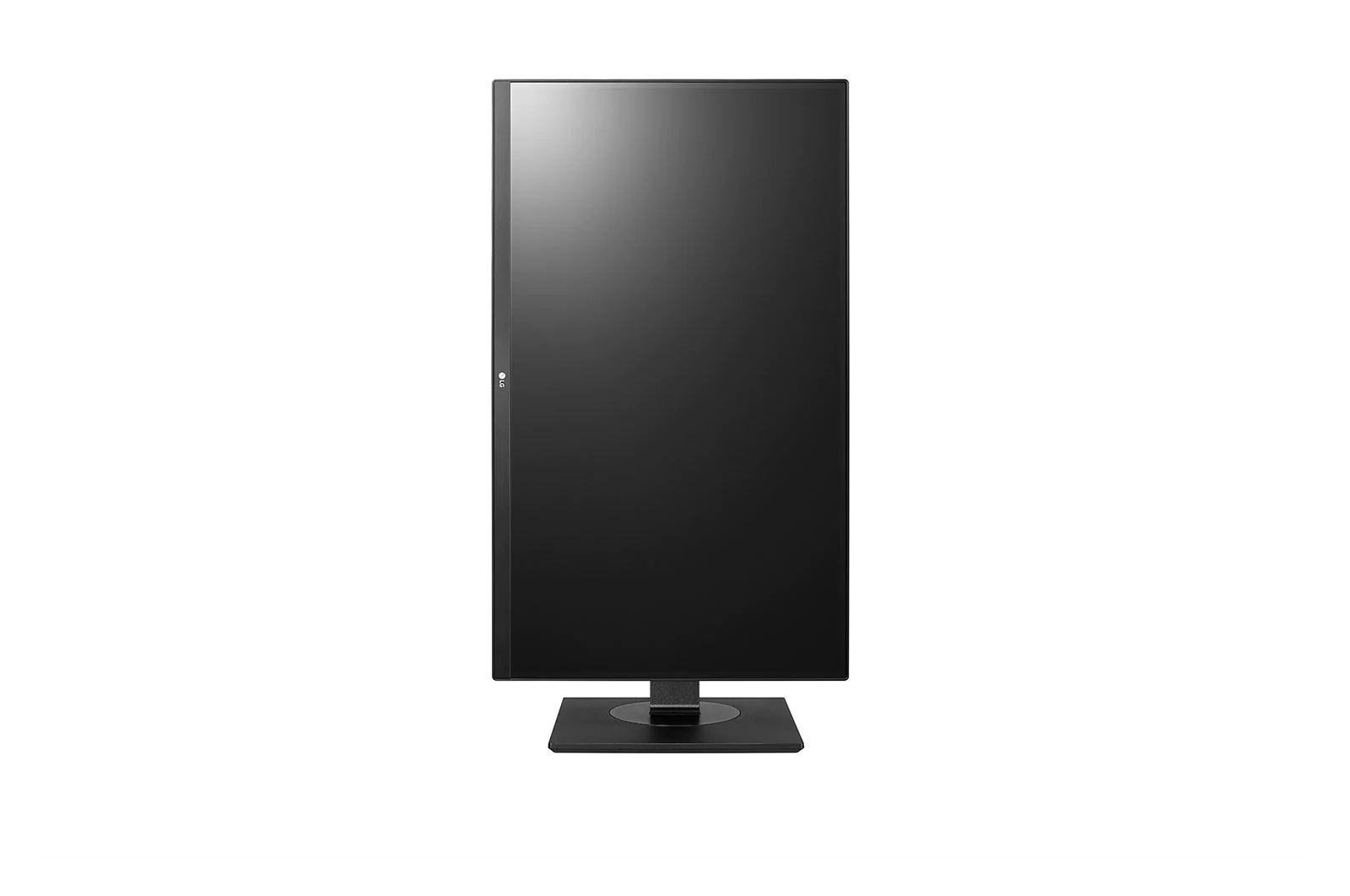

| Pivot | Yes (±90°) |
| Swivel | Yes (±45°) |
| Tilt | Yes (-5°~25˚) |
| Wall Mount Size | 100 x 100 mm |
Dimensions/Weight
| Dimension in Shiping (W x H x D) | 694 x 504 x 185 mm |
| Dimension with Stand (W x H x D) | 615 x 546.3 x 276.1 mm |
| Dimension without Stand (W x H x D) | 615 x 365.1 x 42.70 mm |
| Pallet Stuffing (20ft/40ft/40ft HC) | 352ea/704ea/832ea |
| Weight in Shipping | 10.3kg (22.7lb) |
| Weight with Stand | 7.5kg (16.5lb) |
| Weight without Stand | 4.7kg (10.4lb) |
Standard
| IEC (IEC 60601-1/IEC 60601-1-2) | Yes |
| EN (EN 60601-1/EN 60601-1-2) | Yes |
| IEC (IEC 60950-1/IEC 55032, 55024) | Yes |
| EN (EN 60950-1/EN 55032, 55024) | Yes |
| ctable (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) | Yes |
| FCC (FCC part 15 Class A) | Yes |
| FDA | Registration (Class I) |
| ISO13485 | Yes |
| GMP | Yes |
| KGMP | Yes |
| KC | Yes |
| RoHS | Yes |
| REACH | Yes |
| WEEE | Yes |
| MFDS | Yes |
Accessory
| Adapter | Yes |
| Adapter (Colour) | Black |
| Calibration Report (Paper) | Yes |
| Display Port | Yes |
| Display Port (Colour/Length) | Black/1.5m |
| HDMI | Yes |
| HDMI (Colour/Length) | Black/1.8m |
| Power Cord | Yes |
| Power Cord (Colour/Length) | Black/1.8m |
| USB3.0 Upstream Cable | Yes |
| USB3.0 Upstream Cable (Colour/Length) | Black/1.5m |
