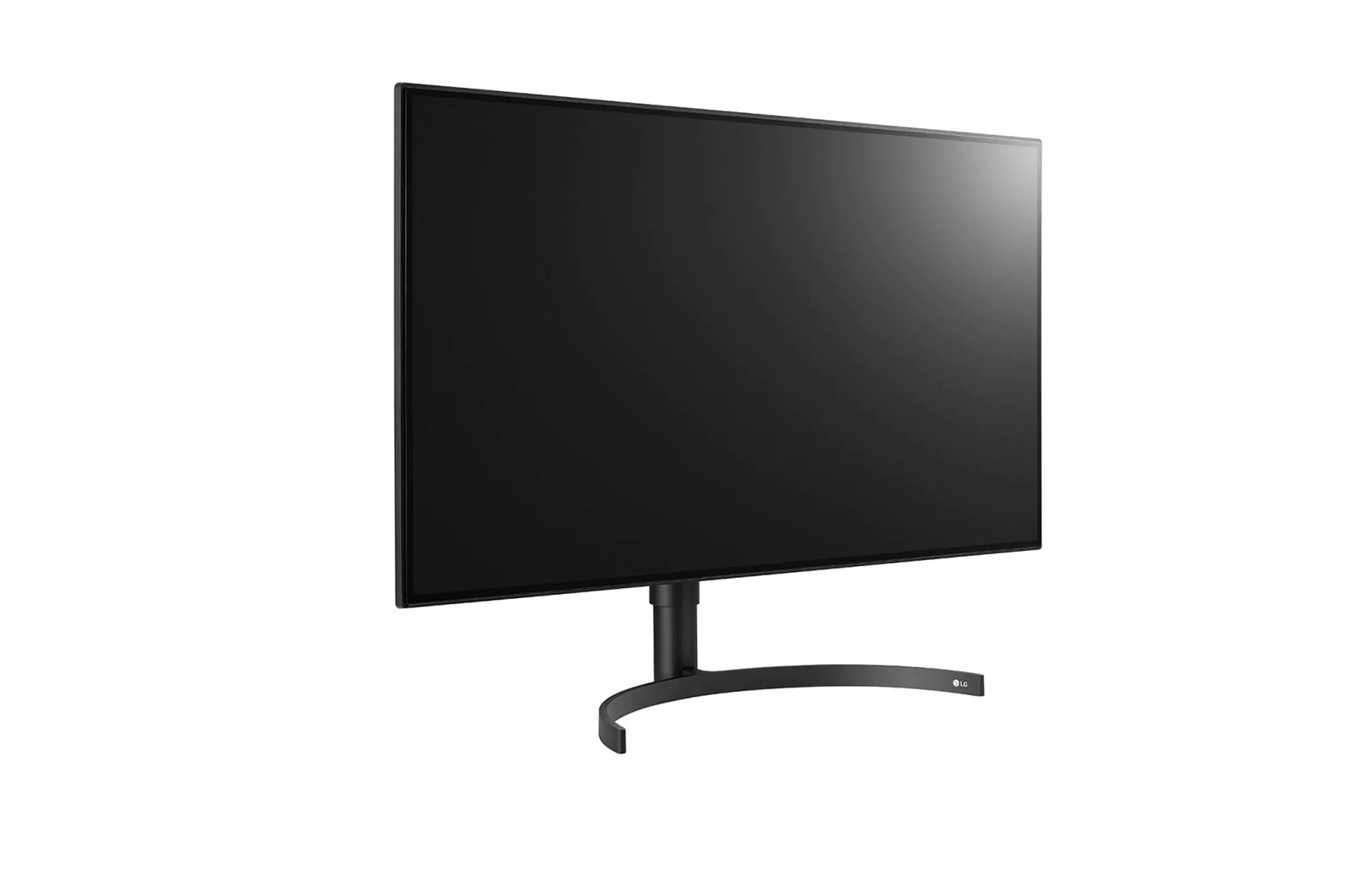

LG 32HL512D 31.5'' 8MP Diagnostic Monitor

Price on request. Please sign up here first.

Delivery in 1-2 weeks time

  • SW10321
32HL512D-B 31.5'' LG 8MP Diagnostic Monitor 31.5" 8MP IPS Display Multi Resolution... more
Product information "LG 32HL512D 31.5'' 8MP Diagnostic Monitor"

31.5'' LG 8MP Diagnostic Monitor

  • 31.5" 8MP IPS Display
  • Multi Resolution Mode
  • PBP / Dual Controller
  • Auto Luminance Calibration
  • Clinical Pathology Mode
  • Ergonomic Design

Accurate Image from Any Angle

The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

Accurate Image from Any Angle1

Compatible with Every Device

The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.

Realistic Color Reproduction

As LG 32HL512D monitor adopts the clinical pathology mode with improved color reproduction, can deliver images from the microscope vividly without color distortion.

Sustained Picture Quality

Built-in Auto Luminance Calibration helps to increase productivity and efficiency. It converts automatically the medical images to more suitable images to make a exact diagnosis.

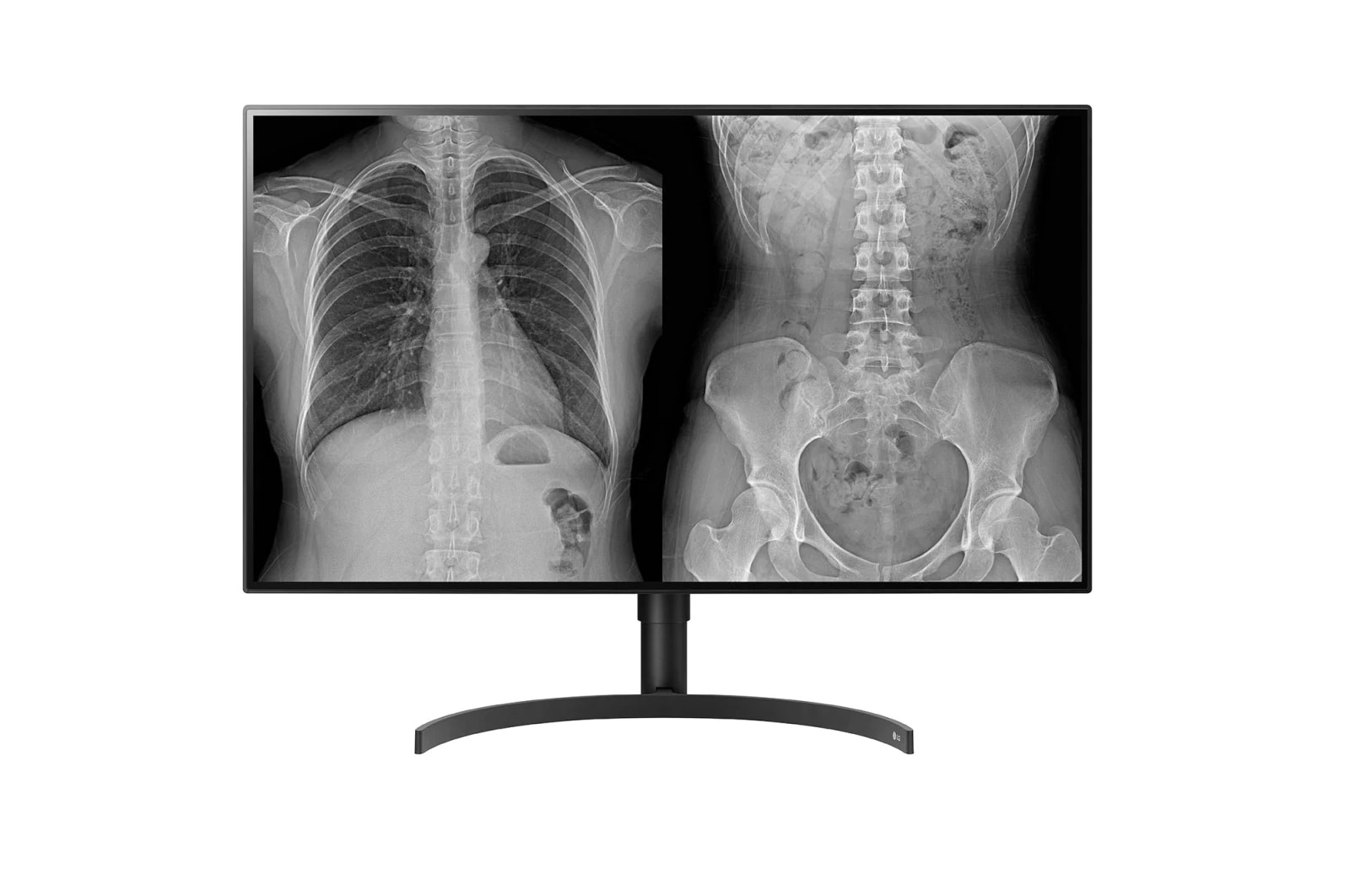

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.


Designed for Comfort & Immersion

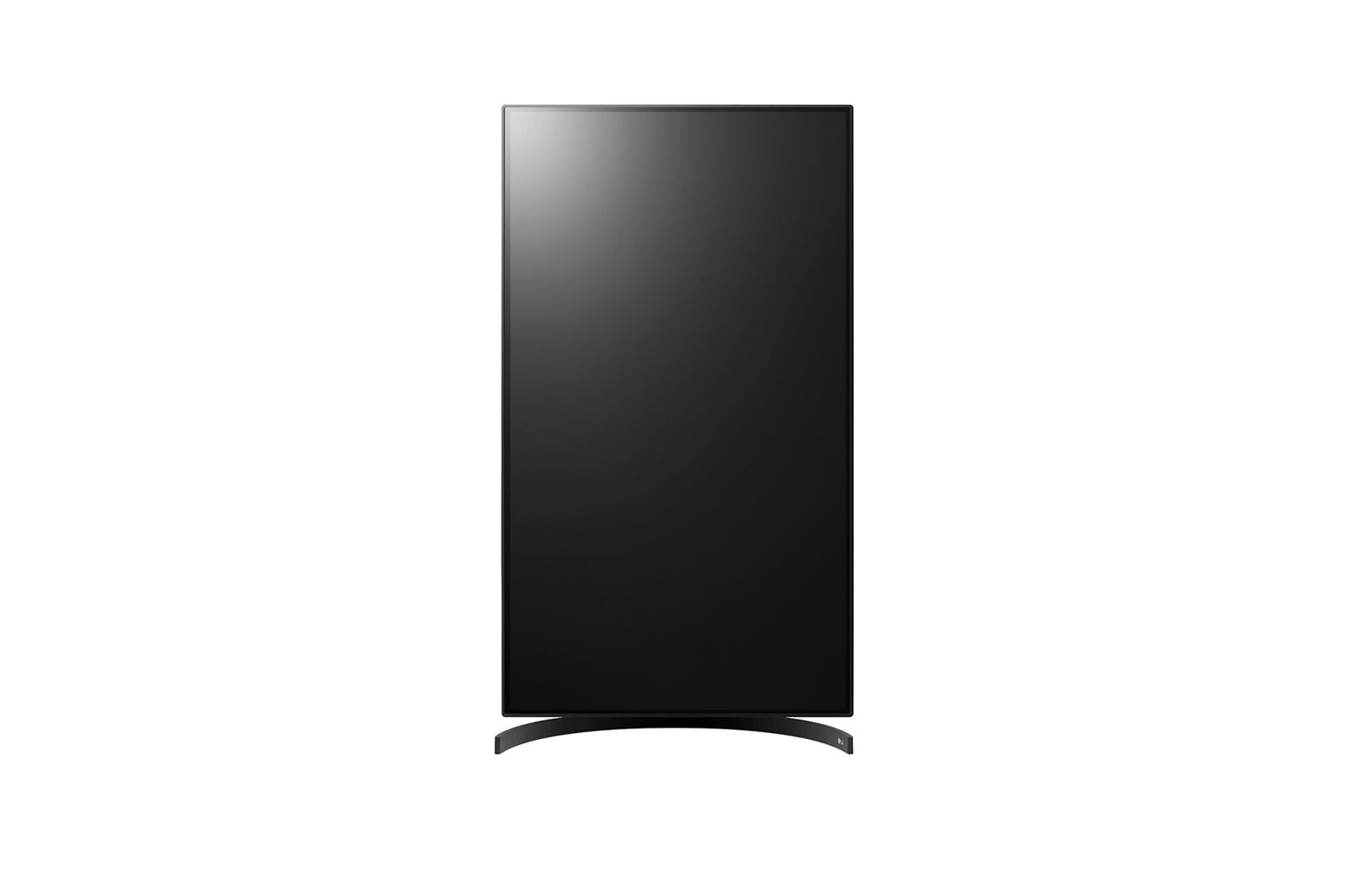

Its ergonomic stand, two-way pivot adjustment and narrow bezel can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
Related links to "LG 32HL512D 31.5'' 8MP Diagnostic Monitor"
DISPLAY Aspect Ratio 16:9 Backlight Dimming Technology Global... more
Specifications "LG 32HL512D 31.5'' 8MP Diagnostic Monitor"


Aspect Ratio 16:9
Backlight Dimming Technology Global Dimming
Backlight Technology LED
Backlight Type Edge
Brightness (Min.) 360cd/m²
Brightness (Typ.) 450cd/m²
Brightness (Stabilization) 250 Clinical mode setting)/350 (Dignostic mode setting) cd/m²
Colour Bit 10bit (8bit+FRC)
Colour Depth (Number of Colours) 1.07B
Colour Gamut (Typ.) DCI-P3 98%(CIE1976)
Contrast Ratio (Typ.) 1300:1
Contrast Ratio with DFC Mega
Panel Type IPS
Peak Brightness (Min.) 360cd/m²
Peak Brightness (Typ.) 450cd/m²
Pixel Pitch (H x V) 0.18159mm x 0.18159mm
Resolution 3840 x 2160
Response Time (GTG) 14ms (Off-setting), 5ms (Faster-setting)
Size (Inch) 31.5
Size (cm) 80.0051
Surface Treatment Anti-glare, 3H
Viewing Angle (CR≥10) 178°(Right/Left), 178°(Up/Down)


Brightness stabilization Yes
Black Stabilizer Yes
Factory Calibration Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration Yes (PerfectLum)
DICOM Compliant Yes
Colour Temperature 6500K/7500K/9300K
Manual (5000K ~ 10000K)
Flicker safe Yes
HDR 10 Yes
HDR Effect Yes
Nano IPS™ Technology Yes
OSD Language 17 Language
PBP Yes (2PBP)
Mtableti-resolution Mode Yes (8MP/6MP/4MP)
Pathology Mode Yes
Picture Mode (SDR) Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM (Clinical), DICOM (Diagnostic), Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Reader Mode Yes
Smart Energy Saving Yes
Super Resolution+ Yes
Uniformity Yes
Wide Colour Gamut Yes

SW Application

Dual Controller Yes
OnScreen Control (LG Screen Manager) Yes
Qubyx Yes


DisplayPort Yes (2ea)
DP (HDCP Version) 2.2
DP (Max. Resolution at Hz) 3840 x 2160 at 60Hz
DP (H-Frequency) 30~135kHz
DP (V Frequency) 56~61Hz
DP Version 1.4
HDMI Yes (1ea)
HDMI (HDCP Version) 2.2
HDMI (Max. Resolution at Hz) 3840 x 2160 @60Hz
HDMI (H Frequency) 30~135kHz
HDMI (V Frequency) 56~61Hz
HDMI Version 2.0
USB Downstream Port Yes (2ea/ver2.0)
USB Upstream Port Yes (1ea/ver2.0)
[Location] Rear


AC Input 100-240Vac, 50/60Hz
DC Output 19V, 3.42A
Power Consumption (DC Off) Less than 0.3W
Power Consumption (Max.) 65W
Power Consumption (Sleep Mode) Less than 0.5W
Type External Power (Adapter)


Base Detchable Yes
Borderless Design 4-Side Virtually Borderless Design
Colour (Back Cover) Black
Colour (Front Cabinet) Black
Colour (Mittre Cabinet) Black
Colour (Stand Base) Black
Colour (Stand Body) Black

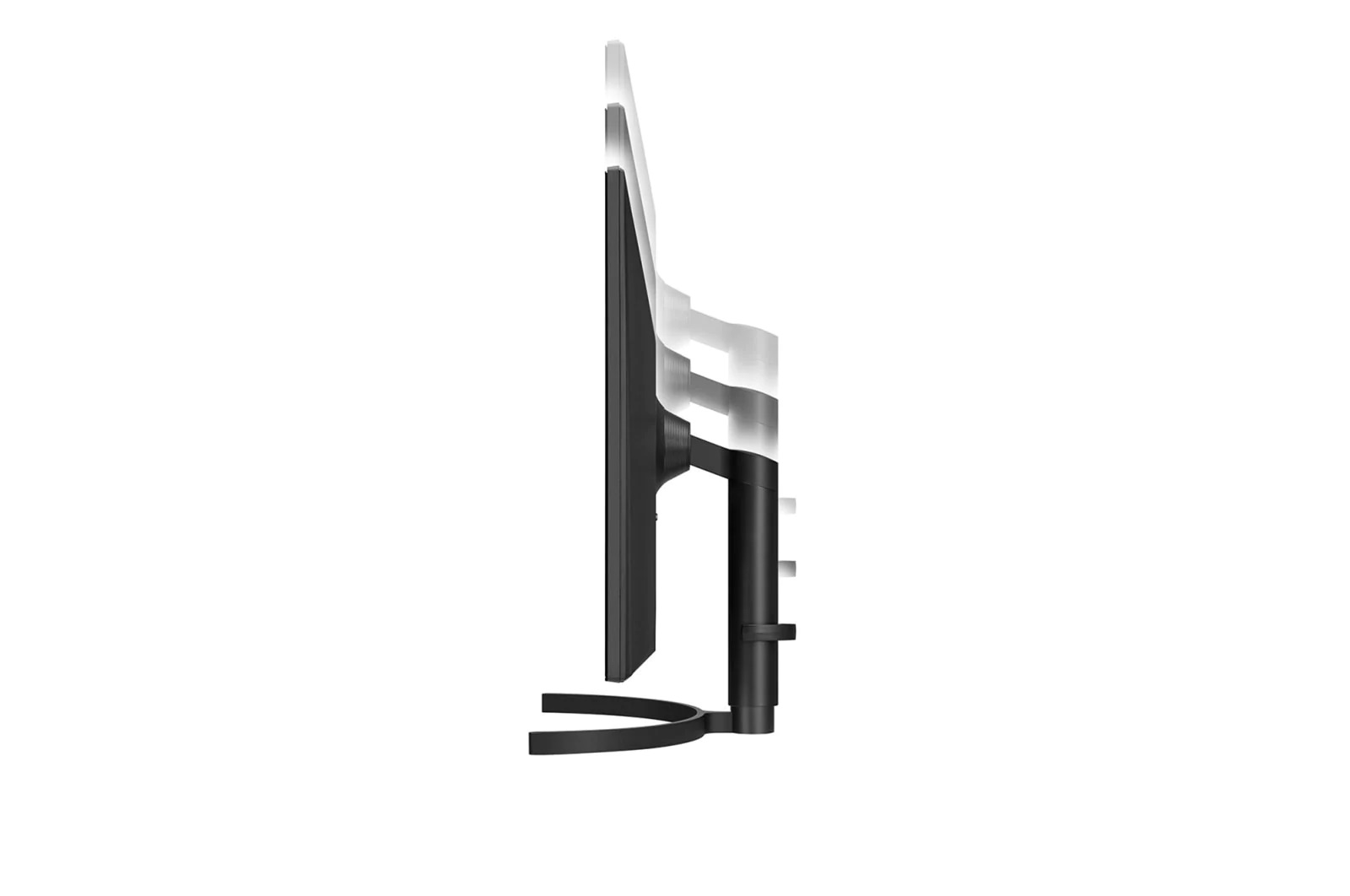

Display Position Adjustments Tilt/Height/Pivot
Down Height 85.3mm
Height Range 110mm
OneClick Stand Yes
Pivot Yes (±90°)
Tilt Yes (-5°~20˚)
Wall Mount Size 100 x 100 mm


Dimension in Shiping (W x H x D) 838 x 553 x 240 mm
Dimension with Stand (W x H x D) 718.2 x 590.0 x 231.2 mm
Dimension without Stand (W x H x D) 718.2 x 414.3 x 45.1 mm
Pallet Stuffing (20ft/40ft/40ft HC) 144EA/336EA/560EA
Weight in Shipping 11.4kg (25.1lb)
Weight with Stand 7.0kg (15.4lb)
Weight without Stand 5.6kg (12.4lb)


IEC (IEC 60601-1 / IEC 60601-1-2) Yes
EN (EN 60601-1 / EN 60601-1-2) Yes
IEC (IEC 60950-1 / IEC 55032, 55024) Yes
EN (EN 60950-1 / EN 55032, 55024) Yes
ctable (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) Yes
FCC (FCC part 15 Class A) Yes
FDA 510 (k) (Class II)
ISO13485 Yes
RoHS Yes


Adapter Yes
Adapter (Colour) Black
Calibration Report (Paper) Yes
Display Port Yes
Display Port (Colour/Length) Black/1.8m
HDMI (Colour/Length) Black/1.8m
Power Cord Yes
Power Cord (Colour/Length) Black/1.8m
