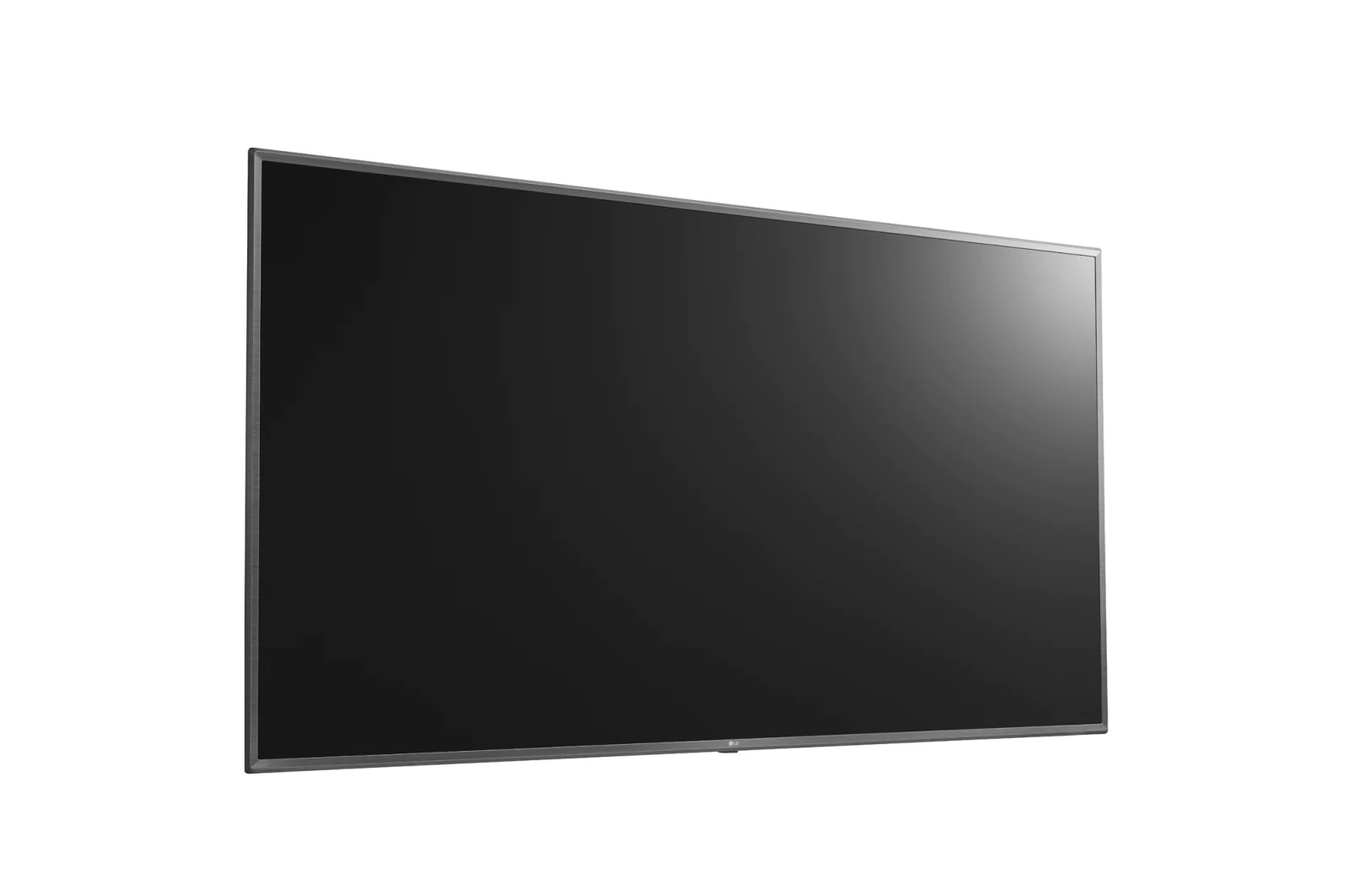

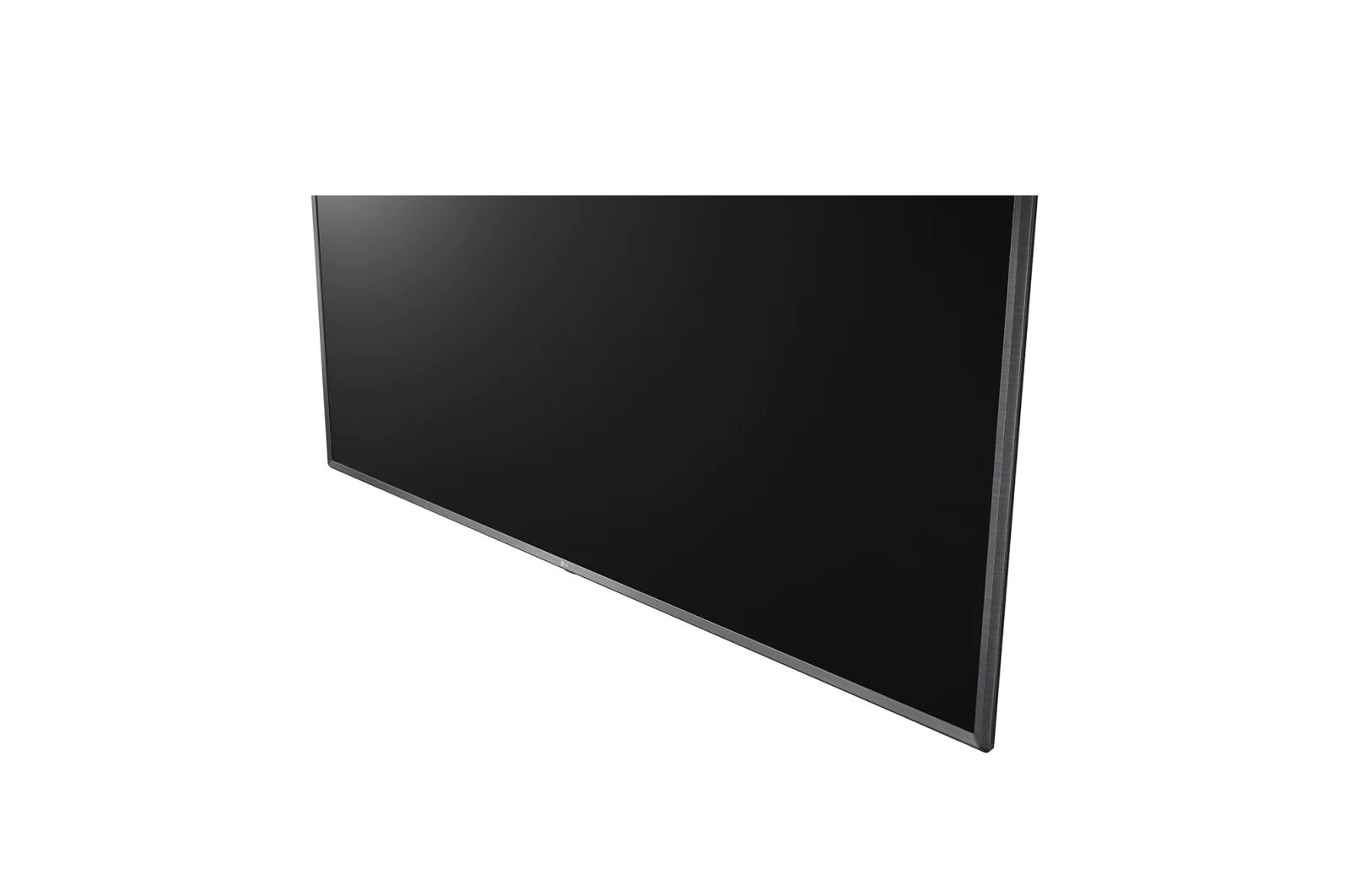

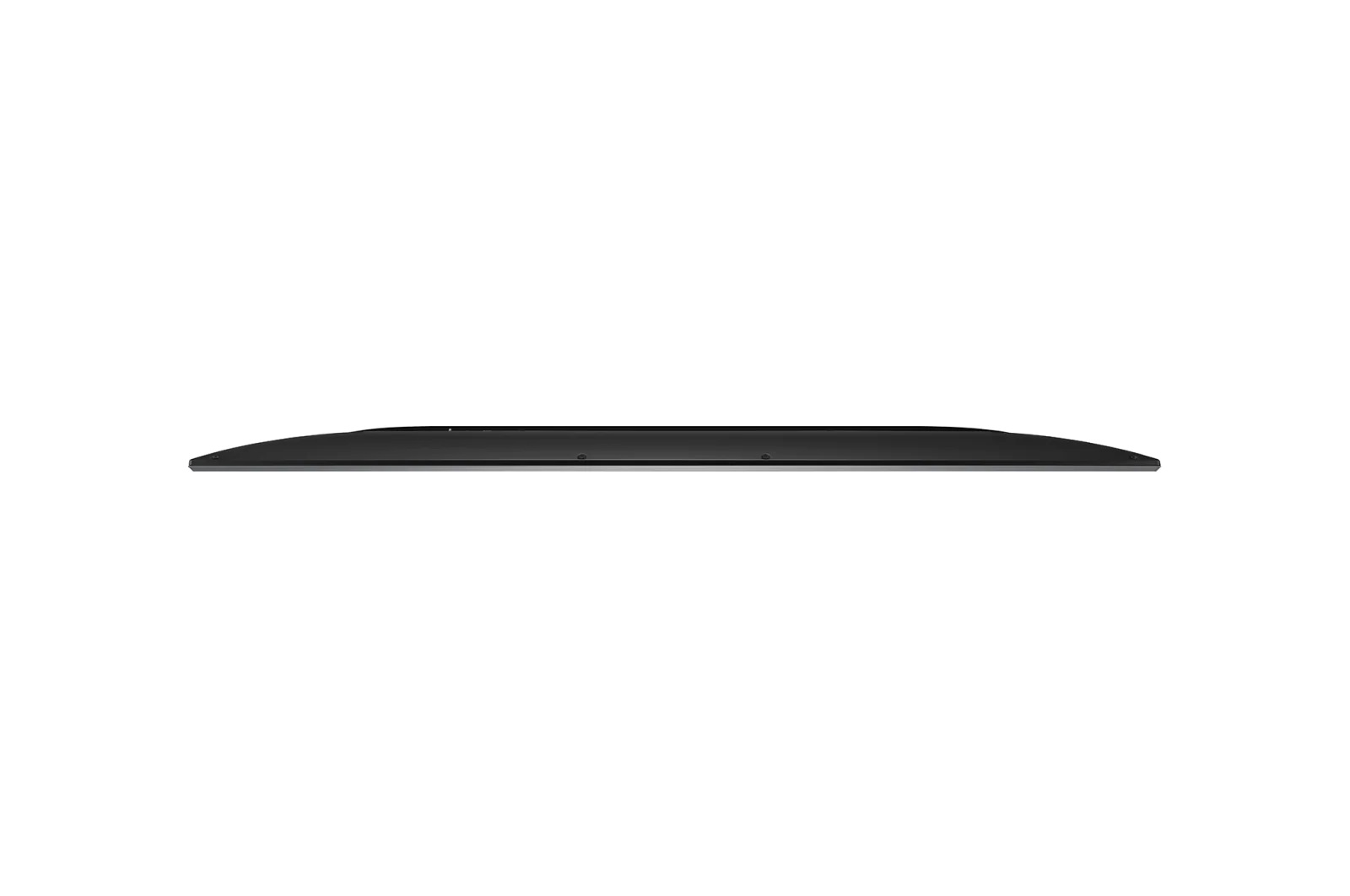

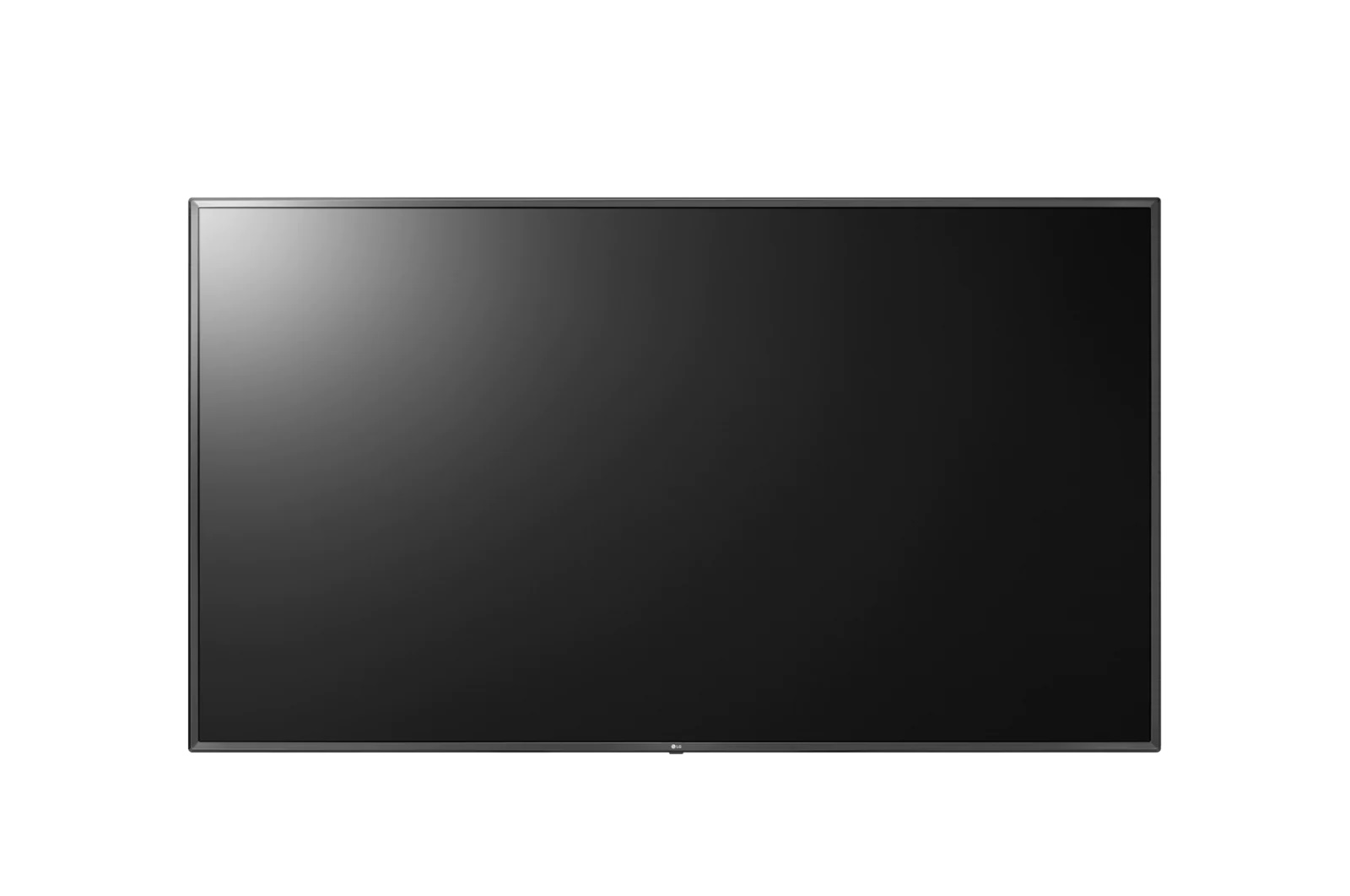

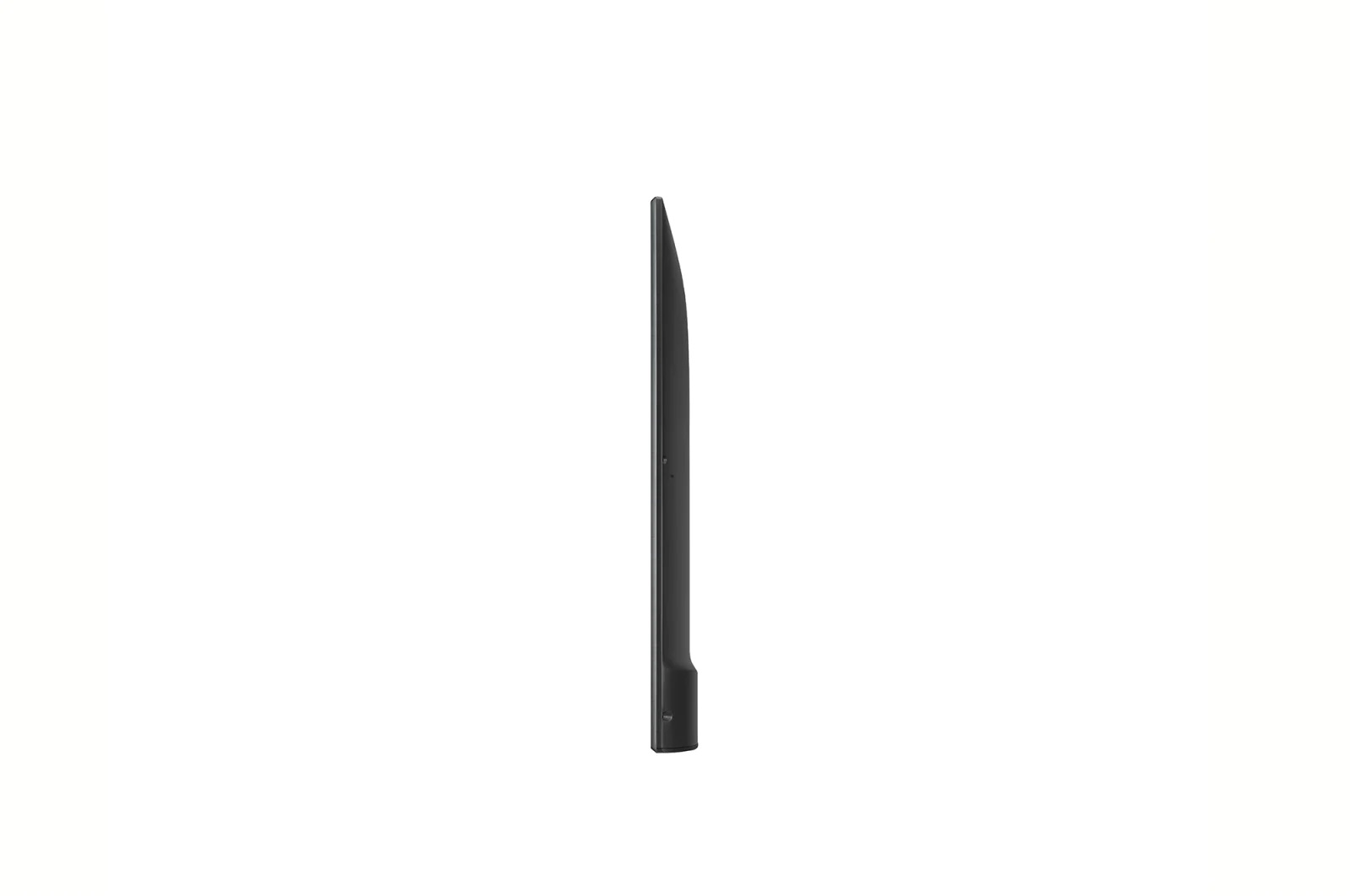

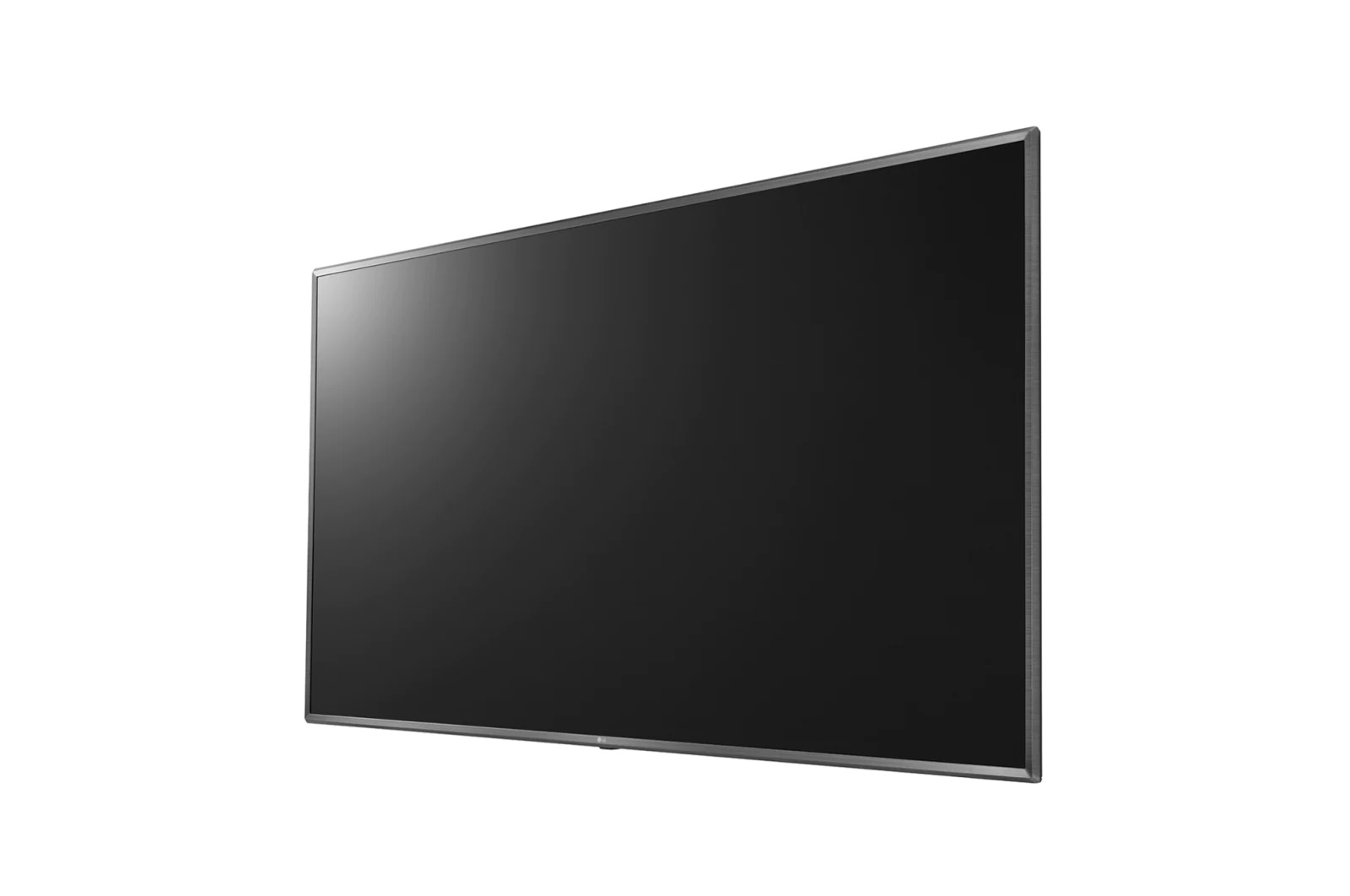

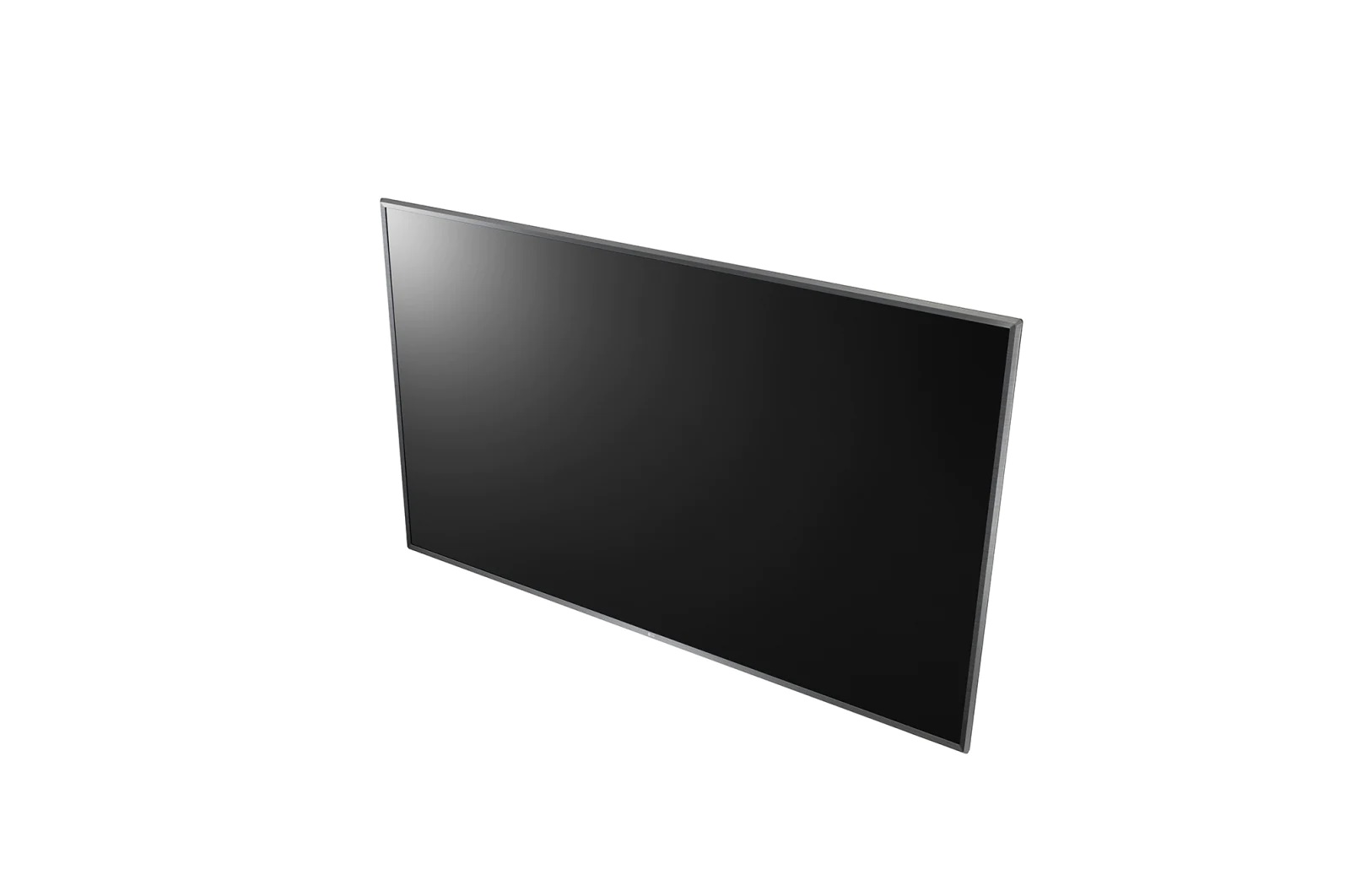

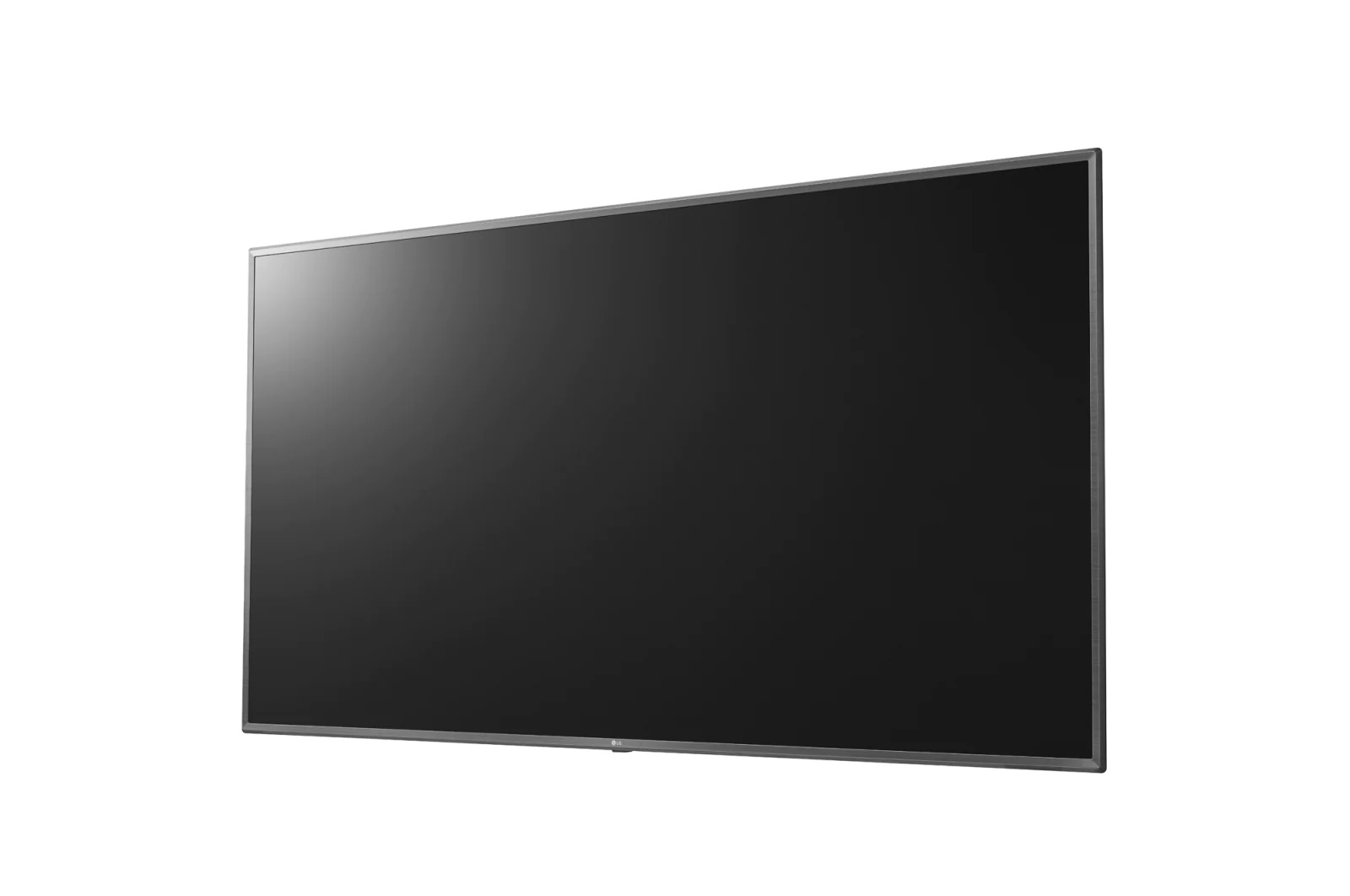

LG 75UL3G-B Monitor
- Order number: SW10292
75UL3G-B 75'' 350 nits 60 Hz UHD Signage Brightness(Typ.) : 350 cd/m² Bezel : 20.2 mm... more
Product information "LG 75UL3G-B Monitor"
75UL3G-B
75'' 350 nits 60 Hz UHD Signage
- Brightness(Typ.) : 350 cd/m²
- Bezel : 20.2 mm (R/L/T), 21.5 mm (B)
- Depth : 88.8 mm
- Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, Audio Out
- Built-in Speaker

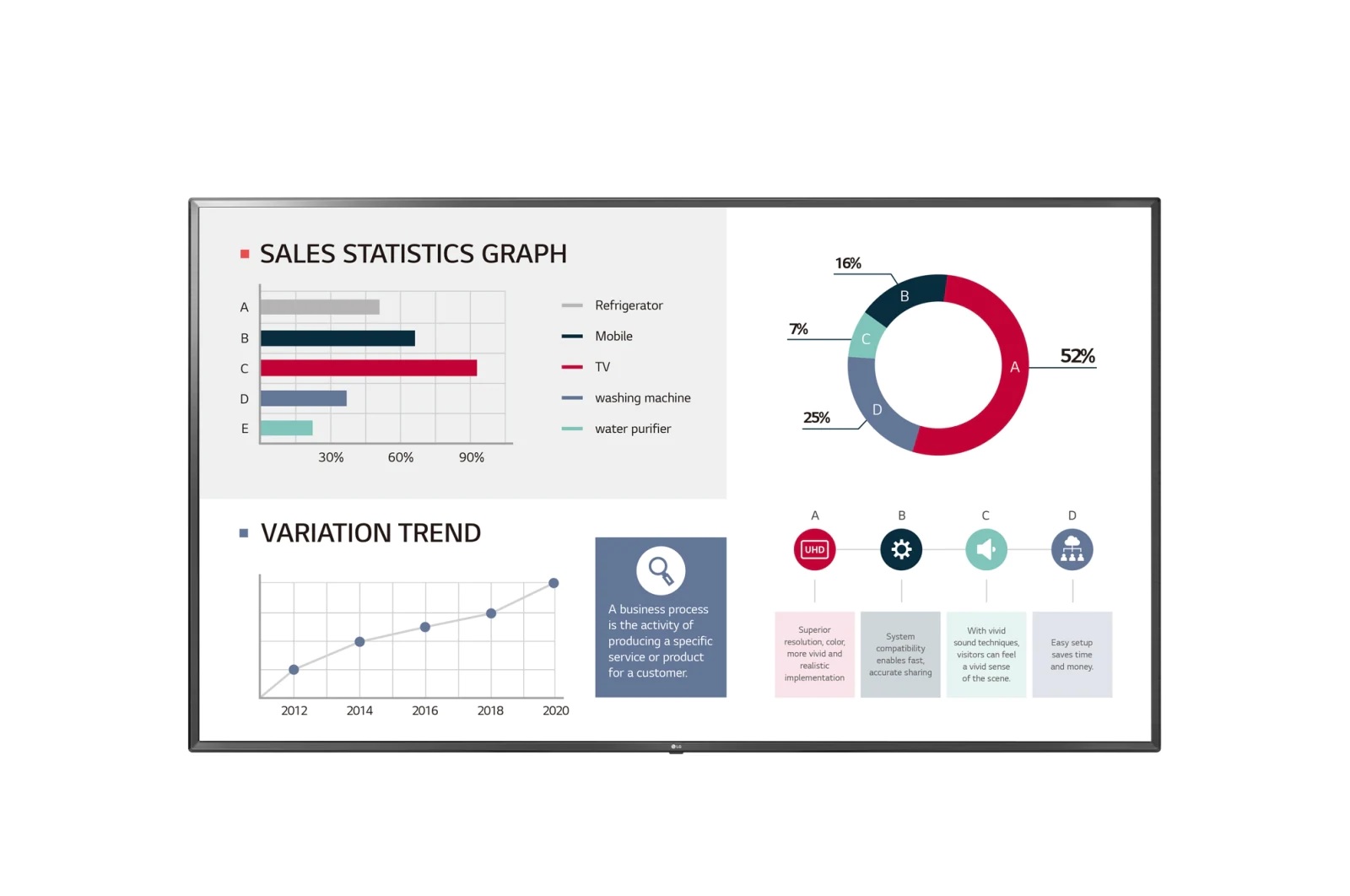

ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the colour and details of the content more vivid and realistic. In addition, the wide viewing angle applied with the LG IPS Panel, provides clear content with no distortion.
High Efficiency Video Coding
The UL3G series supports HEVC which efficiently compresses/ decompresses high-capacity UHD content, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
High Performance SoC with webOS
Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
The LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatibility with AV Control System
The UL3G series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatibility with Conferencing System
For the optimum visual meeting, the UL3G series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UL3G series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Related links to "LG 75UL3G-B Monitor"
Available downloads:
Panel Screen Size 75" Panel Technology IPS Back Light Type... more
Specifications "LG 75UL3G-B Monitor"
Panel
| Screen Size | 75" |
| Panel Technology | IPS |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness(Typ.,cd/m²) | 350 |
| Contrast Ratio | 1.200:1 |
| Dynamic CR | 1,000,000:1 |
| Colour gamut | DCI 82% |
| Viewing Angle (H x V) | 178 x 178 |
| Colour Depth | 8bit+FRC, 1.07B colours |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze 1% |
| Life Time (Min.) | 30,000 Hrs |
| Operation Hours (Hours / Day) | 16 / 7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Input | HDMI (3, HDCP2.2/1.4), USB 2.0 Type A (2) |
| Output | Audio |
| External Control | RS232C In/out (4pin phone-jack), RJ45 (LAN) In |
Mechanical Specification
| Bezel Color | Dark Meteo Titan |
| Bezel Width | R/L/T : 20.2mm, B : 21.5mm |
| Weight (Head) | 34.6 kg |
| Weight (Head+Stand) | 35.4 kg |
| Packed Weight | 45.7 kg |
| Monitor Dimension (W × H × D) | 1693 x 978 x 73.4mm (88.8mm w/speaker) |
| Monitor incl. Stand Dimensions (W x H x D) | 1693 x 1048 x 345mm |
| Carton Dimensions (W × H × D) | 1823 x 1116 x 231mm |
| Handle | No |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Key Feature
| Internal Memory | 8GB |
| Wi-Fi | Built-in |
| Sensor | Temperature Sensor, Auto Brightness Sensor |
| Local Key Operation | Yes (Power On/Off only) |
| webOS ver. | webOS 4.1 |
| Embedded CMS | Local Contents Scheduling, Group Manager |
| USB Plug & Play | Yes |
| Fail over | Yes |
| SW - Background Image - Booting Logo Image | Yes |
| SW - Background Image - No Signal Image | Yes |
| Sync mode | RS-232C Sync, Local Network Sync |
| Screen Share | Yes |
| Video Tag | Yes (4, Max One HDMI input) |
| Play via URL | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Gapless Playback | Yes |
| Setting Data Cloning | Yes |
| SNMP | Yes |
| ISM Mode (Image Sticking Minimization) | Yes |
| Auto Set ID | Yes |
| Status Mailing | Yes |
| Control Manager | Yes |
| 3rd Party Control Compatibility | Yes |
| Beacon | Yes |
| HDMI-CEC | Yes |
| SI Server Setting | Yes |
| webRTC | Yes |
| Pro:Idiom | Yes |
Environment Conditions
| Operation Temperature | Landscape : 0 °C to 40 °C Portrait : 0 °C to 35 °C |
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
Power Consumption
| Typ. / Max. | 155W / 240W |
| Smart Energy Saving | 108.5W |
| BTU (British Thermal Unit) | 529 BTU/Hr(Typ.), 819 BTU/Hr(Max) |
| DPM | 0.5W |
| Power off | 0.5 W |
Sound
| Speaker | Yes |
Certification
| Safety | CB |
| EMC | FCC Class "A" / CE |
| ErP / Energy Star | Yes (EU Only) / No |
Software Compatibility
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control+ / Control |
| SuperSign WB | Yes |
| SuperSign Media Editor | Yes |
| Signage365Care | Yes |
Language
| OSD | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic |
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand, Cable Holder |
