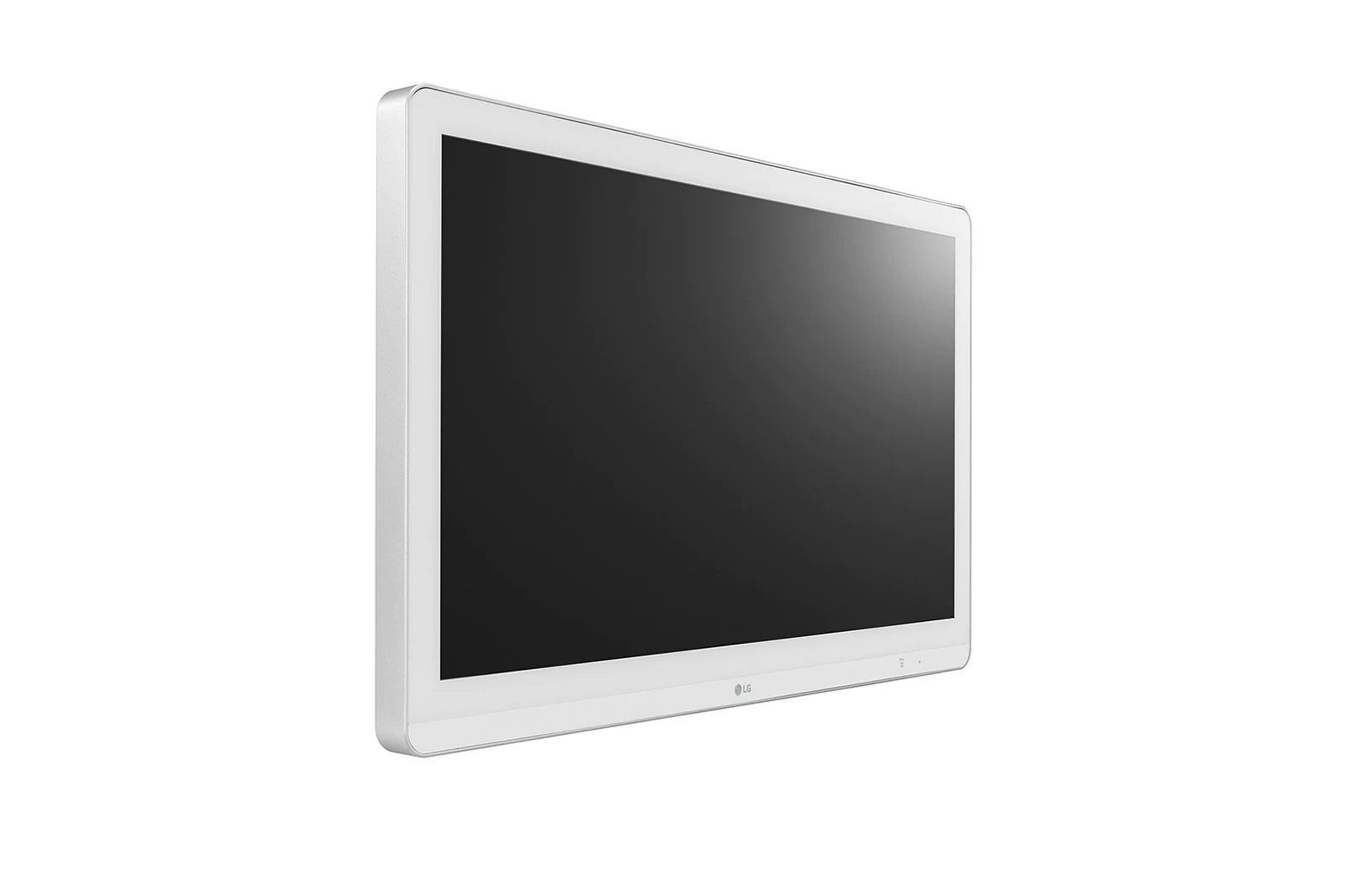

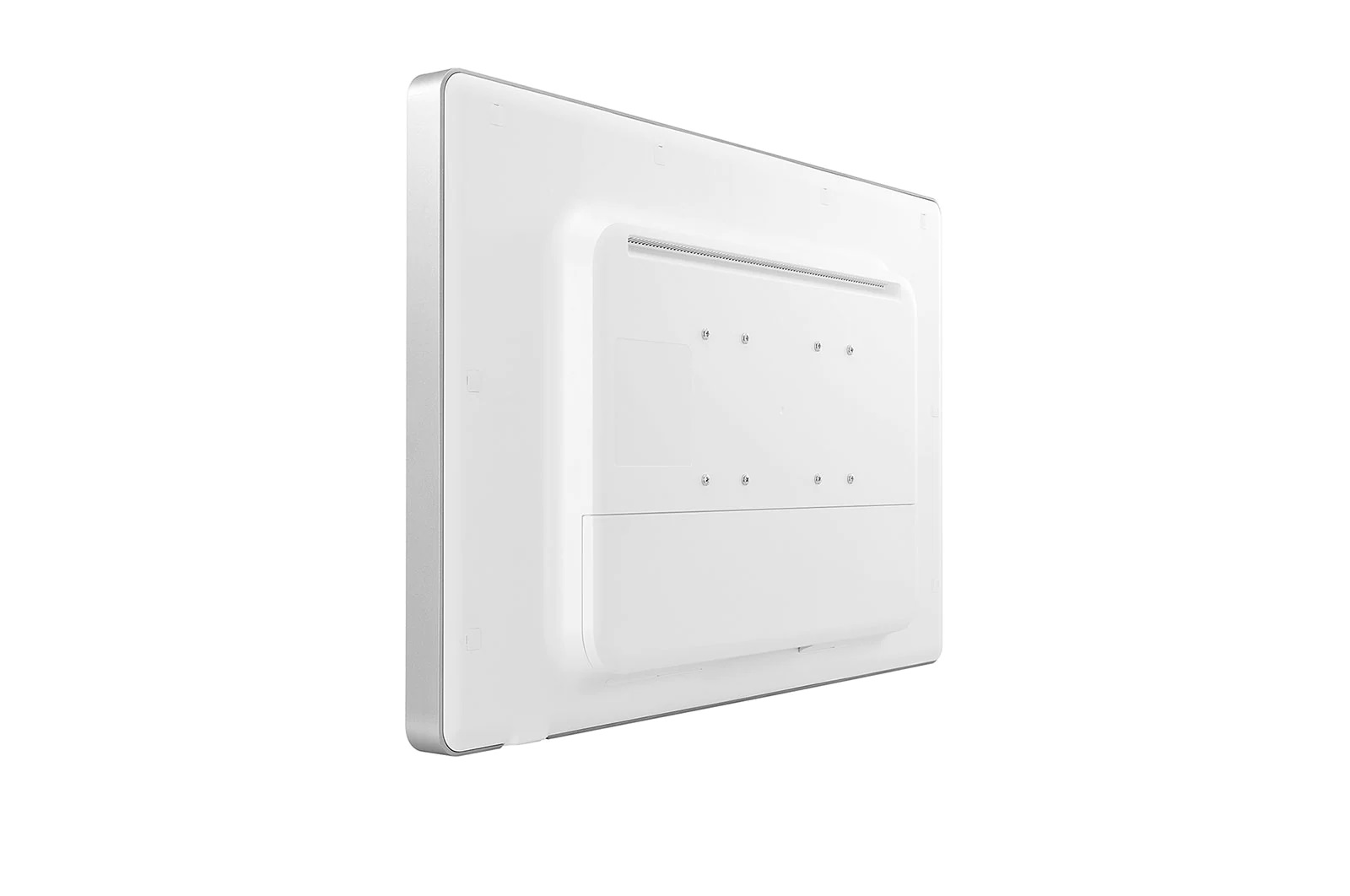

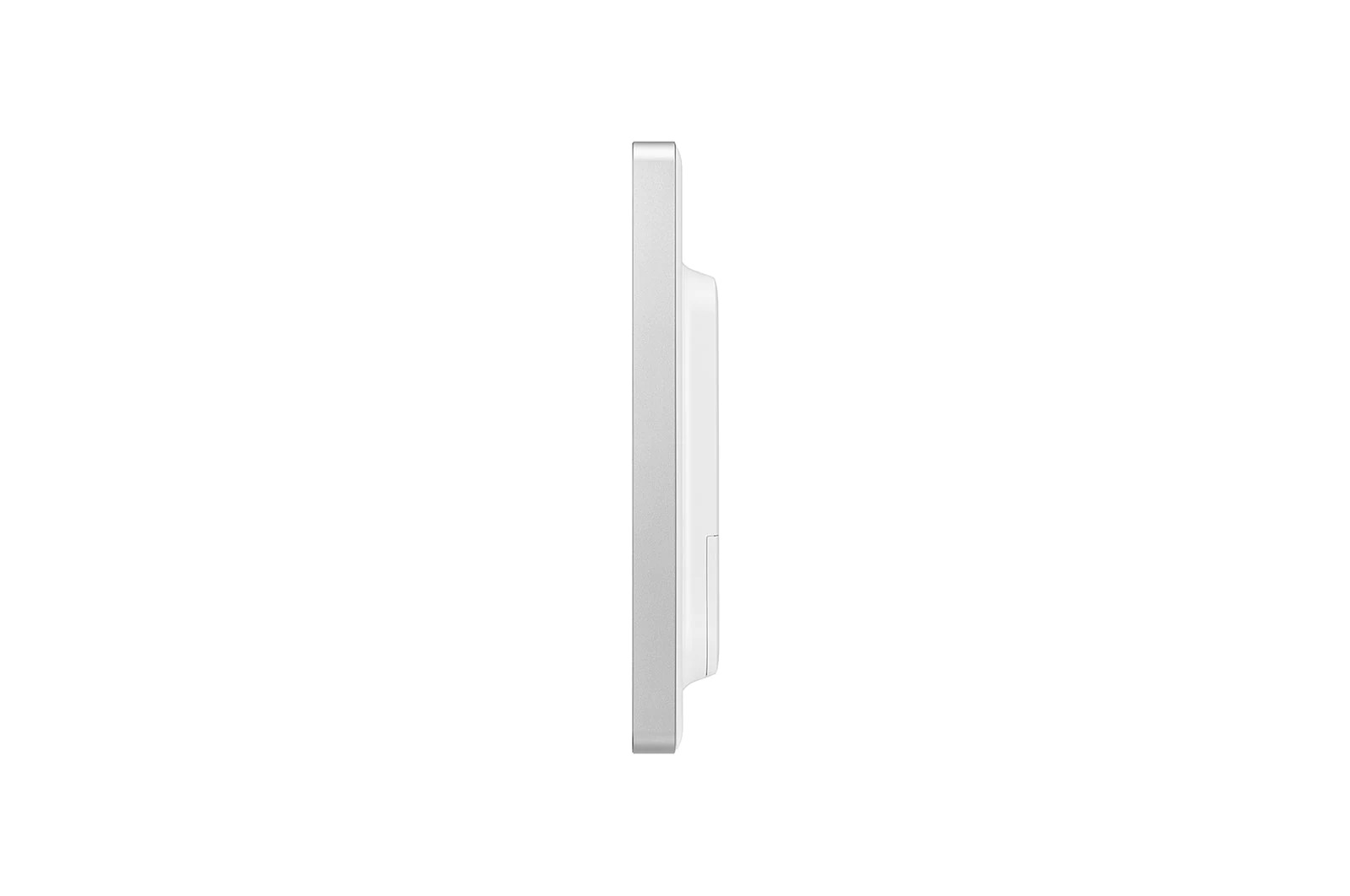

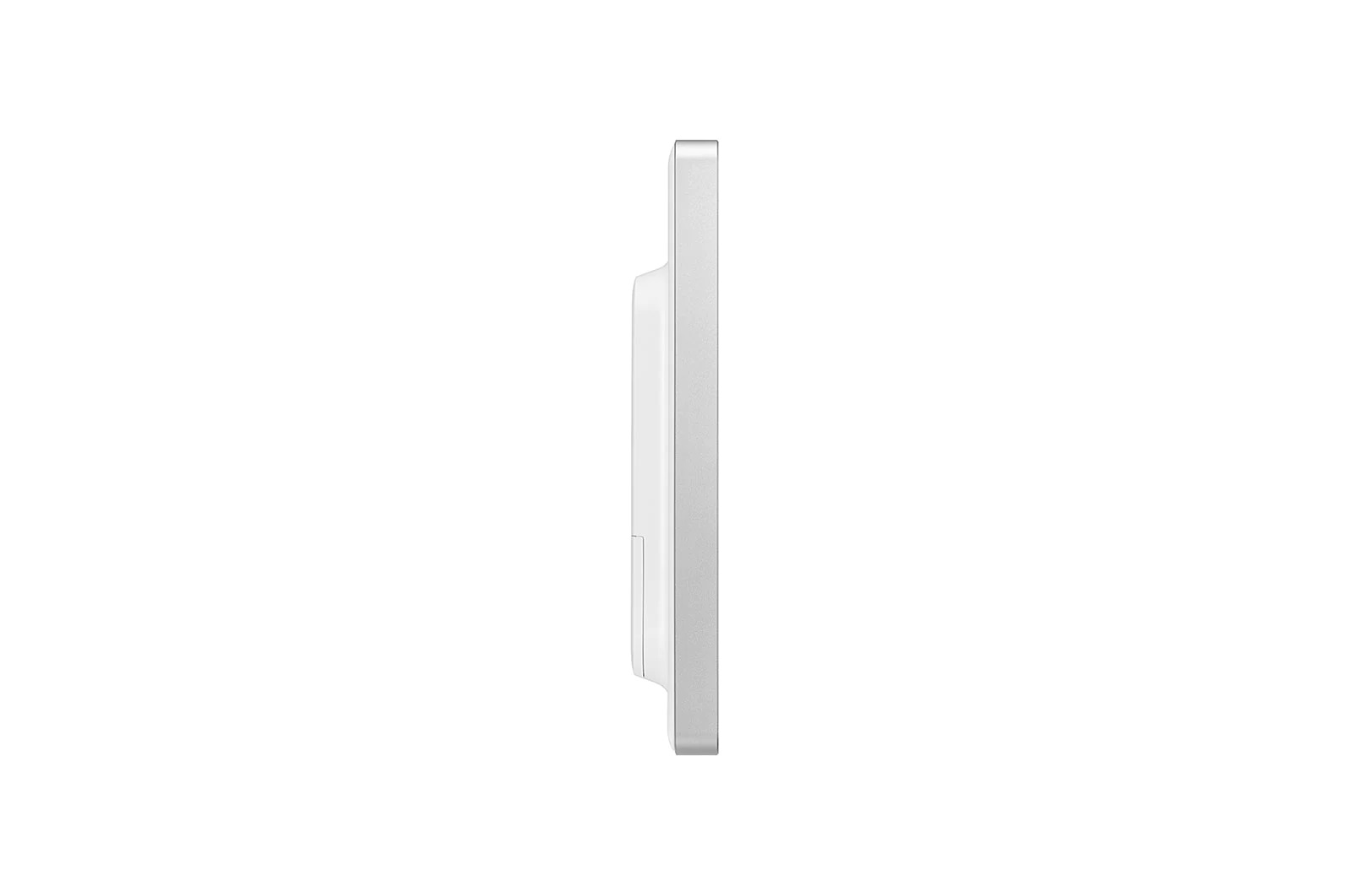

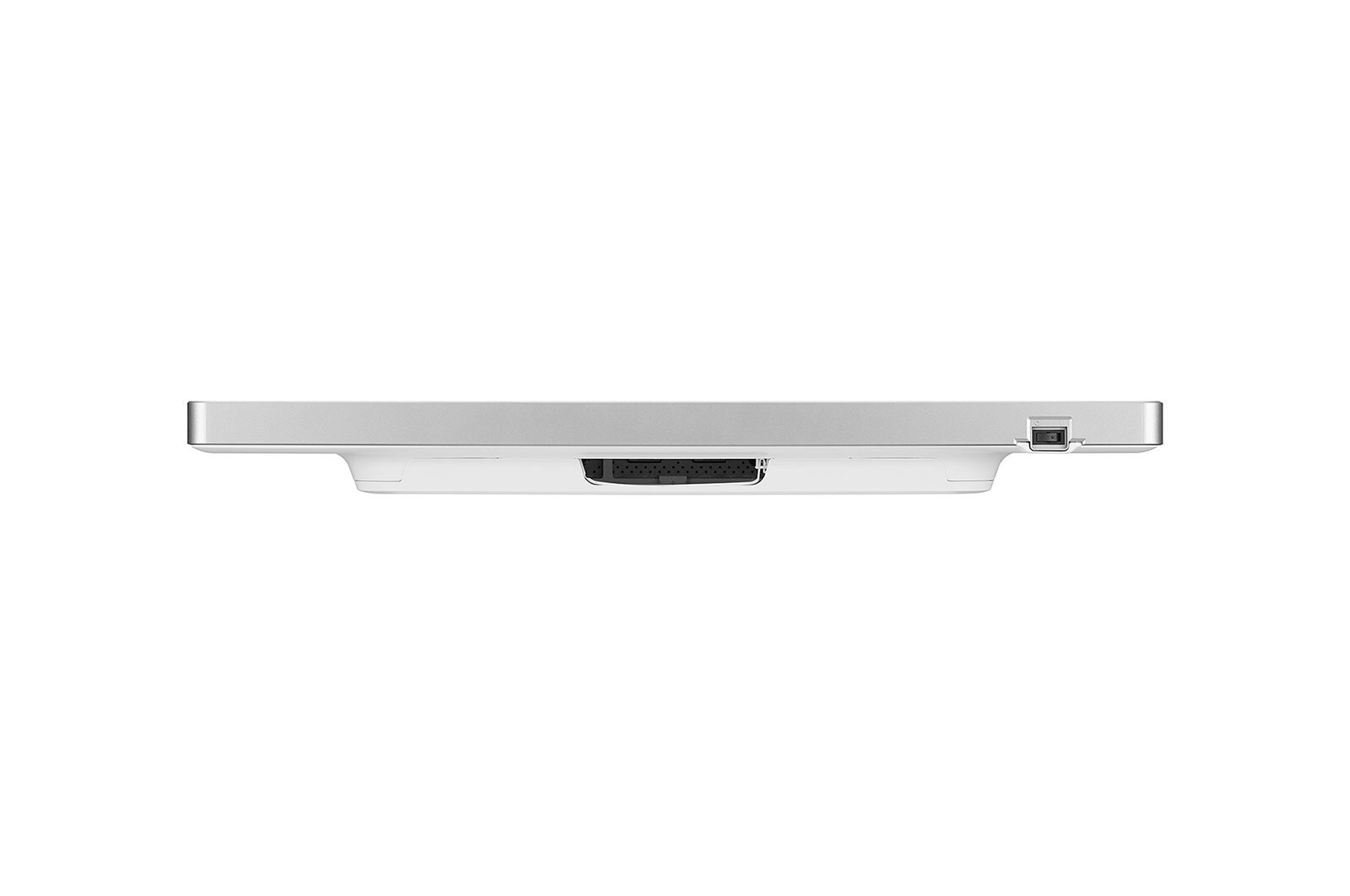

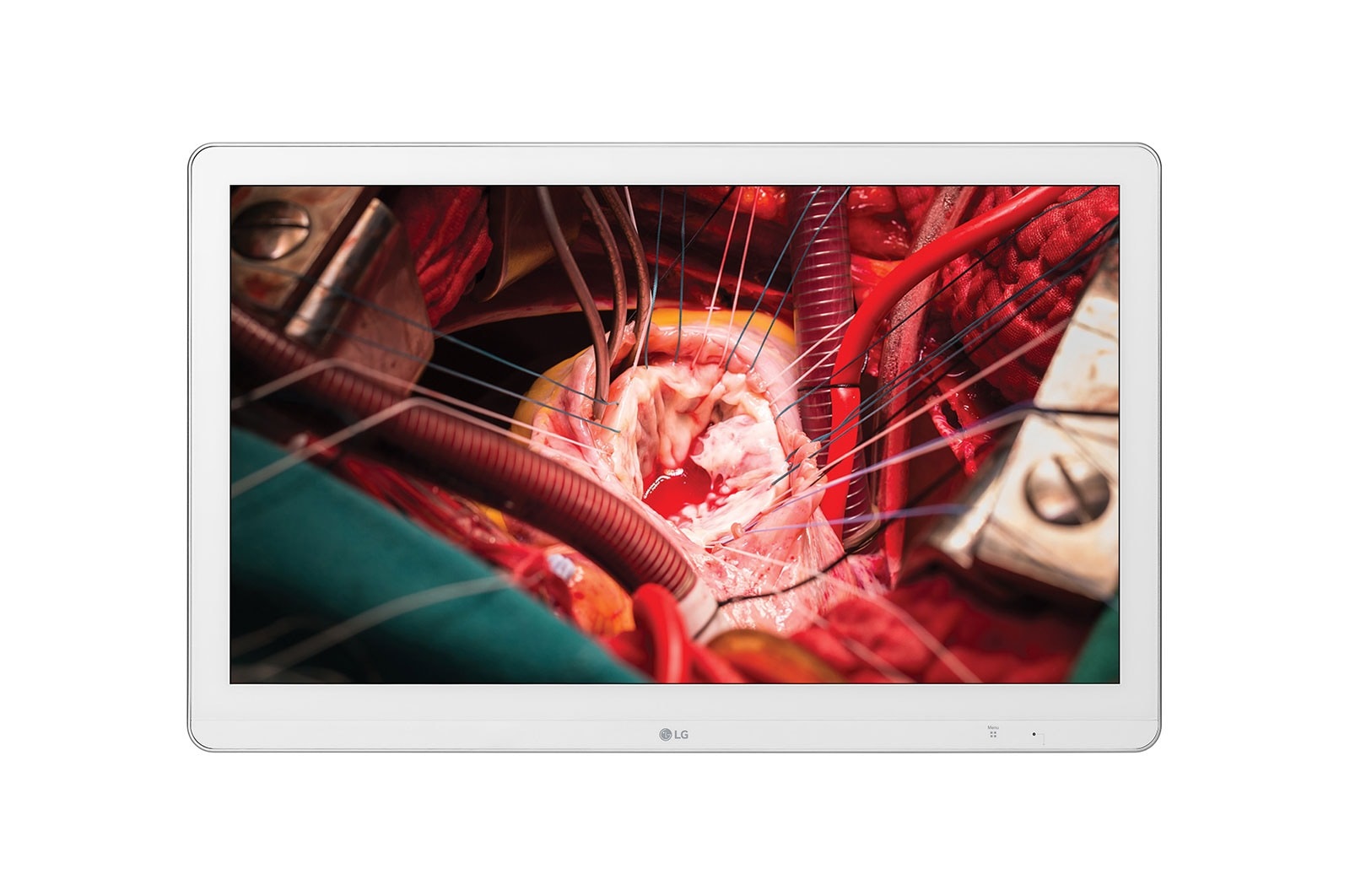

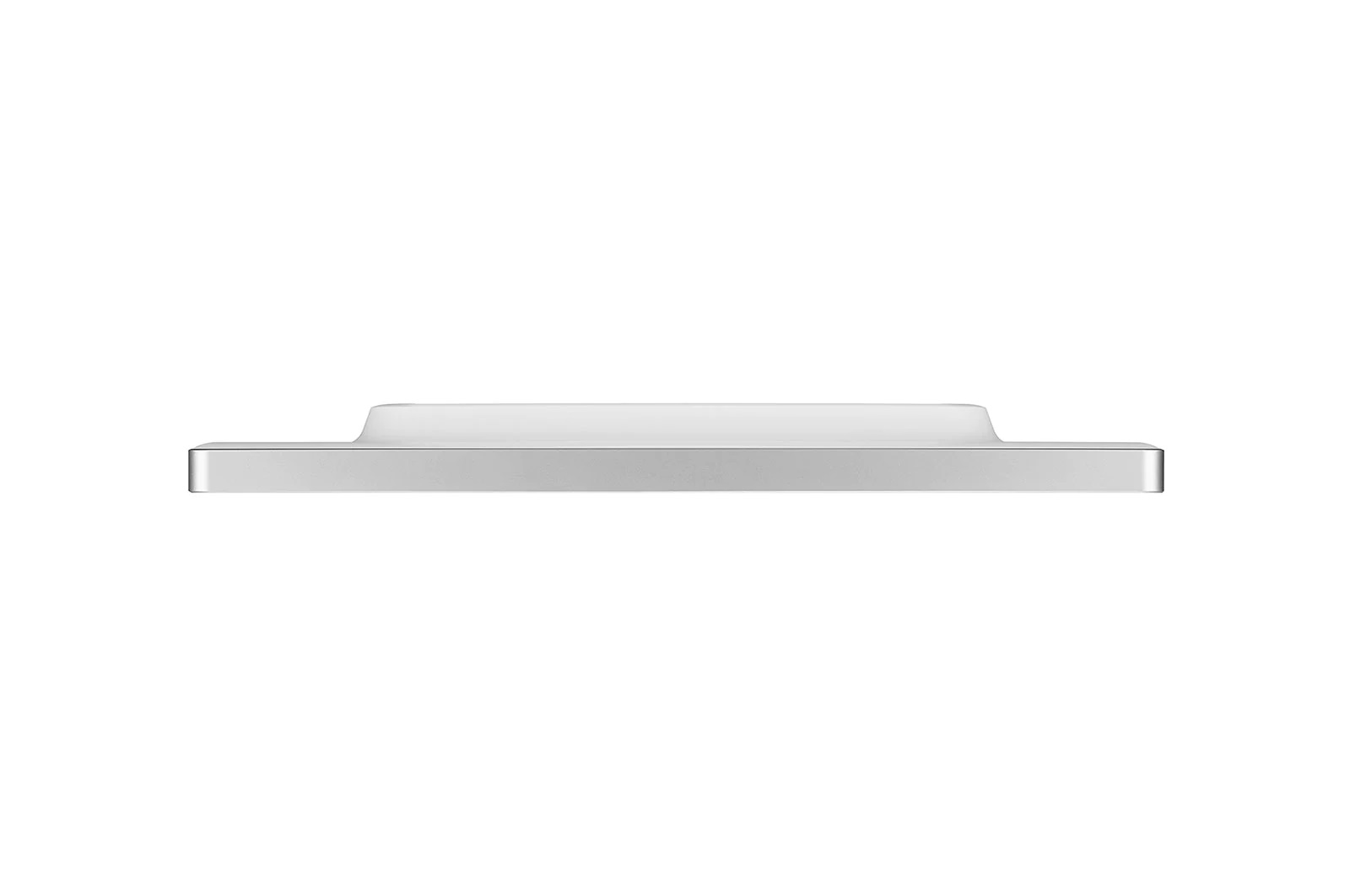

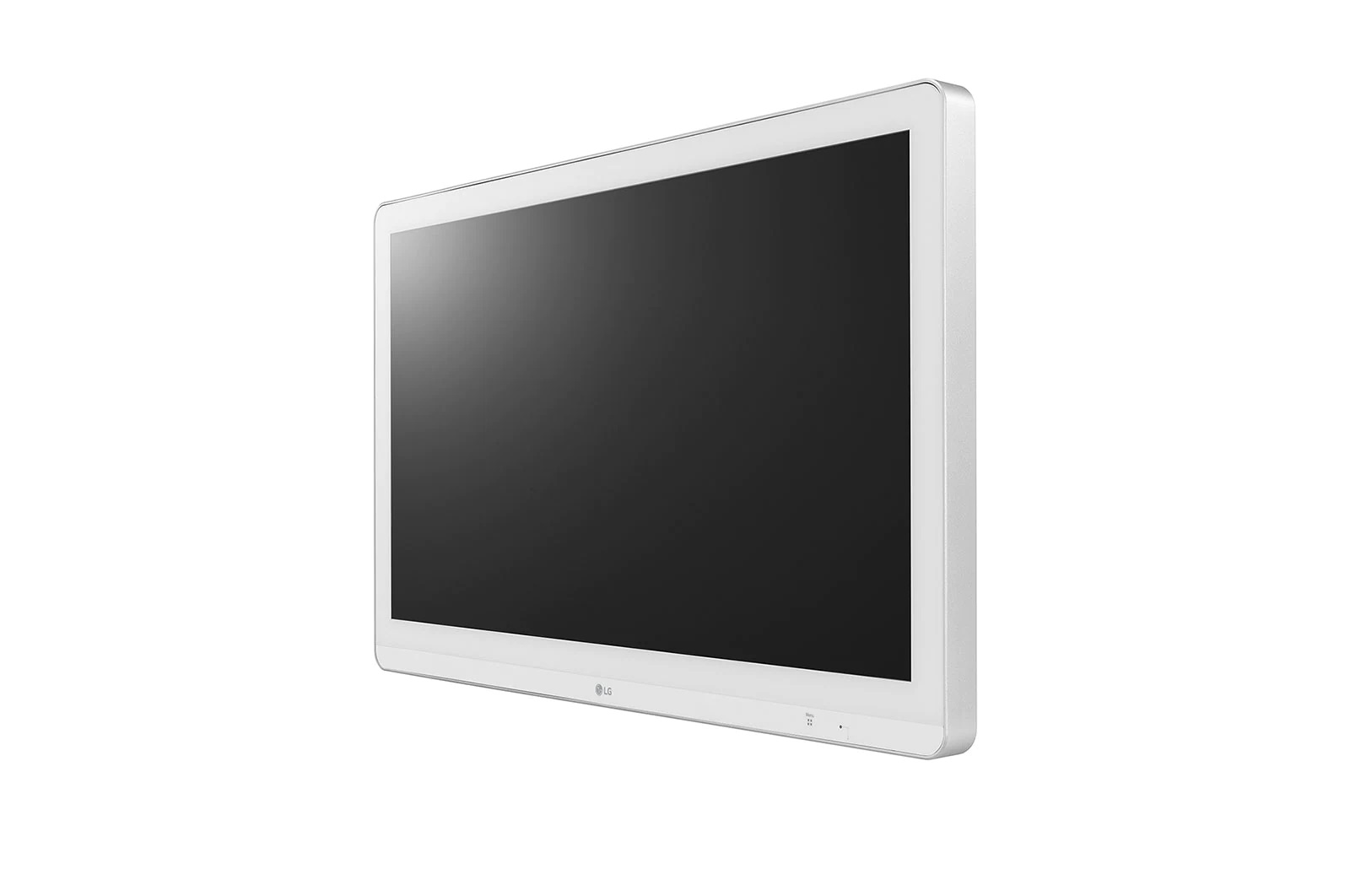

LG 27HK510S 27" HD Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Ready to ship today,
Delivery time appr. 1-3 workdays

  • SW10289
27HK510S-W 27'' LG Full HD Surgical Monitor 27"FHD IPS Display (1920x1080) sRGB... more
Product information "LG 27HK510S 27" HD Surgical Monitor"

27'' LG Full HD Surgical Monitor

  • 27"FHD IPS Display (1920x1080)
  • sRGB 115%(Deep Red)
  • Brightness Stabilization
  • Dustproof & Waterproof
  • Protection Glass
  • Flicker Safe

A Display Optimized for Compatibility

The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Full HD IPS Display, the LG surgical monitor improves work efficiency.

sRGB 115%(Deep Red)

The Full HD IPS display with sRGB 115% (Deep Red) is designed to fit with other Full HD surgical devices. It enables surgeons to view accurate, realistic images especially in the red color spectrum.

Brightness Stabilization

The LG surgical monitor carefully measures and sets every grayscale tone to create a monitor compliant with DICOM Part 14. Furthermore, LG’s surgical monitors offer stabilized brightness settings.

Dustproof & Waterproof

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the back, securing them from any direction.

Protection Glass

The LG surgical monitor with protection glass provides a more durable display by safeguarding the monitor from water and bodily fluids and making it easier to clean.

Reduces Visual Fatigue

Flicker Safe reduces the onscreen flicker level to almost zero, which helps minimize eye strain and eye fatigue. By combining Flicker Safe with the IPS technology, users can comfortably work throughout the day.
Related links to "LG 27HK510S 27" HD Surgical Monitor"
DISPLAY Aspect Ratio 16:9 Backlight Dimming Technology Global... more
Specifications "LG 27HK510S 27" HD Surgical Monitor"


Aspect Ratio 16:9
Backlight Dimming Technology Global Dimming
Backlight Technology LED
Backlight Type Edge
Brightness (Typ.) 1000cd/m²
Brightness (Stabilization) 600cd/m²
Colour Bit 10bit
Colour Depth (Number of Colours) 1.07B
Colour Gamut (Typ.) sRGB 115% (Area),
sRGB over 99% (Coverage)
Contrast Ratio (Typ.) 1000:1
Contrast Ratio with DFC Mega
Panel Type IPS
Peak Brightness (Min.) 650cd/m² (Peak)
Peak Brightness (Typ.) 800cd/m² (Peak)
Pixel Pitch (H x V) 0.3114mm x 0.3114mm
Resolution 1920 x 1080
Response Time (GTG) 14ms (Off-setting), 5ms (Faster-setting)
Size (Inch) 27
Size (cm) 68.58
Surface Treatment Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Viewing Angle (CR≥10) 178°(Right/Left), 178°(Up/Down)


Hot Key Yes (2keys)
Brightness stabilization Yes
Black Stabilizer Yes
Factory Calibration Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration Yes (True Color Pro)
DICOM Compliant Yes
Colour Temperature 6500K/7500K/9300K
Manual (5000K ~ 10000K)
Flicker safe Yes
OSD Language 17 Language
PBP Yes (2PBP)
Picture Mode (SDR )Custom, Mono, sRGB,EBU, REC709, SMPTE-C, DICOM, Calibration 1, Calibration 2
Failover Input Switch Yes
Smart Energy Saving Yes
Super Resolution+ Yes
Uniformity Yes

SW Application

True Colour Pro Yes


3G-SDI Yes (3G,INx1/OUTx1)
D-Sub Yes (DSUB to DVI-I Gender Cable)
D-Sub (Max. Resolution at Hz) 1920 x 1080 @ 60hz
D-Sub (H Frequency) 30 ~ 83 khz
D-Sub (V Frequency) 56 ~ 75 hz
DVI DVI-I (In)/DVI-D (Out)
DVI (Max Resolution at Hz) 1920 x 1080 at 60Hz
DVI (H Frequency) 30 ~ 83 khz
DVI (V Frequency) 56 ~ 75 hz
HDMI Yes (1ea)
HDMI (HDCP Version) 2.2
HDMI (Max. Resolution at Hz) 1920 x 1080 at 60Hz
HDMI (H Frequency) 30 ~ 83 kHz
HDMI (V Frequency) 56 ~ 75 hz
HDMI Version 1.4
Composite Yes (1ea)
S-Video Yes (1ea)
Component Yes (DSUB to DVI-I Gender Cable)
RS-232 Yes (1ea)
USB Downstream Port Yes (1ea/ver3.0)
USB Upstream Port Yes (1ea/ver3.0)
[Location] Bottom


AC Input 100-240Vac, 50/60Hz
DC Output 19 - 24V, 6.32A - 5.0A (24V Ready)
Power Consumption (DC Off) Less than 0.3W
Power Consumption (Max.) 120W
Type External Power (Adapter)


Borderless Design Normal
Colour (Back Cover) White
Colour (Front Cabinet) White (C/Glass)
Colour (Middle Cabinet) Silver
Display Position Adjustments No Stand
Down Height No Stand
Height Range No Stand
Machanical Power Switch Yes
OneClick Stand No Stand
Pivot No Stand
Swivel No Stand
Tilt No Stand

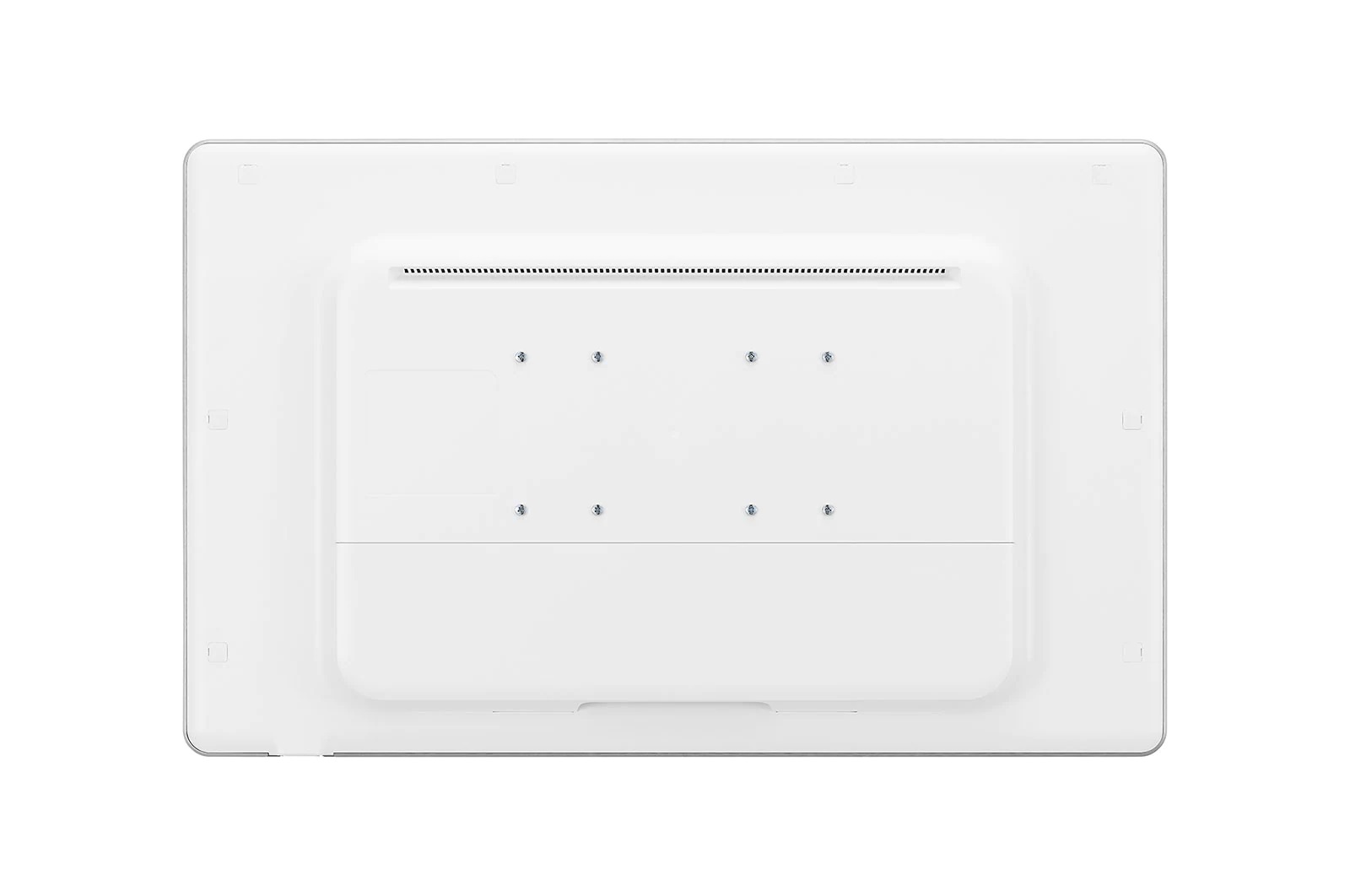

Wall Mount Size 200 x 100mm/100 x 100mm


Dimension in Shiping (W x H x D) 743 x 496 x 157 mm
Dimension with Stand (W x H x D) No Stand
Dimension without Stand (W x H x D) 656.4 x 412.9 x 62.2mm
Pallet Stuffing (20ft/40ft/40ft HC) 364/832/960
Weight in Shipping 11.3kg (24.9lb)
Weight with Stand No Stand
Weight without Stand 7.7kg (17lb)


IEC (IEC 60601-1/IEC 60601-1-2) Yes
EN (EN 60601-1/EN 60601-1-2) Yes
IEC (IEC 60950-1/IEC 55032, 55024) Yes
EN (EN 60950-1/EN 55032, 55024) Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) Yes
FCC (FCC part 15 Class A) Yes
FDA Registration (Class I)
ISO13485 Yes
RoHS Yes
IP (Front/Except for front) IP35/IP32
Vandal-proof IK06


Adapter Yes
Adapter (Colour) White
Calibration Report (Paper) Yes
D-Sub DSUB to DVI-I Gender Cable
D-Sub (Colour/Length) Black/0.2m
DVI-D (Colour/Length) Black/1.8m
Display Port Yes
Display Port (Colour/Length) Black/1.8m
HDMI (Colour/Length) Black/1.8m
Power Cord Yes
Power Cord (Colour/Length) White/1.5m


time/years 3
3 (10,000hr)
