LG 32HL714S 31.5" 12G-SDI -4K Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Please get in touch for the current lead times.

  • SW10290
32HL714S-W LG 31.5'' 4K IPS Surgical Monitor 31.5" 4K (3840x2160) IPS Support HDR10... more
Product information "LG 32HL714S 31.5" 12G-SDI -4K Surgical Monitor"

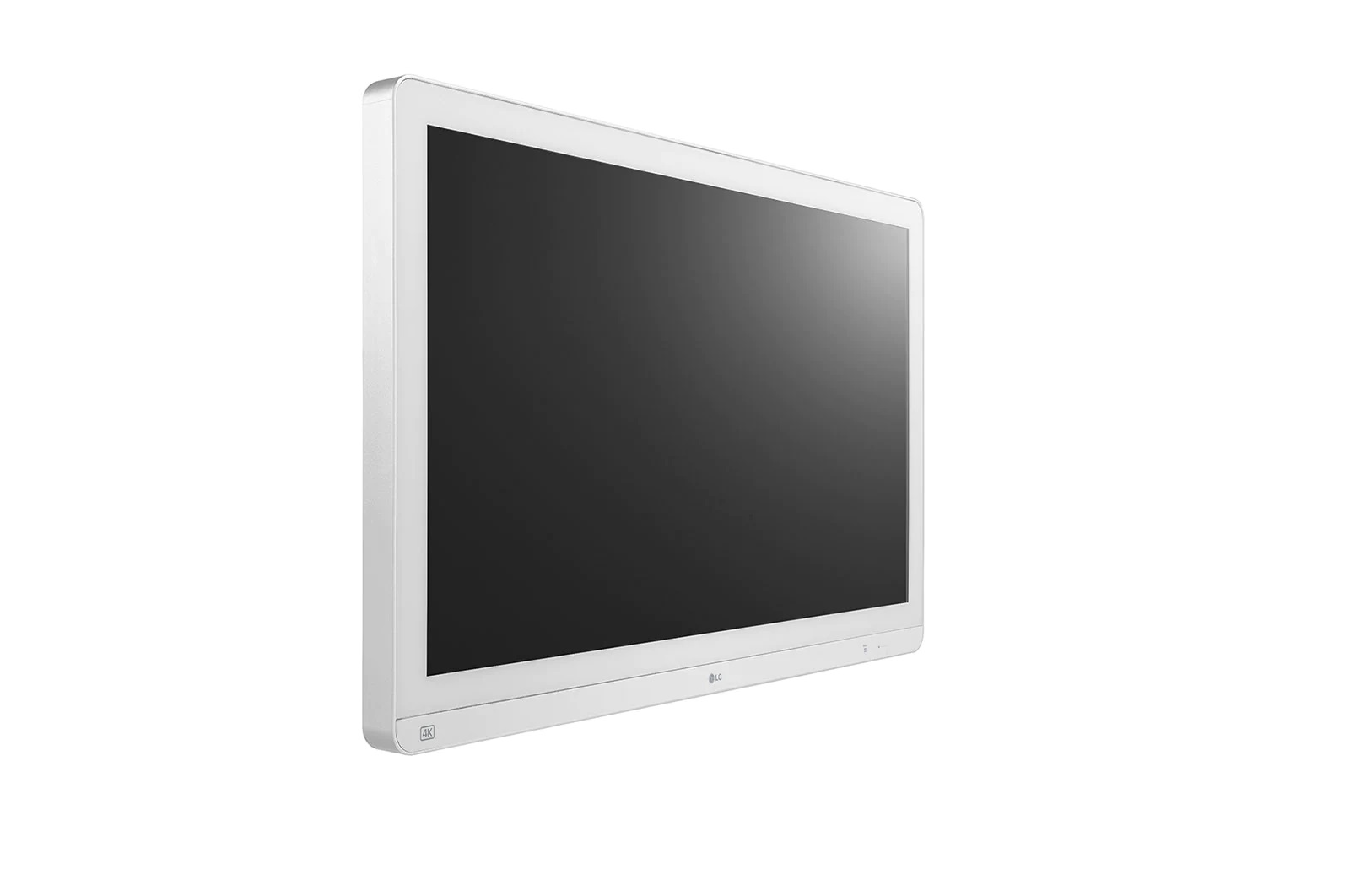

LG 31.5'' 4K IPS Surgical Monitor

  • 31.5" 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Failover Input Switch
  • 12G-SDI Support
  • Up to 4PBP, PIP

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

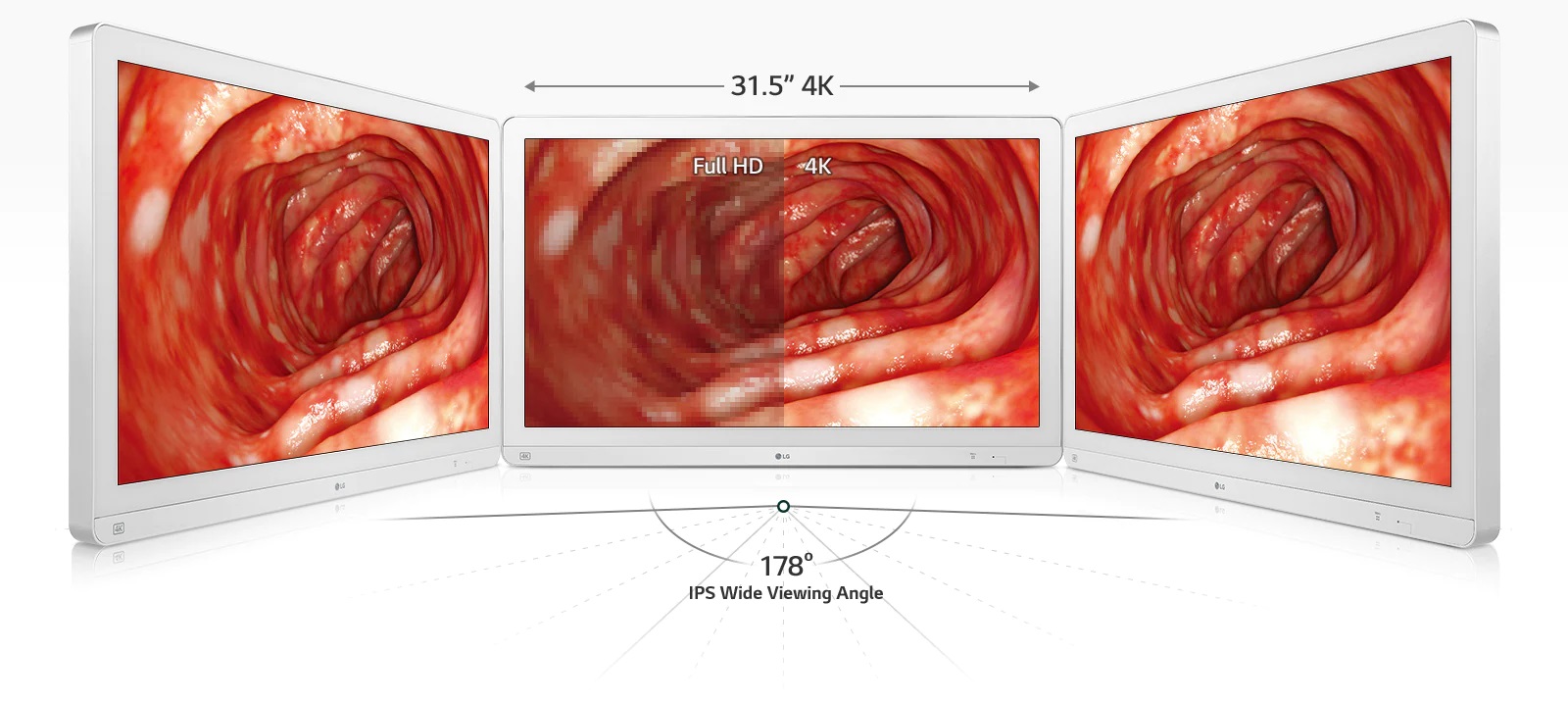

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

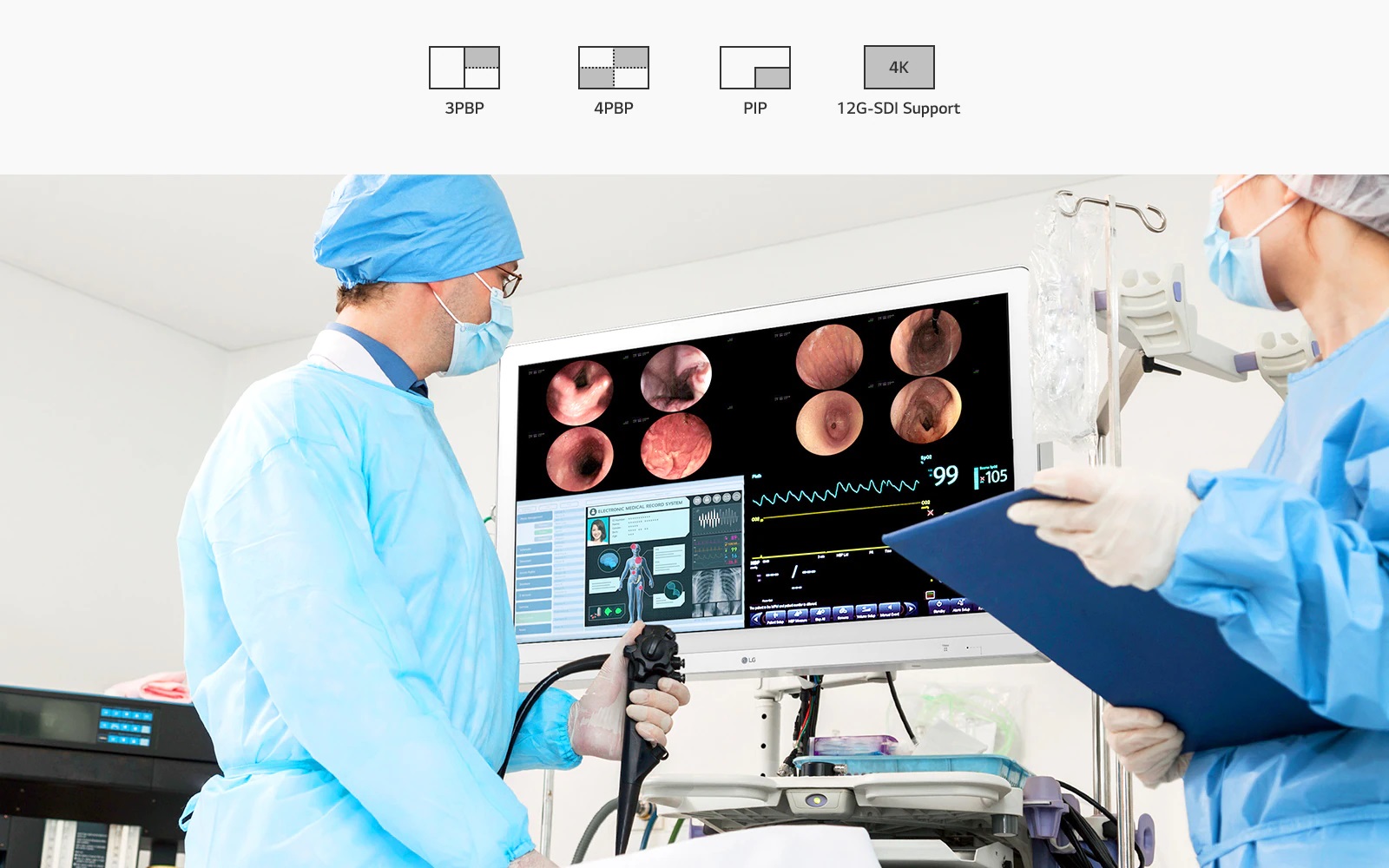

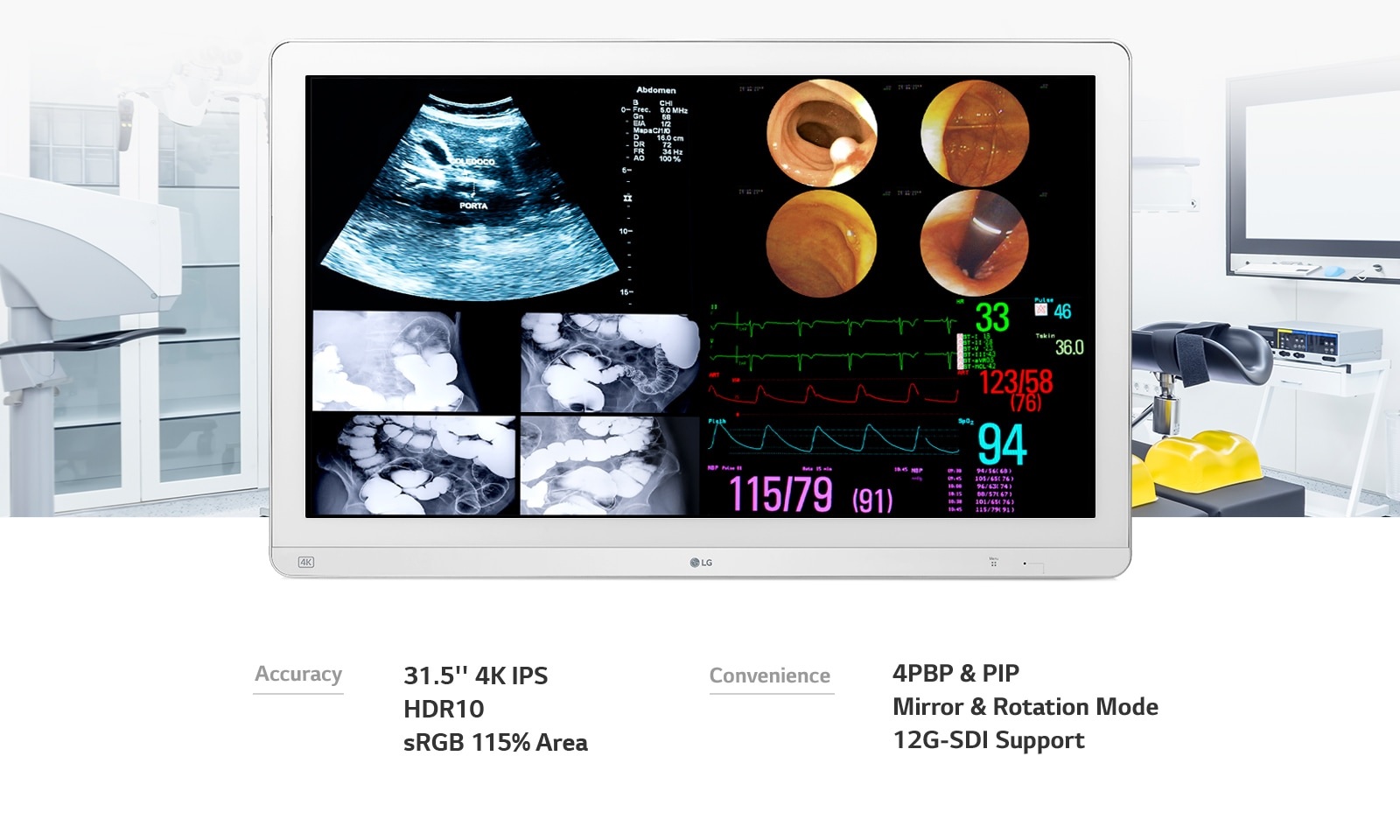

Multiple Signals on One Screen

PBP, PIP & 12G-SDI Support

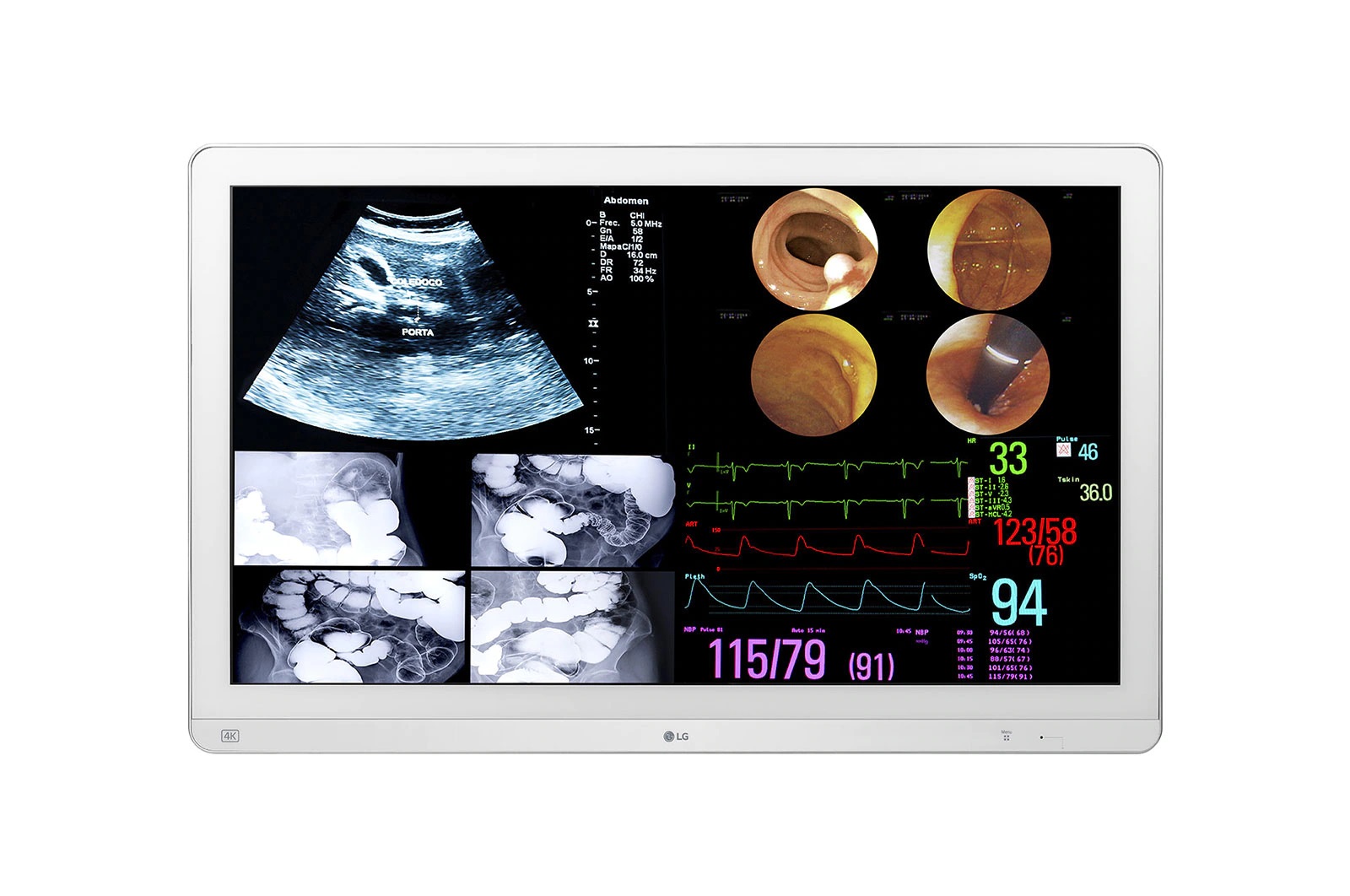

The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

12G-SDI Support

The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation

Find the Perfect Operating View

The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Related links to "LG 32HL714S 31.5" 12G-SDI -4K Surgical Monitor"
DISPLAY Aspect Ratio 16:9 Backlight Dimming Technology Global... more
Specifications "LG 32HL714S 31.5" 12G-SDI -4K Surgical Monitor"


Aspect Ratio 16:9
Backlight Dimming Technology Global Dimming
Backlight Technology LED
Backlight Type Edge
Brightness (Min.) 650cd/m²
Brightness (Typ.) 800cd/m²
Brightness (Stabilization) 500cd/m²
Colour Bit 10bit
Colour Depth (Number of Colours) 1.07B
Colour Gamut (Typ.) sRGB 115% (Area),
sRGB over 99% (Coverage)
Contrast Ratio (Typ.) 1300:1
Contrast Ratio with DFC Mega
Panel Type IPS
Peak Brightness (Min.) 650cd/m² (Peak)
Peak Brightness (Typ.) 800cd/m² (Peak)
Pixel Pitch (H x V) 0.18159mm x 0.18159mm
Resolution 3840 x 2160
Response Time (GTG) 14ms (Off-setting), 5ms (Faster-setting)
Size (Inch) 31.5
Size (cm) 80.0051
Surface Treatment Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Viewing Angle (CR≥10) 178°(Right/Left), 178°(Up/Down)


Hot Key Yes (2keys)
Brightness stabilization Yes
Black Stabilizer Yes
Factory Calibration Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration Yes (True Color Pro)
DICOM Compliant Yes
Colour Temperature 6500K/7500K/9300K
Manual (5000K ~ 10000K)
Flicker safe Yes
HDR 10 Yes
HDR Effect Yes
OSD Language 17 Language
Picture Mode (SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Rotation & Mirror Mode Yes
Failover Input Switch Yes
Smart Energy Saving Yes
User Preset Yes
Super Resolution+ Yes
Uniformity Yes

SW Application

True Colour Pro Yes


3G-SDI Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)
12G-SDI Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)
DisplayPort Yes (in 1ea/out 1ea)
DP (HDCP Version) 2.2
DP (Max. Resolution at Hz) 3840 x 2160 at 60Hz
DP (H-Frequency) 30~135kHz
DP (V Frequency) 56~61Hz
DP Version 1.2
DVI Yes (1In / 1Out)
DVI (Max Resolution at Hz) 1920 x 1080 at 60Hz
DVI (H Frequency) 30~83kHz
DVI (V Frequency) 56~61Hz
HDMI Yes (1ea)
HDMI (HDCP Version) 2.2
HDMI (Max. Resolution at Hz) 3840 x 2160 at 60Hz
HDMI (H Frequency) 30~135kHz
HDMI (V Frequency) 56~61Hz
HDMI Version 2.0
RS-232 Yes (1ea)
USB Downstream Port Yes (1ea/ver2.0)
USB Upstream Port Yes (1ea/ver2.0)

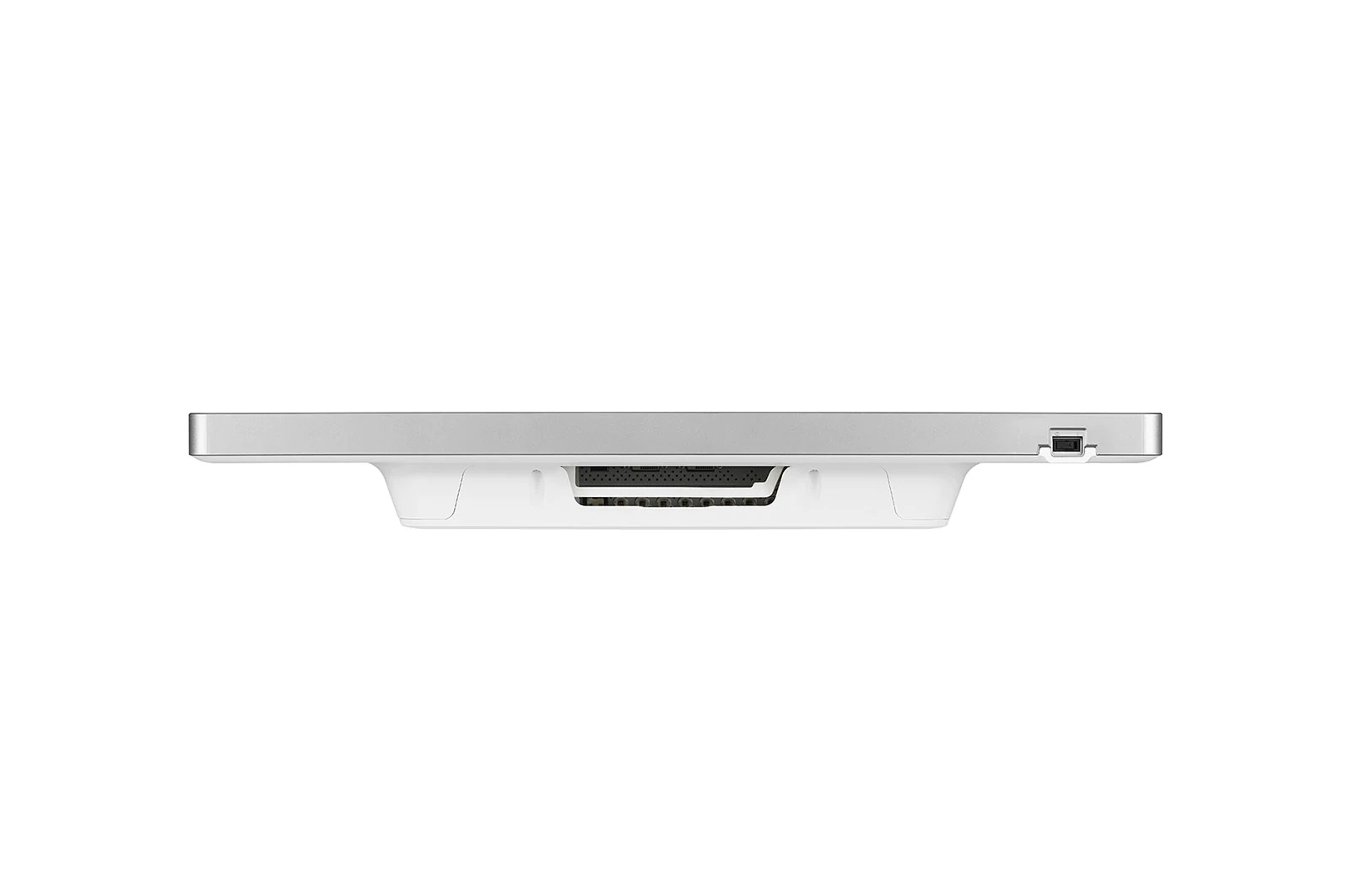

[Location] Bottom


AC Input 100-240Vac, 50/60Hz
DC Output 24V, 7.5A
Power Consumption (DC Off) Less than 0.3W
Power Consumption (Max.) 180W
Type External Power (Adapter)


Borderless Design Normal
Colour (Back Cover) White
Colour (Middle Cabinet) Silver
Display Position Adjustments No Stand
Down Height No Stand
Height Range No Stand
Machanical Power Switch Yes
OneClick Stand No Stand
Pivot No Stand
Swivel No Stand
Tilt No Stand

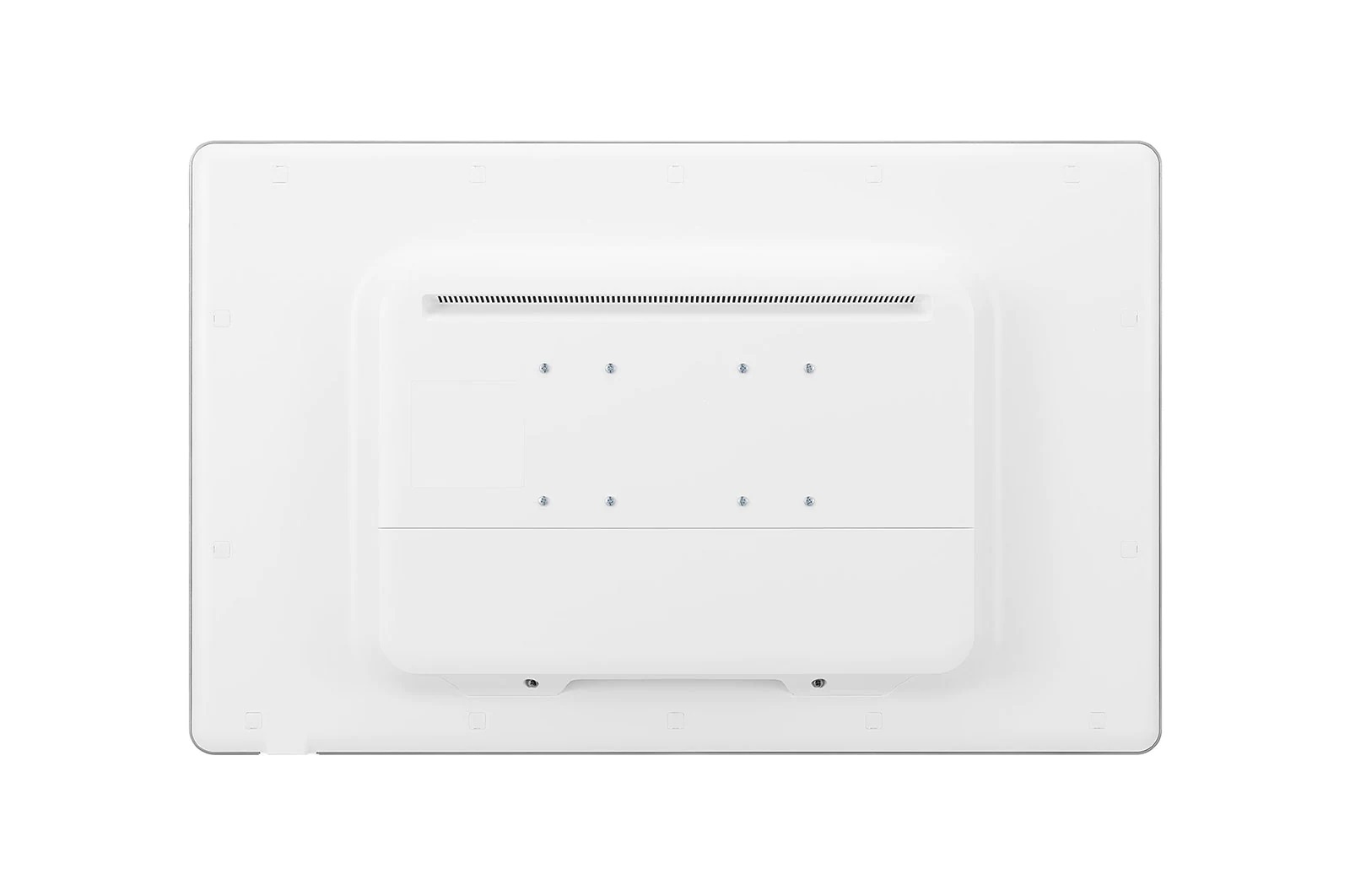

Wall Mount Size 200 x 100mm/100 x 100mm


Dimension in Shiping (W x H x D) 883 x 599 x 200 mm
Dimension with Stand (W x H x D) No Stand
Dimension without Stand (W x H x D) 764.6 x 480.8 x 94.4 mm
Pallet Stuffing (20ft/40ft/40ft HC) 216EA/405EA/495EA
Weight in Shipping 18.5kg (40.8lb)
Weight with Stand No Stand
Weight without Stand 13.5kg (29.8lb)


IEC (IEC 60601-1 / IEC 60601-1-2) Yes
EN (EN 60601-1 / EN 60601-1-2) Yes
IEC (IEC 60950-1 / IEC 55032, 55024) Yes
EN (EN 60950-1 / EN 55032, 55024) Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) Yes
FCC (FCC part 15 Class A) Yes
FDA Registration (Class I)
ISO13485 Yes
RoHS Yes
IP (Front/Except for front) IP35/IP32
Vandal-proof IK06


Adapter Yes
Adapter (Colour) White
Calibration Report (Paper) Yes
Display Port Yes
Display Port (Colour/Length) Black/1.8m
HDMI (Colour/Length) Black/1.8m
Power Cord Yes
Power Cord (Colour/Length) White/1.5m


time/years 3
3 (10,000hr)
