Barco MDSC-8255 LED 55" 4K Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Ready to ship today,
Delivery time appr. 1-3 workdays

  • SW10303
4K UHD large-screen surgical display 55-inch wide-screen color LCD with Quad Full... more
Product information "Barco MDSC-8255 LED 55" 4K Surgical Monitor"

4K UHD large-screen surgical display

  • 55-inch wide-screen color LCD with Quad Full HD resolution
  • Wide viewing angle
  • Advanced image processing algorithms
  • BT.2020 compatible
  • 12G-SDI and Quad-link 3G-SDI signals accepted

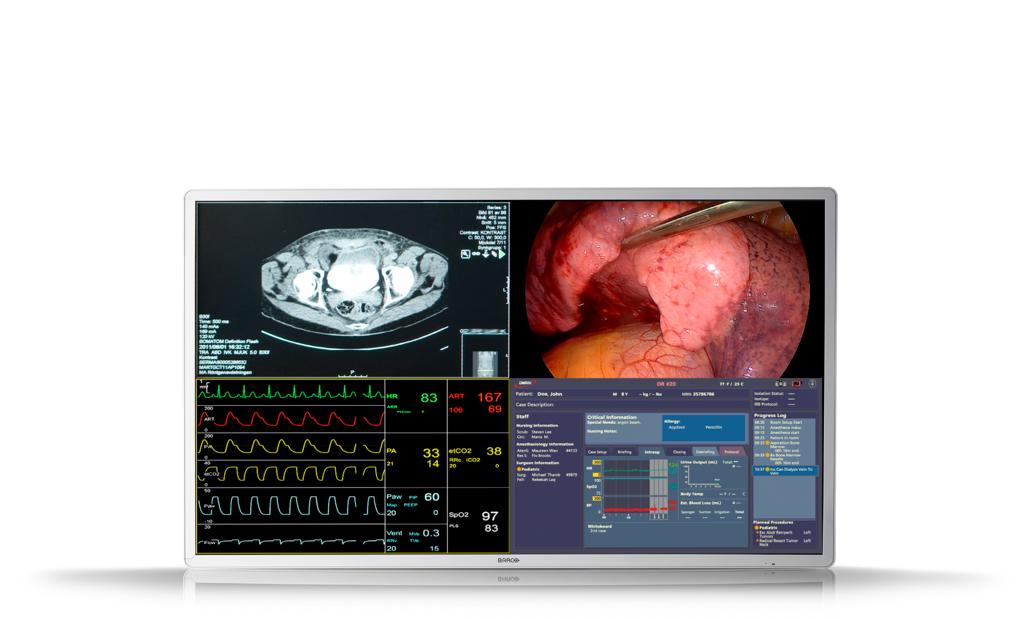

Barco’s MDSC-8255 is a 55-inch surgical display purpose-built for ultra-high resolution, multi-image viewing in the digital operating room. Thanks to its high quality video performance and lightweight housing with shallow depth and thin bezel, it’s the ideal complement of any advanced video distribution system in the OR.

Large-screen 4K UHD resolution display for referral imaging

A future-proof choice for referral imaging in the OR, the MDSC-8255 can present information previously shown on four 27” monitors on one large screen, with all four images in full HD. Thanks to the integrated 4K decoder (optional) it offers seamless integration with Barco's Nexxis video-over-IP solution.

Wall-mount flexibility

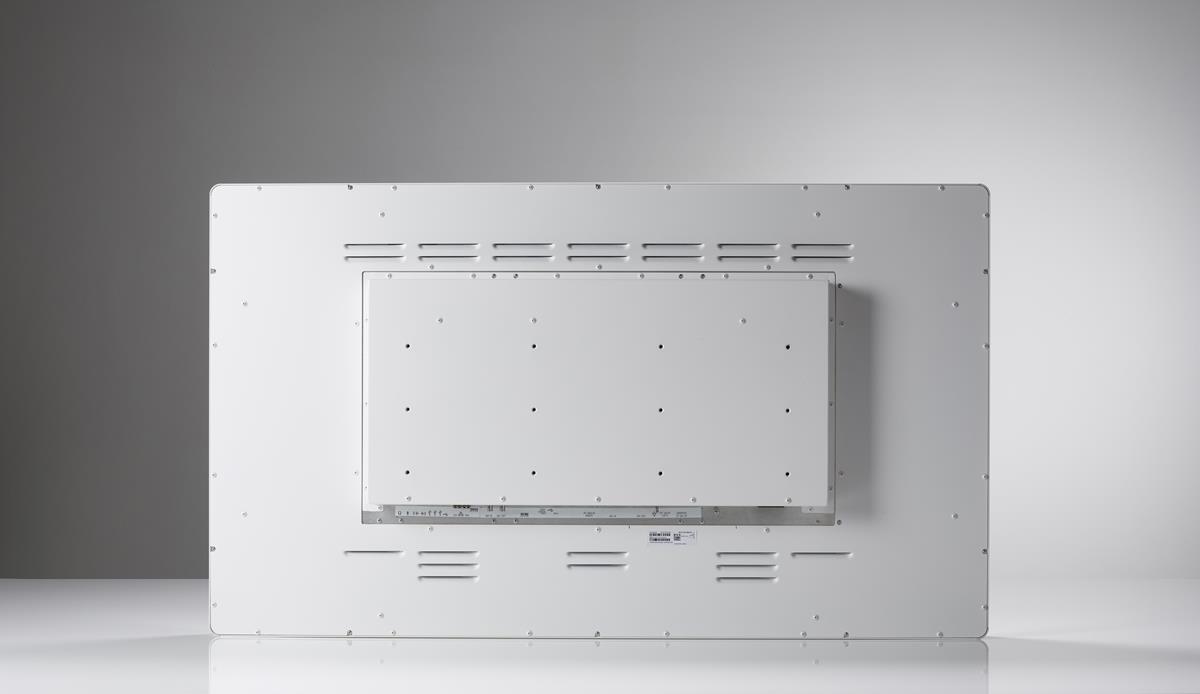

With its protective front glass, shallow depth, thin bezel and light weight the MDSC-8255 is perfect for wall mounting.

Delivering image quality on large screens

Color-calibrated, artifact free images in 4K resolution: the MDSC-8255 presents surgeons with accurate, realistic images and excellent depth perception. Advanced video processing features and noise reduction algorithms, and a full 10-bit image processing chain make this display ideal for consultation of any kind of medical referral images inside the OR.

Related links to "Barco MDSC-8255 LED 55" 4K Surgical Monitor"
Available downloads:
Display technology TFT AM LCD / IPS technology / LED backlight Active screen size... more
Specifications "Barco MDSC-8255 LED 55" 4K Surgical Monitor"
Display technology TFT AM LCD / IPS technology / LED backlight
Active screen size (diagonal) 54,6" / 1388 mm
Active screen size (H x V) 1210 x 640 mm
Aspect ratio 16:9
Resolution 3840 x 2160
Pixel pitch 0.315 mm
Color support 1073 million (10-bit)
Color calibration ITU-709, DCI-P3, BT.2020
Viewing angle 178° Hor / 178° Ver
Brightness Max: 500 cd/m² (typ.)
@6500K : 300 cd/m2 stabilized (typ.)
Contrast ratio 1100:1 (max.)
Response time Gray-to-Gray = 8 msec (typ.)
White point Calibrated: 5600K, 6500K, 7600K, 9300K
Gamma curve Native, 1.8, Video, 2.2, 2.4, DICOM
Front protection screen Scratch-resistant 2-side AR glass

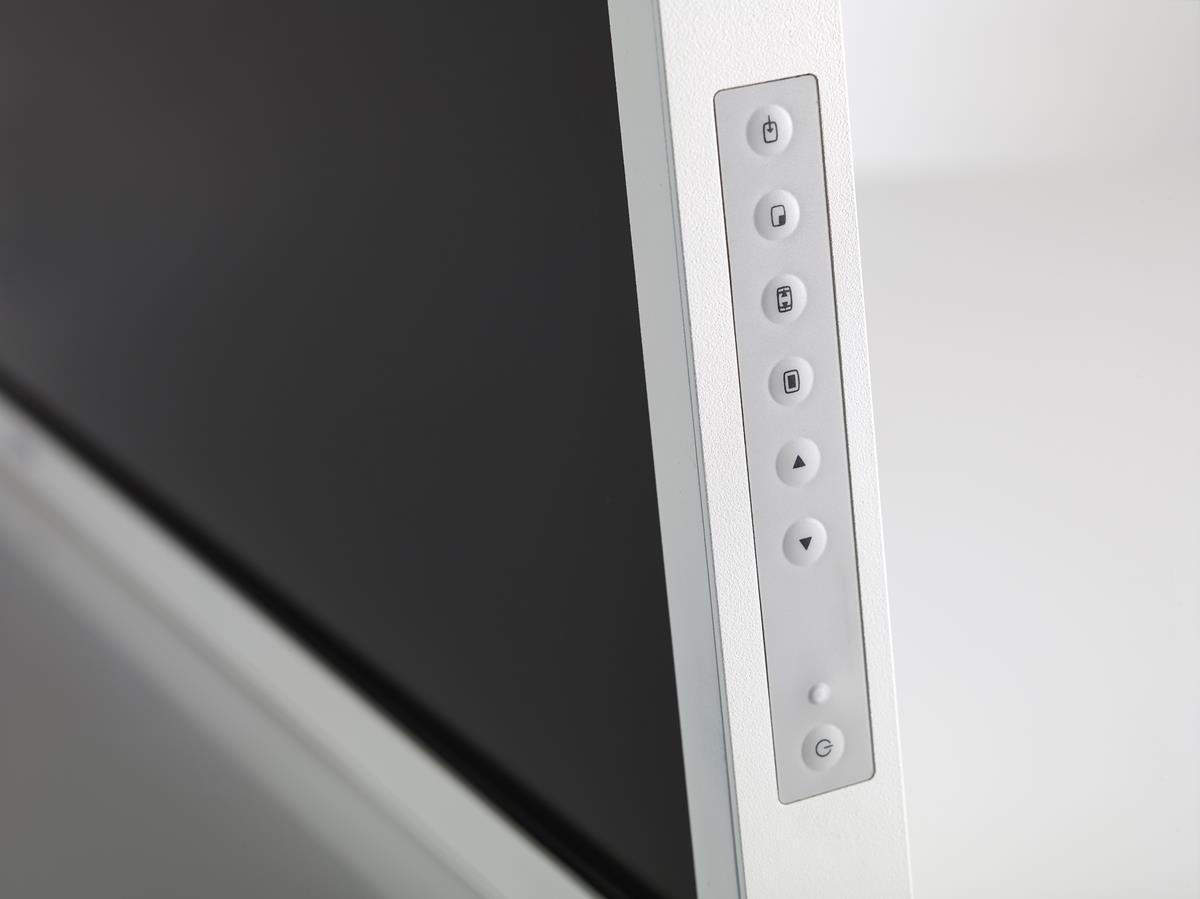

Keyboard Membrane keyboard on side
Video inputs MDSC-8255 LED
4K-UHD input selectable among:
1x DP 1.1 up to 3840 x 2160 @25Hz/30Hz
2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz
1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz
2x HDMI 2.0 up to 3840 x 2160 @50Hz/60Hz

FHD input (upscaled to UHD):
1x DVI
1x 3G-SDI
Video outputs MDSC-8255 LED
1x 3G-SDI (input loop through)
1x DVI (screen clone downscaled to FHD)
Features Video processing optimized for low latency and noise reduction, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Legacy signals accepted, DC Power output
Remote control MDSC-8255 LED
micro-USB port for FW download & control protocol
Power consumption MDSC-8255 LED: 144W (max)/ 90 ÷ 264 Vac 50Hz/60Hz
Dimensions 1259 x 733 x 87 mm (49.5 x 28.8 x 3.4 in)
Net weight display MDSC-8255 LED: 33.2 kg (73.1 lbs)
Net weight packaged MDSC-8255 LED: 39.7 kg (87.5 lbs)
Mounting standard VESA 200x200 & 600x200 mm
Temperature Operating: 0° ÷ 35°
Storage: -20° ÷60°
Humidity Operating: 10% ÷ 90% R.H.
Storage: 5% ÷ 90% R.H.
Regulation Compliance • ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014
• CAN/CSA-C22.2 No. 60601-1 (2014)
• IEC 60601-1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012
• EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014
• Electromagnetic Compatibility: EMC Medical EMC Standards: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 Part 15 Subpart B (Class B)
• GB17625.1-2012; GB4943.1-2011; GB/T9254-2008
• Approvals/Marking: CE, c-UL-us, DEMKO, CCC, INMETRO, EAC
• The products comply with the Safety and performance requirements of Regulation (EU) 2017/745 (MDR)
Protection rating IP20 (IP45 front side)
Warranty 3 years
Green compliance ROHS-3, REACH, WEEE
