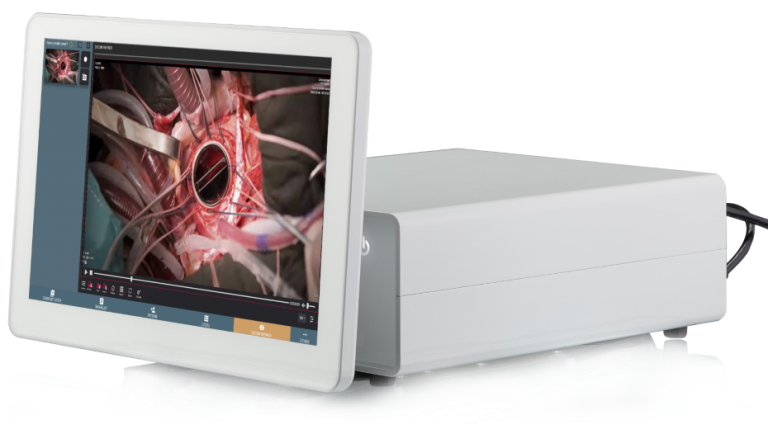

VideoStation Mini PC

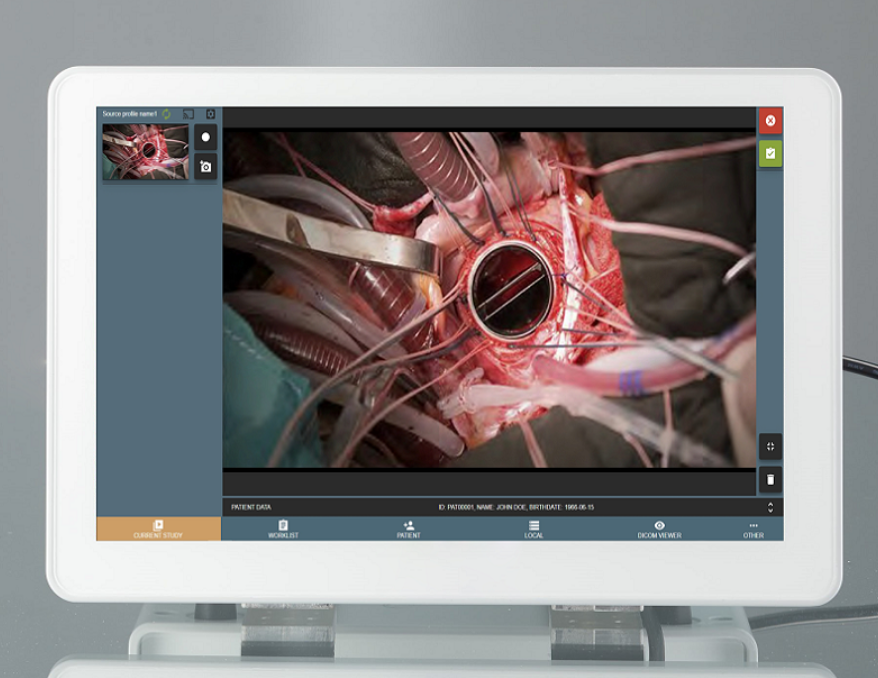

Intuitive user interface, simple, but very powerful medical video recording software controllable by touchscreen medical panel PC. Storing locally more than 125 hours of HD medical videos and up to 100.000 of still medical images.

VideoStation’s main medical video recording features:

• High-quality medical video recording into DICOM format by using MPEG2 and MPEG-4 AVC/H.264 compression;
• Record/take multiple low and high (full HD) quality medical video/snapshots during the surgery or other procedures;
• Live stream video by RTSP protocol during the procedure;
• Record, stream, play video and take snapshots at the same time;
• Record video/take images from multiple connected devices (special video card needed);
• Flexible patient data assignment: selecting already existing patient, manually entering the patient details or selecting from hospital DICOM worklist server;
• Possibility to start a new study recording, while other video/snapshots is in progress for saving to DICOM format or sending to DICOM archive;
• Review medical images/video during the surgery or other procedures;
• Trim the recorded video;
• Recorded studies can be stored locally, sent to the hospital DICOM archive (PACS server/VNA) or exported to other storage devices;
• View saved medical images/videos with integrated DICOM Viewer.

Hardware Specification

General Description

• PC developed for permanent 24/7 operation in the medical environment, modular housing optimized for easy component exchange
• Special zone cooling system developed by ACL without any fans or mechanically moving parts and maintenance-free

Ambient Conditions (Operating/Storage)

• Temperature: 5 to 40°C / 0 to 60°C
• Relative humidity: 10 to 90%, non-condensing / 5 to 90%, non-condensing
• Pressure: 105 to 70 kPa or max. 10,000ft altitude / 105 to 19kPa or max. 40,000ft altitude

Supplementary Standards

• DIN EN 60601-1:2013 (Ed.3.1) Medical electrical equipment - General requirements for basic safety and essential performance
• DIN EN 60601-1-2:2016 (Ed. 4) Medical electrical equipment - Collateral standard - Electromagnetic compatibility - Requirements and tests

Standard Equipment

• Lacquering: RAL
• Protective pane: extremly scrath-proof aluminosilicate glas with AR-Coating
• Dimensions: (W x H x D) approx. 254 x 181 x 321 mm, plus 15 mm frame circumferential
• Weight: 5.6 kg (without accessories and mounting kit)
• Mounting: VESA-75
• Power supply: external power supply
• Frontal operating panel: on/off button, power supply button

Computer Module

• Mainboard: long-term availability industrial mainboard, mITX standard for easy mainboard module replacement and system upgrades
• Chipset: Intel® Kabylake generation, chipset is integrated into the CPU
• CPU: Intel® Core™ i5, 7th generation
• RAM: Up to 32 GB
• Mass storage: m.2SATA up to 1 TB
• Graphics: onboard graphics, Intel® HD Graphics GT-Serie

Display Module

• Colour depth: 16,777,216 colors
• Native resolution: 1,280 x 800 pixel
• Contrast: 600:1
• Brightness 300 cd/m²
• Viewing angle 178°/178°
• Touch screen PCAP touch screen, bonded

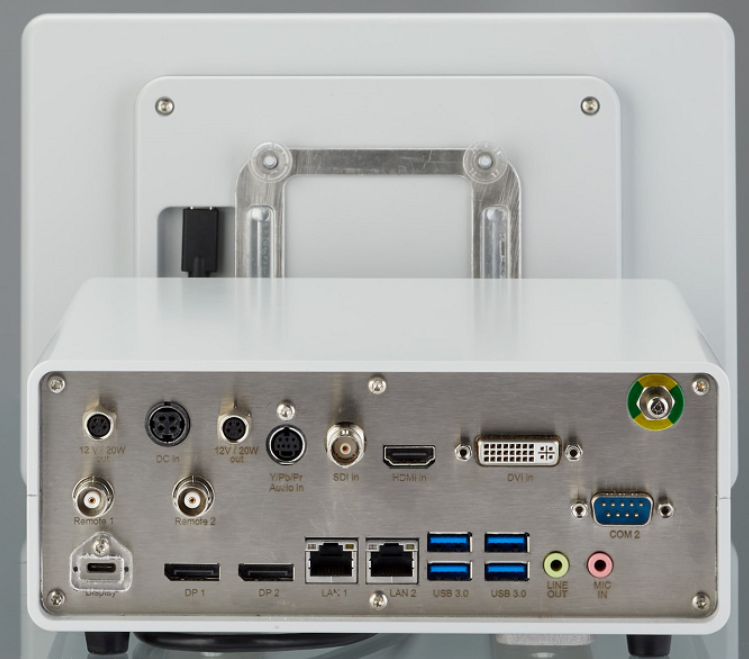

Interfaces

• Ethernet: 2 x 10/100/1.000MBit via RJ45-Connector (not decoupled)
• Serial interfaces: 1 x RS232 via 9-pole D-Sub (not decoupled)
• USB: 4 x USB 3.0, 2 x RJ45, 2 x DP, 1 x RS232, 2 x Remote, 2 x 12V-20W, 1 x USB-C
• Additional screen: 1 x Display Port, 1 x HDMI
